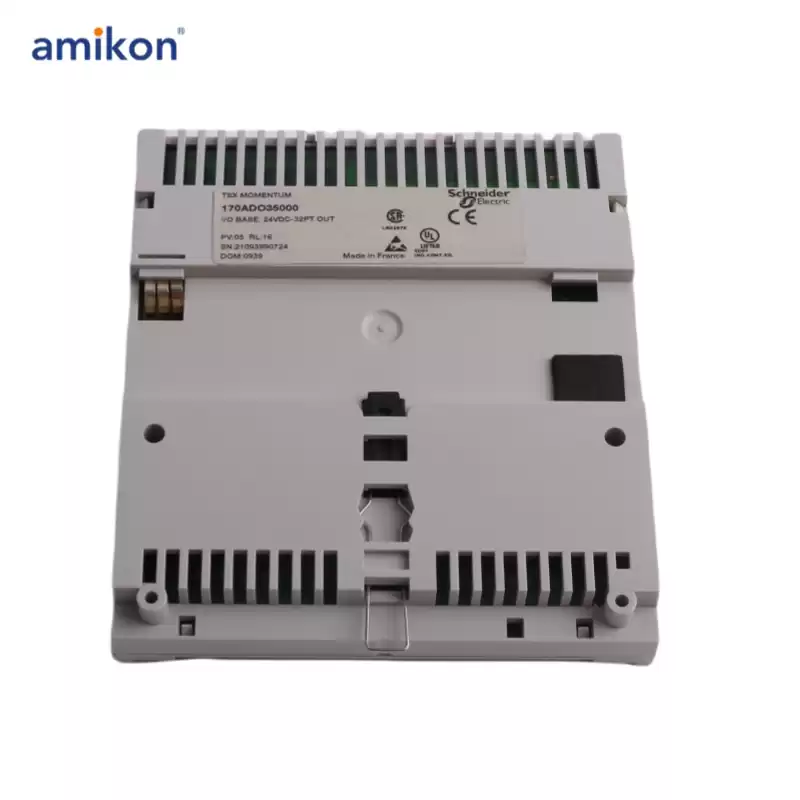

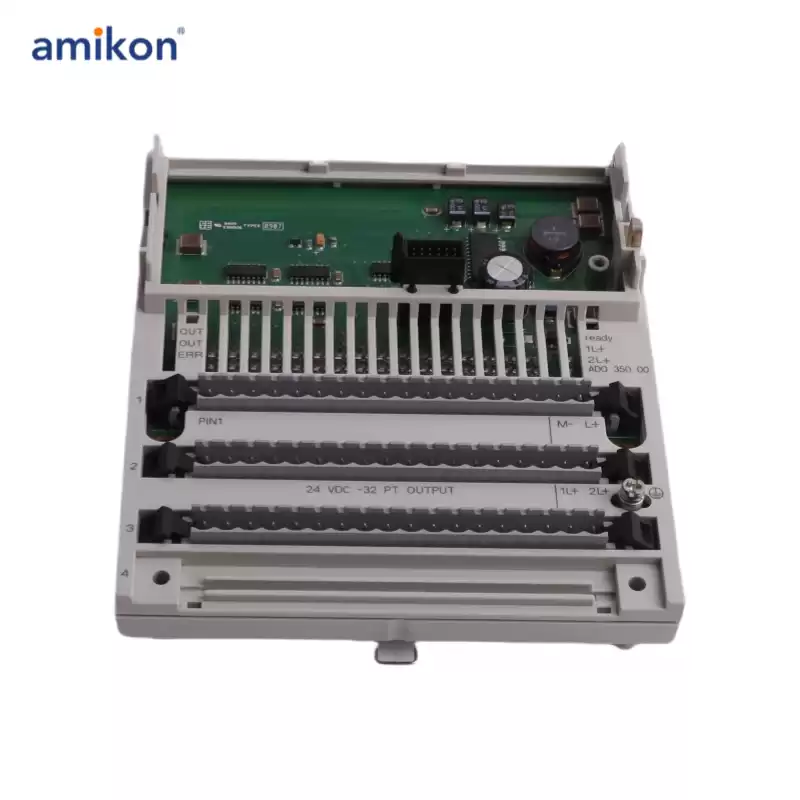

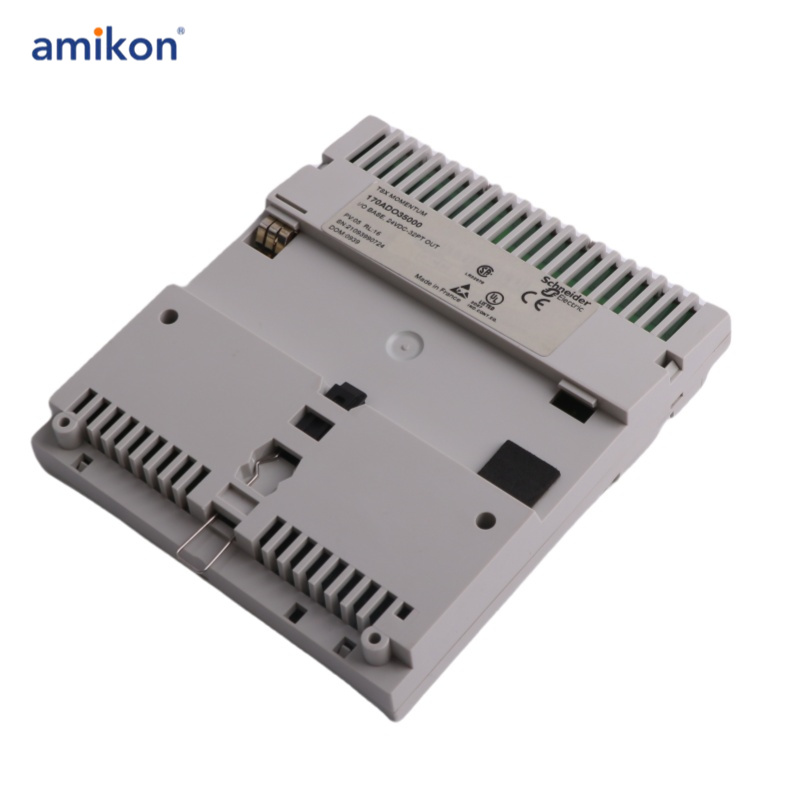

170ADO35000 Schneider Discrete Output Module

Main

Range of Product

Modicon Momentum automation platform

Product or Component Type

Discrete output base DC

Group of channels

2 groups of 16 outputs

Discrete output number

32

Discrete output type

Solid state switch

Discrete output voltage

24 V DC

Current per channel

0.5 A

Short-circuit protection

Outputs electronically protected

Protective treatment

TC

Complementary

[Ue] rated operational voltage

24 V DC

Discrete output current

16 A per module

8 A per group

Maximum leakage current

1 mA 24 V DC

Surge current

5 A 1 ms

Maximum voltage drop

<0.5 V 0.5 A at state 1

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.17 in (5.5 cm)

Package 1 Width

7.09 in (18.0 cm)

Package 1 Length

10.24 in (26.0 cm)

Package 1 Weight

14.2 oz (403.0 g)

Unit Type of Package 2

S03

Number of Units in Package 2

10

Package 2 Height

11.81 in (30 cm)

Package 2 Width

11.81 in (30 cm)

Package 2 Length

15.75 in (40 cm)
