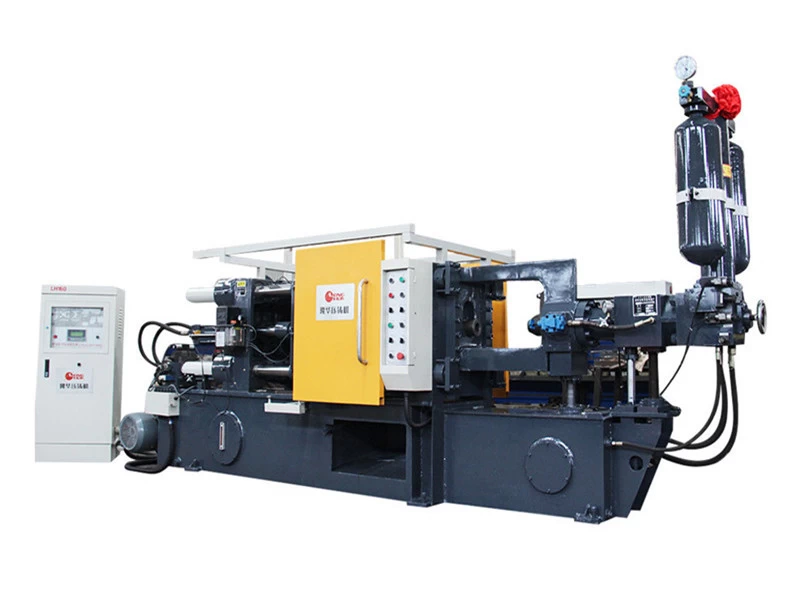

High Pressure Aluminum Casting Making Machine
Parameters of cold chamber die casting machine(170T)
|
Items
|
Unit
|
Specification
|
|
Hydraulic Working Pressure
|
MPa
|
7
|
|
Clamping Force
|
KN
|
1700
|
|
Space Between Tie Bars
|
mm
|
460*460
|
|
Tie Bar Diameter
|
mm
|
80
|
|
Die Opening Stroke
|
mm
|
350
|
|
Injecction Force(intensify)
|
KN
|
220
|
|
Plunger launch distance
|
mm
|
120
|
|
Injection position
|
mm
|
0 -- 140
|
|
Plunger Diameter
|
mm
|
40----60
|
|
Injection Stroke
|
mm
|
320
|
|
Casting pressure (intensify)
|
MPa
|
143/92/64
|
|
Casting Fiange Protrusion
|
mm
|
10
|
|
Casting Fiange Diameter
|
mm
|
110
|
|
(40Mpa) Max Casting Area Under 40Mpa
|
CM2
|
400
|
|
lnjection Weight(Al)
|
Kg
|
1.8
|
|
Die Height(Min--Max)
|
mm
|
200～550
|
|
Ejector Force
|
KN
|
100
|
|
Ejector Steoke
|
mm
|
80
|
|
Motor Capacity
|
Kw
|
11
|
|
Machine Dimensions (L*W*H)
|
m
|
5.5*1.6*2.05
|
|
Referential Machine Weight For Uplifting
|
T
|
5.8
|
|
Oil Tank Capacity
|
L
|
300
|
WE reserve the right to make any technical improvement without further notice
Hydraulic system：
1. Double proportional control (electric regulation of pressure and flow, with a multi-level pressure and Speed control as well as low pressure die close protection functions).
2. Dual circuit design (air injection and pressure building are separately designed without mutual interference and fault occurrence).
Packaging and delivery of die casting machines：
Our company has been in business for 37 years, and containers usually take the goods directly from our factory to the port of Shanghai. Our packing is standard packing, including plastic film and wooden case.
Die casting machine products:
Die-casting products are also known as die-casting pieces. Below is the picture of our machine die-cast products, including: LED lamp shell, electric housing, radiator, high voltage cable card, door handle, art knife case and so on

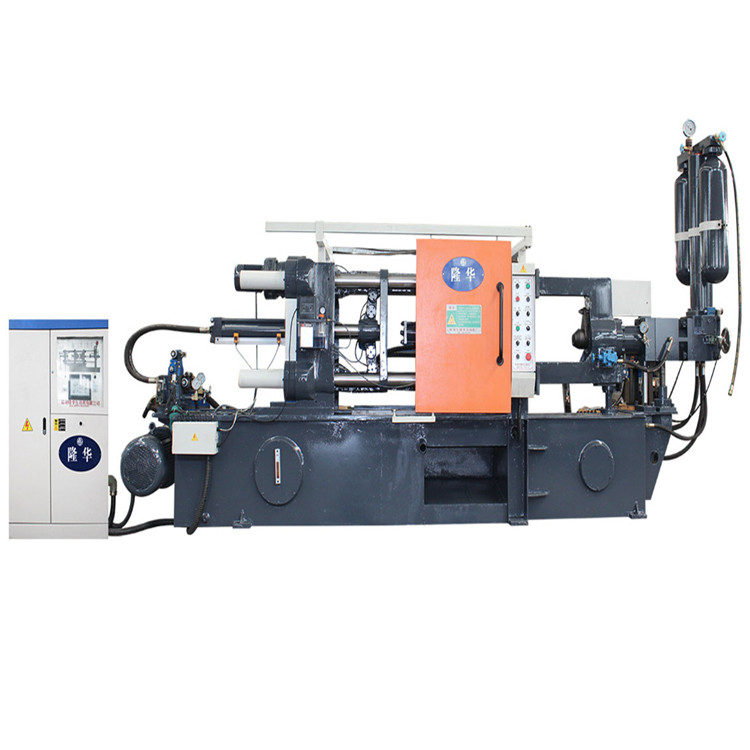

Auto die casting machine composition
