36 Cell
|
170-180W
|
19.2%
|
0~+2W
|
|

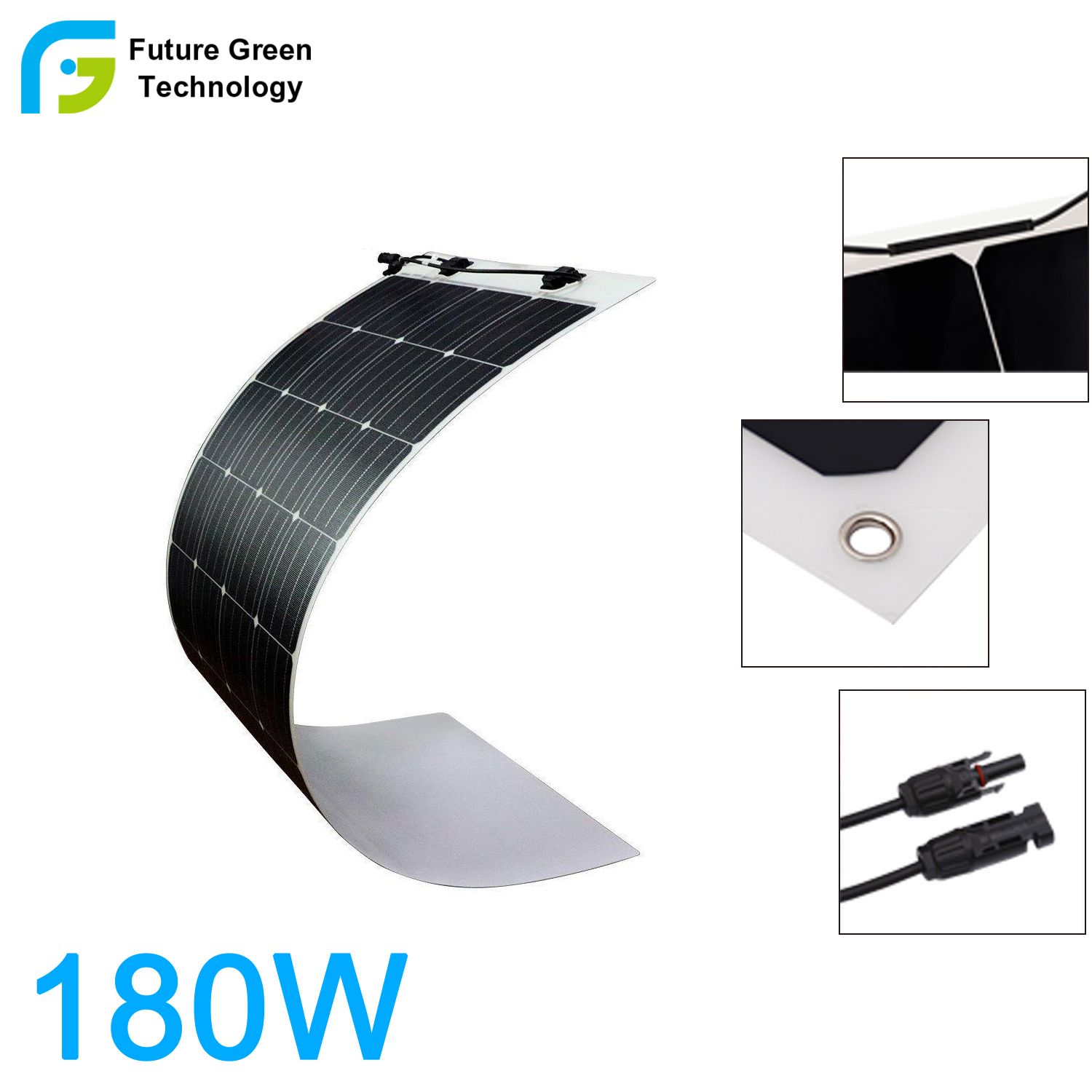

Monocrystalline Module
|
Power output range
|
Maximum Efficiency
|
Power output tolerance
|
|
Electrical Characteristics
|
|
|
Product
code
|
FL-180W/18V
|
|
Maximum power(Pmax)
|
180W
|
|
Voltage at Pmax(Vmp)
|
16.8
|
|
Current at Pmax(Imp)
|
10.71
|
|
Open-circuit voltage(Voc)
|
20.3
|
|
Short -circuit current(Isc)
|
11.57
|
|
Power temperature coefficient
|
-0.38%/℃
|
|
Voltage temperature coefficient
|
-0.27%/℃
|
|
Cirrent temperature coefficient
|
+0.05%/℃
|
|
Cells Efficiency(%)
|
23.70%
|
|
The maximum system voltage
|
45VDC(IEC)
|
|
Output power tolerance
|
±3%
|
|
Cells
|
USA
A grade solar cell
|
|

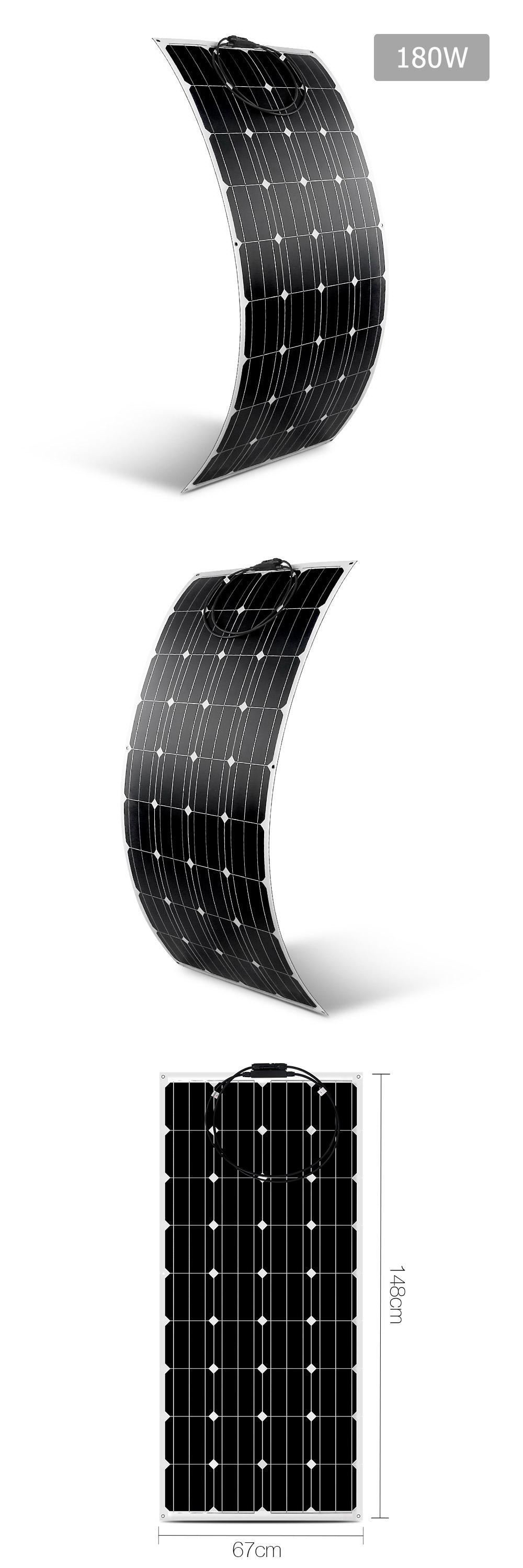

No.of cells and connections Module dimension
|
36(4X9)
|
|
Weight
|
1480*670*3mm
|
|
Certification
|
3.15KG
CE,RoHS,ISO
|
Quality assurance:
1,All the solar cells A grade from Taiwan (Sunpower from USA)
2,TPT+EVA+PET
3,Warranty:3-5 years
4,Useing Life: 10-20 years
5,CE ROHS Certificates
Our Services:
Samples and OEM, Warranty and After-Sale Service:
Sample can be provided for quality testing
-
OEM Welcomed
-
Warranty:5 years for solar panel, 2 years for controller/inverter/battery.
-
After-Sale Service: 24 Hour-Hot Line for Consultancy and Technical Support
