Technical Specifications for 1734-AENTR
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Operating Temperature
|
-20 to 60
|
|
Part Number/Catalog No.
|
1734-AENTR
|
Input Voltage
|
24 Volts DC
|
|
Module Type
|
Servo Drive
|
Isolation Voltage
|
50 Volts
|
|
Manufacture Year
|
2021
|
Power Consumption
|
10.4 Watts
|
|
Product Package
|
Original Package
|
UPC
|
10612598350145
|
About 1734-AENTR
|

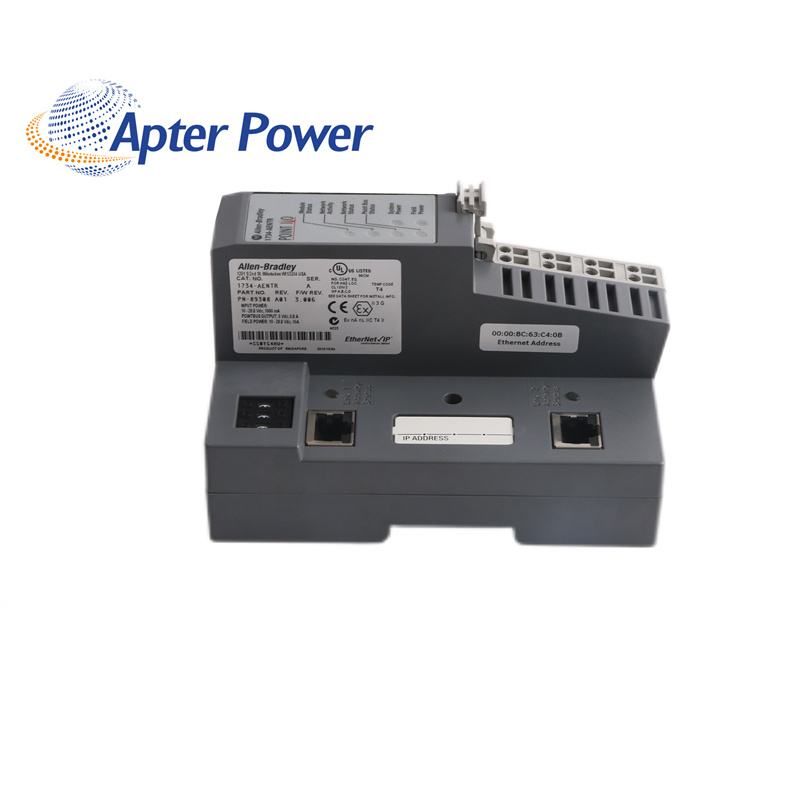

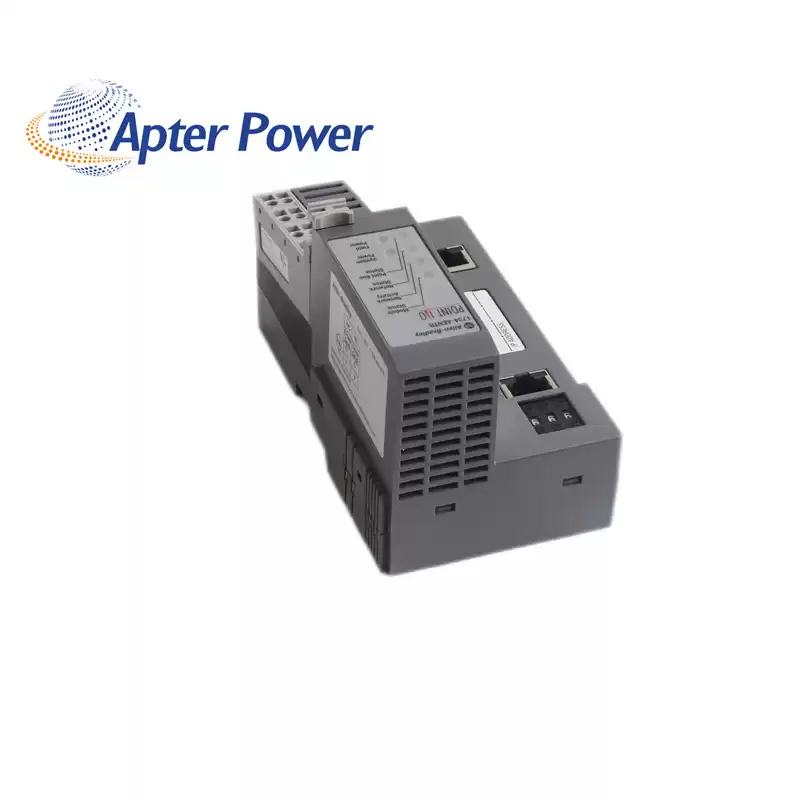

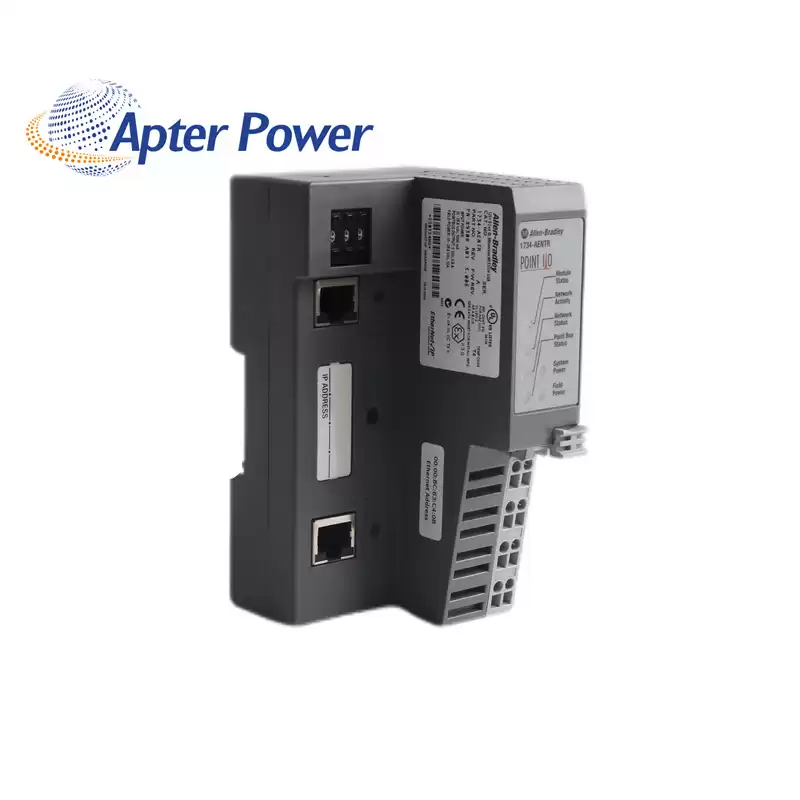

The 1734-AENTR I/O is a 2 port Ethernet adapter provides Ethernet/IP network connectivity at a rate of 10 to 100 Mbits/s, half or full-duplex. It comes with 2 ports for pass-through, Category 5 RJ-45 connectors that are used to support ring or daisy chain/linear networks, and the existing tree and star network topologies. These Ethernet ports are configured as embedded Switches. The adapter is part of the 1734 series of 2-port communications adapters for POINT I/O modules. It uses messages encapsulated within the standard TCP/UDP/IP protocol.
The 1734-AENTR supports TCP/UDP/IP protocol with physical connection established using Category 5 or Category 6 cable. This adapter supports 10/100 Mbit transmission speed with auto-negotiation function.The 1734-AENTR is a dual Ethernet POINT I/O communication module that is used to interface a POINT I/O rack to the central controller in the Ethernet I/P network. This adapter is capable of being implemented in Ring, Star and Tree Topology and is powered by an External 24VDC supply.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
