Technical Specifications for 1734-IB8
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Input Filter Time
|
0.5 ms
|
|
Part Number/Catalog No.
|
1734-IB8
|
Input Current range
|
2-5mA
|
|
Module Type
|
Digital Input Module
|
Inputs
|
8
|
|
Manufacture Year
|
2021
|
Input Voltage range
|
10-28.8VDC
|
|
Product Package
|
Original Package
|
UPC
|
10612598308573
|

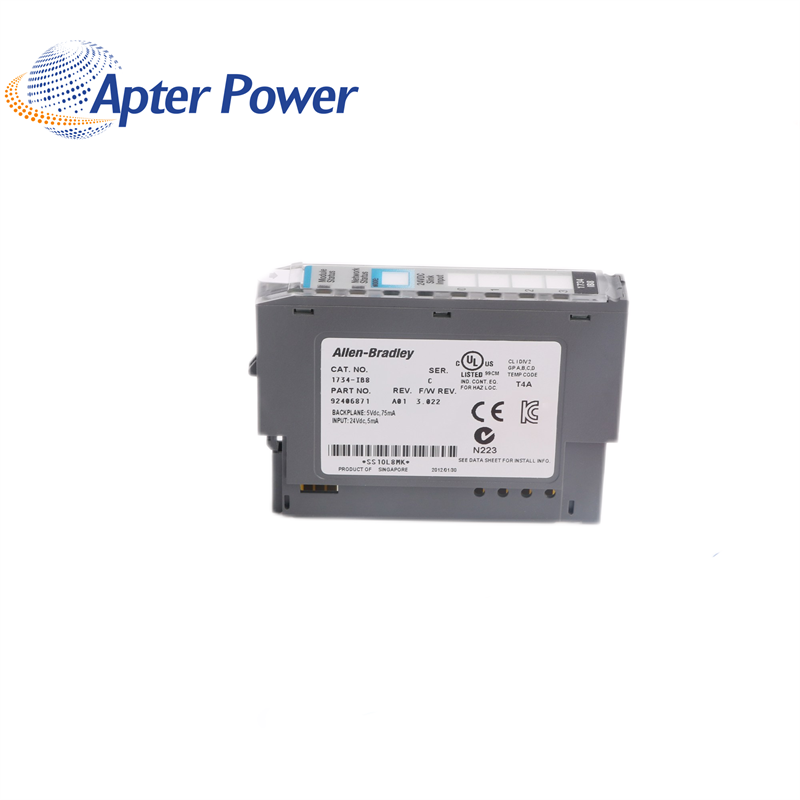

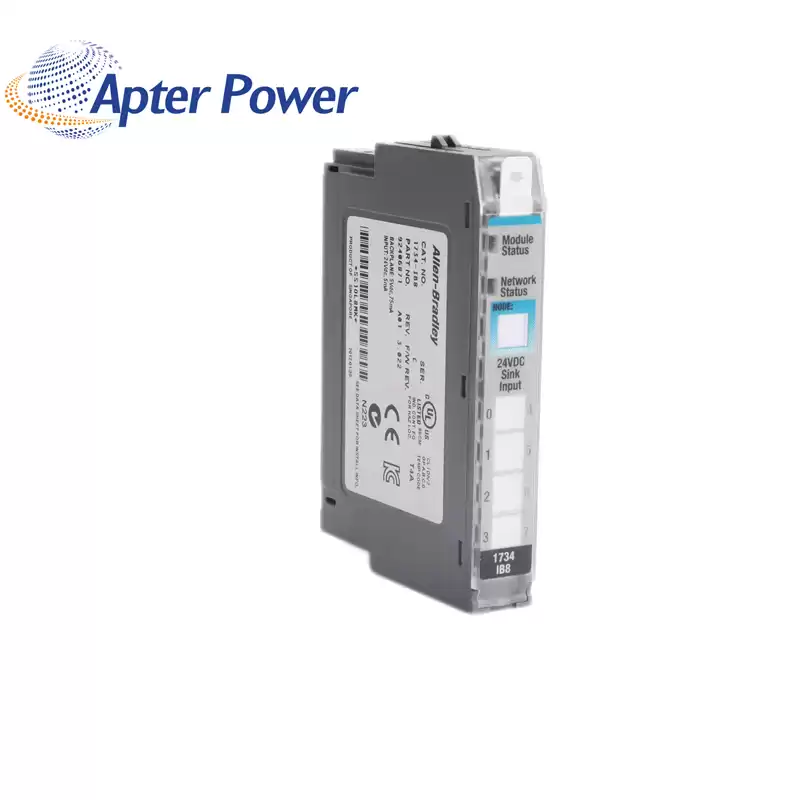

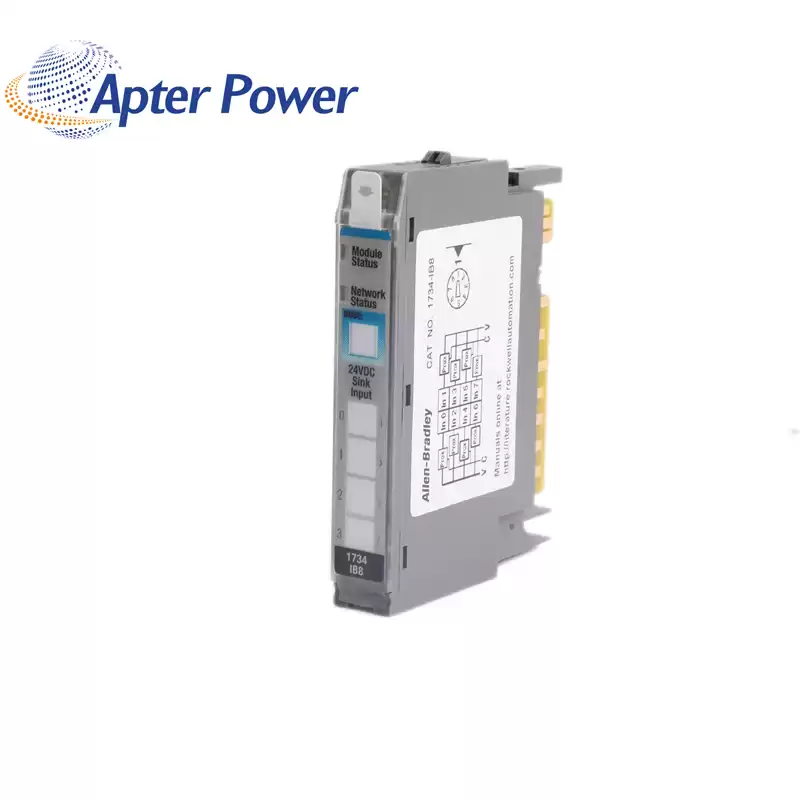

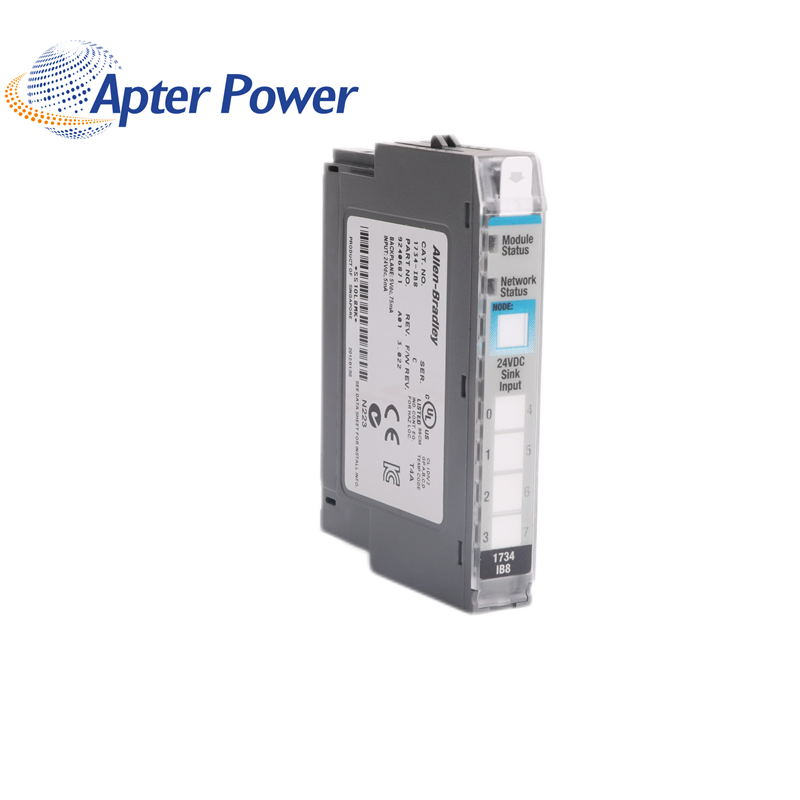

About 1734-IB8
|
The 1734-IB8 requires 0.8 N-m or 7 pounds per inch of terminal base screw torque and a maximum POINT Bus current of 75 mA at 5 Volts DC. The isolation voltage for this module is 50 Volts DC. This voltage has been tested at a maximum voltage of 2500 Volts DC for 60 seconds. The 1734-IB8 point I/O input module has an approximate weight of 32.3 grams and a height of 56 millimeters, a width of 12 millimeters, and a length of 75.5 millimeters.
The 1734-IB8 point I/O input module comes with a locking mechanism and a side-in writable label. It also has removable terminal blocks, an undertaken I/O module, and a mounting base.The 1734-IB8 point I/O module can be installed on a mounting base that is installed on a DIN rail. This specific model has 8 inputs and it comes with 4 status indicators. It has a module status indicator, a network status indicator, and a 24 Volts DC sink input.The 1734-IB8 is installed with POINT I/O communication adapters. Series C 1734-IB8 module are also made compatible with DeviceNet and ProfiBus communication adapters.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
