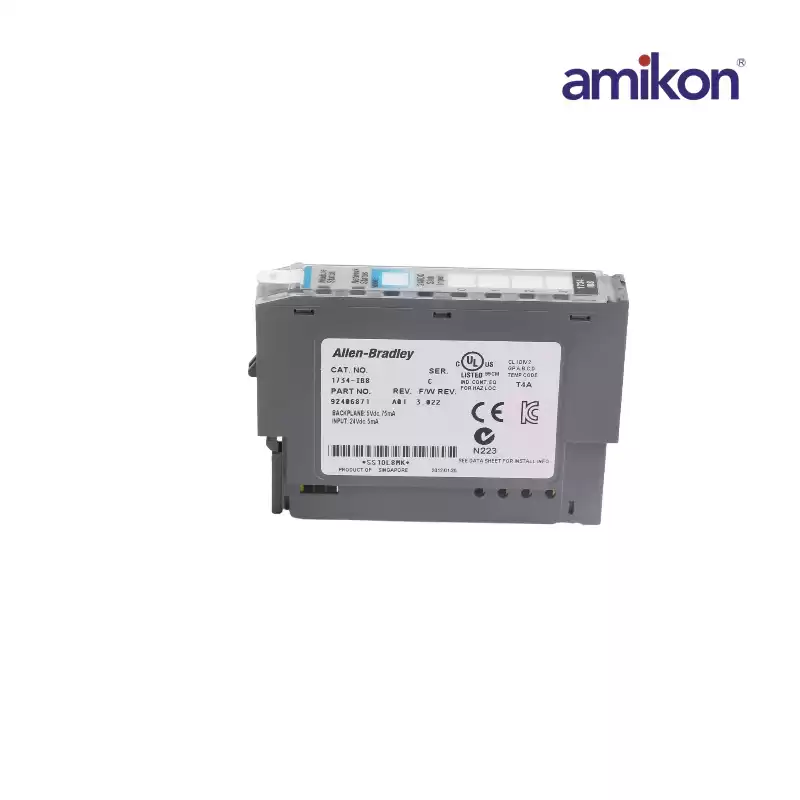

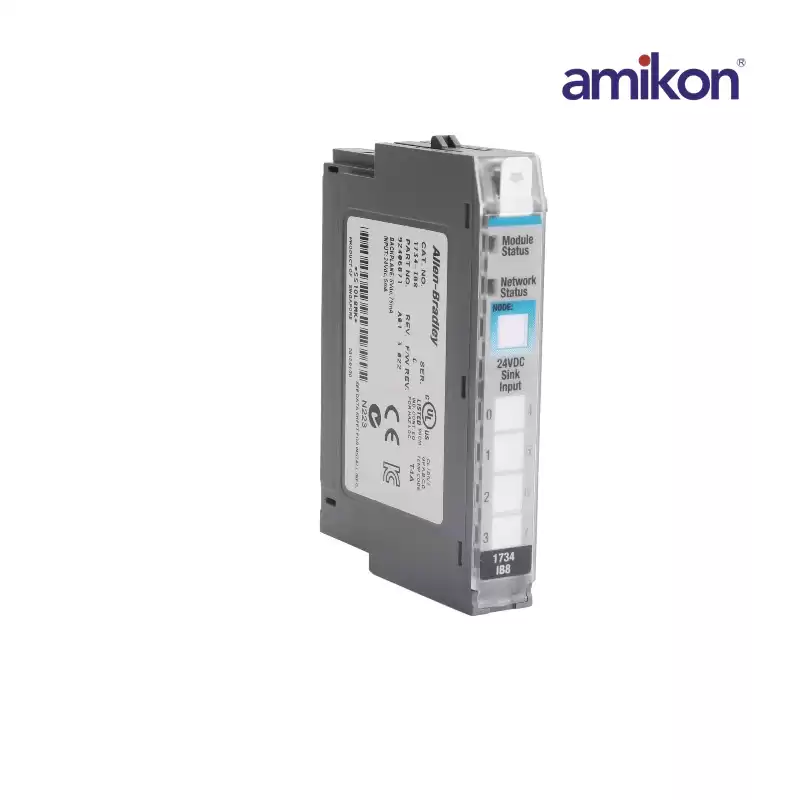

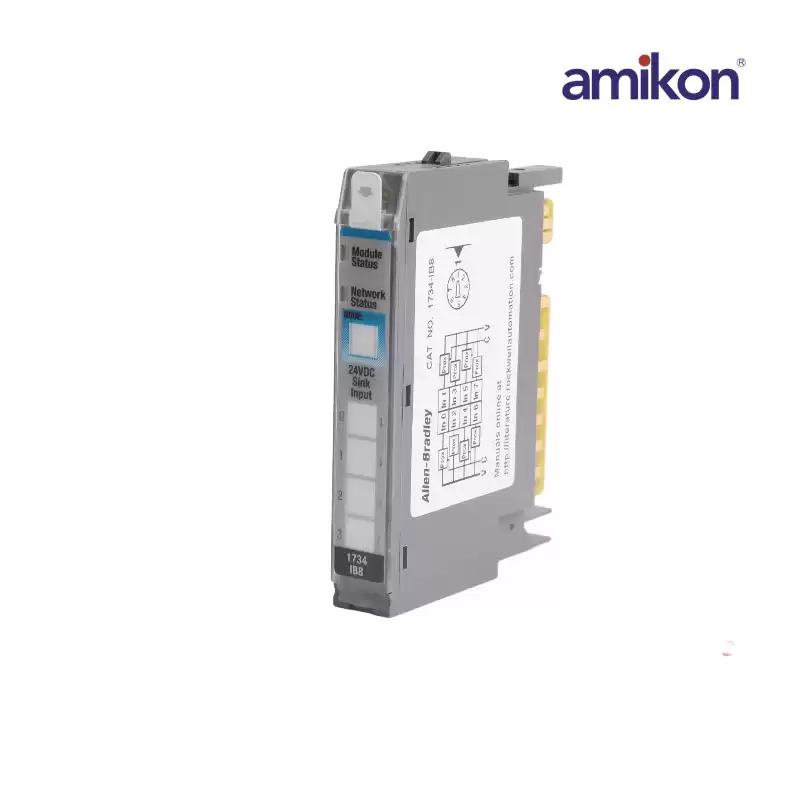

1734-IB8
|
|
Product Origin: USA
|
Manufacturer：AB
|
|
Dimension:1.1cmx5.5cmx7.6cm
|
Weight:0.04KG
|
|
Full Description: 1734-IB8 POINT Digital DC Input Module 24V DC 8 Channel Sink.
|
|
The 1734-IB8 requires 0.8 N-m or 7 pounds per inch of terminal base screw torque and a maximum POINT Bus current of 75 mA at 5 Volts DC. The isolation voltage for this module is 50 Volts DC. This voltage has been tested at a maximum voltage of 2500 Volts DC for 60 seconds. The 1734-IB8 point I/O input module has an approximate weight of 32.3 grams and a height of 56 millimeters, a width of 12 millimeters, and a length of 75.5 millimeters.
The 1734-IB8 point I/O input module comes with a locking mechanism and a side-in writable label. It also has removable terminal blocks, an undertaken I/O module, and a mounting base.The 1734-IB8 point I/O module can be installed on a mounting base that is installed on a DIN rail. This specific model has 8 inputs and it comes with 4 status indicators. It has a module status indicator, a network status indicator, and a 24 Volts DC sink input.The 1734-IB8 is installed with POINT I/O communication adapters. Series C 1734-IB8 module are also made compatible with DeviceNet and ProfiBus communication adapters.
|
