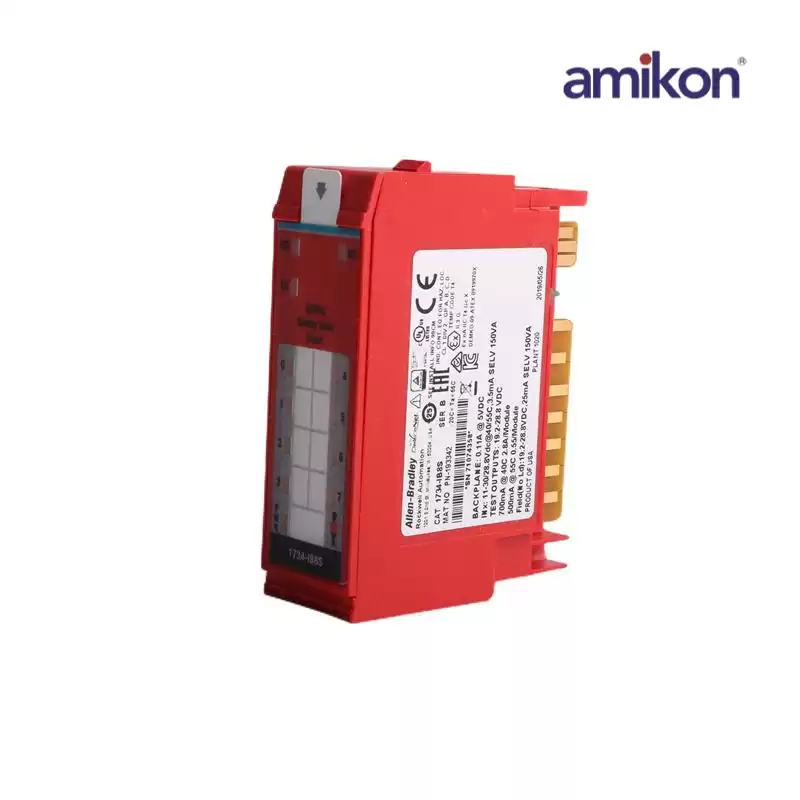

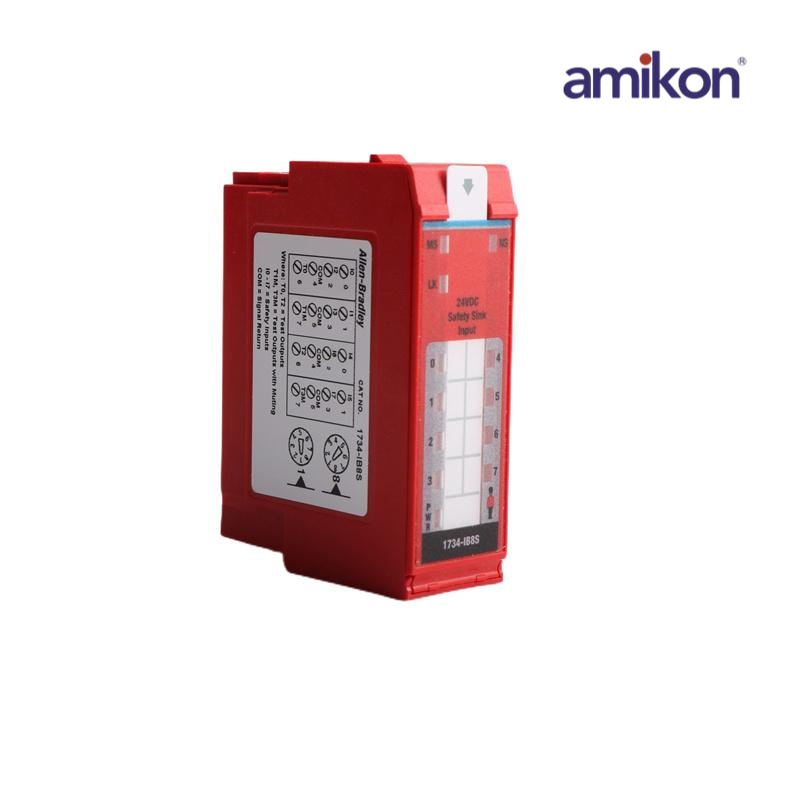

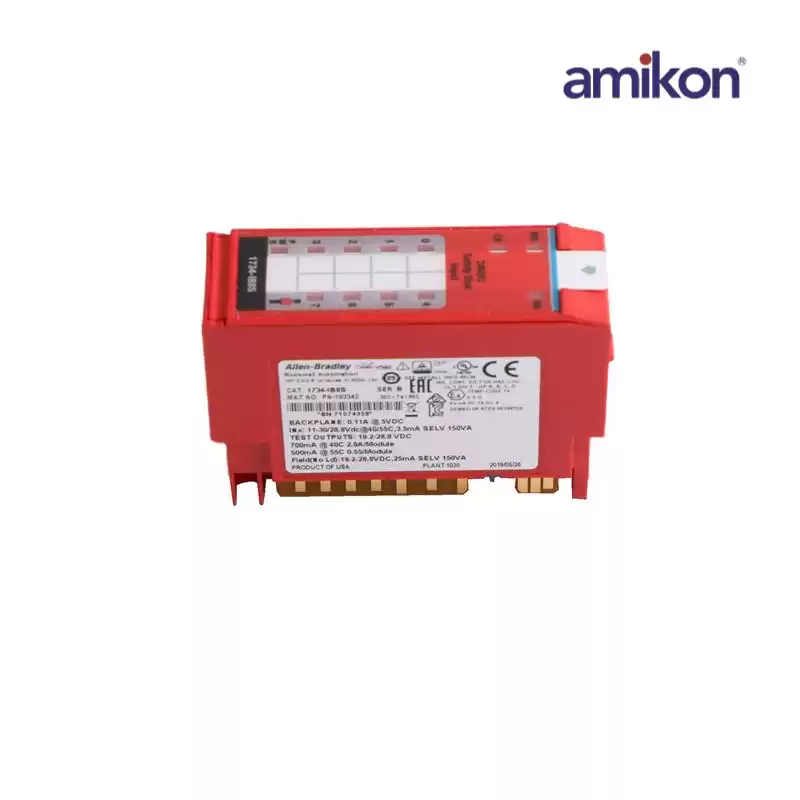

1734-IB8S
|
|
Dimensions ：
|
13.2cmx2.5cmx18cm
|
Weight：
|
0.24KG
|
|
The 1734-IB8S has a maximum thermal dissipation of 11.62 BTU/hour and it weighs 62.4 grams or 2.2 ounces. It has a nominal input voltage of 24 Volts DC, an input current maximum of 175 mA, and a 3.4 W maximum power dissipation. The 1734-IB8S works with SmartGuard, GuardLogix, and Compact GuardLogix controllers and it is used in POINT I/O platforms to administer CIP safety protocol extensions.
The 1734-IB8S measures 77 x 25 x 55 millimeters or 3.03 x 0.98 x 2.17 inches, and it has 8 inputs per module and a current sinking input type with each channel having a 16.2 milliseconds reaction time. The 1734-IB8S module is available in Series A and B. It has an open-style enclosure type and can be mounted horizontally or vertically.
|
|
