1734-OB4E SERIES C ALLEN BRADLEY OUTPUT MODULE
Contact: Miya
Job Title: Sales Manager
Skype: live:miyazheng520
Email: sales@amikon.cn
Tel: 86-18020776792(Whats App )
QQ :2851195450
Brand Name AB
Product reference 1734-OB4E
You can use these Series C POINT I/O™ Protected Output modules with DeviceNet and
PROFIBUS adapters. If you are using RSLogix 5000 software, version 11 or higher,
you
can also use the Series C modules with ControlNet and Ethernet adapters.

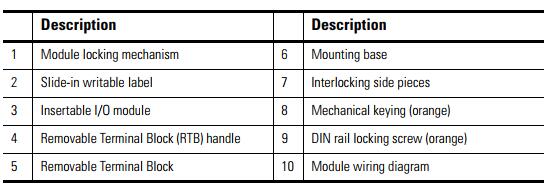

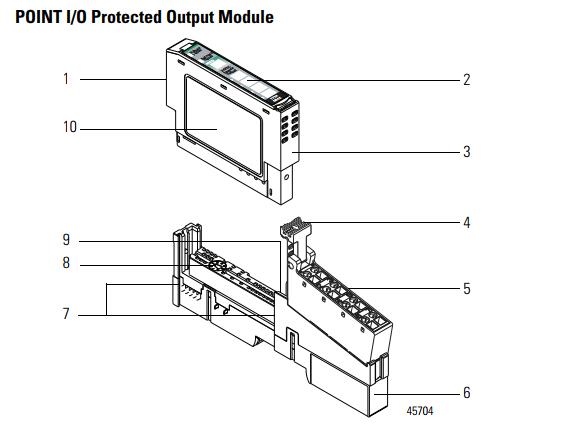

Use this diagram to identify the external features of the module. The 1734-OB4E module
ATTENTION: This product is grounded through the DIN rail to chassis ground.
Use zinc plated yellow-chromate steel DIN rail to assure proper grounding.
The
use of other DIN rail materials (for example, aluminum or plastic) that can
corrode, oxidize, or are poor conductors, can result in improper or intermittent
grounding.
Secure DIN rail to mounting surface approximately every 200 mm
(7.8 in.) and use end-anchors appropriately
Install the Mounting Base
To install the mounting base on the DIN rail, proceed as follows:
1. Position the mounting base vertically above the installed units (adapter, power
supply or existing module).
2. Slide the mounting base down allowing the interlocking side pieces to engage the
adjacent module or adapter.
3. Press firmly to seat the mounting base on the DIN rail. The mounting base snaps
into place.
4. To remove the mounting base from the DIN rail, remove the module, and use a
small-bladed screwdriver to rotate the base locking screw to a vertical position.
This releases the locking mechanism. Then lift straight up to remove.
