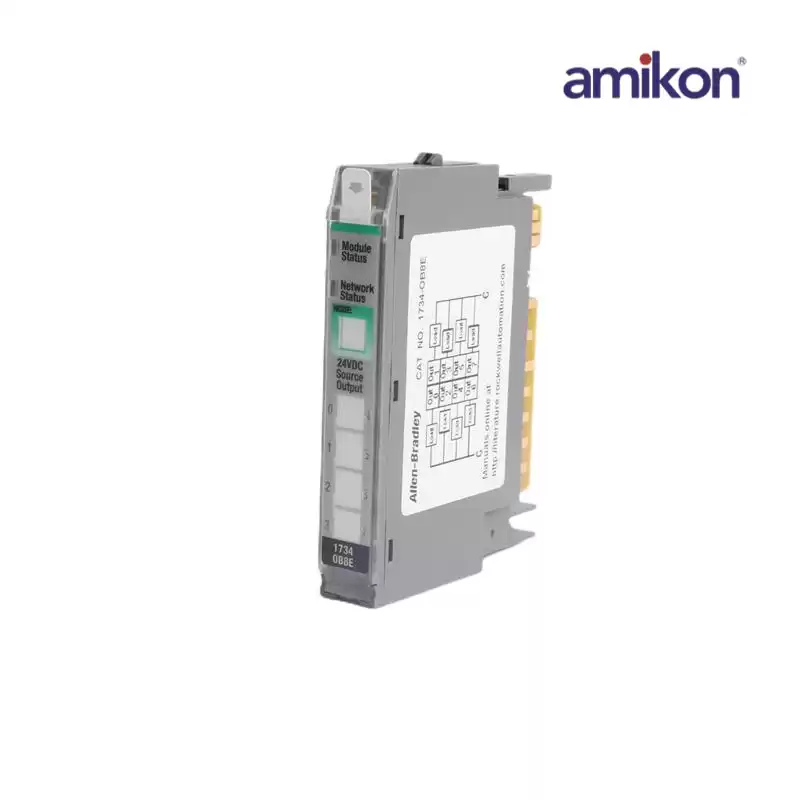

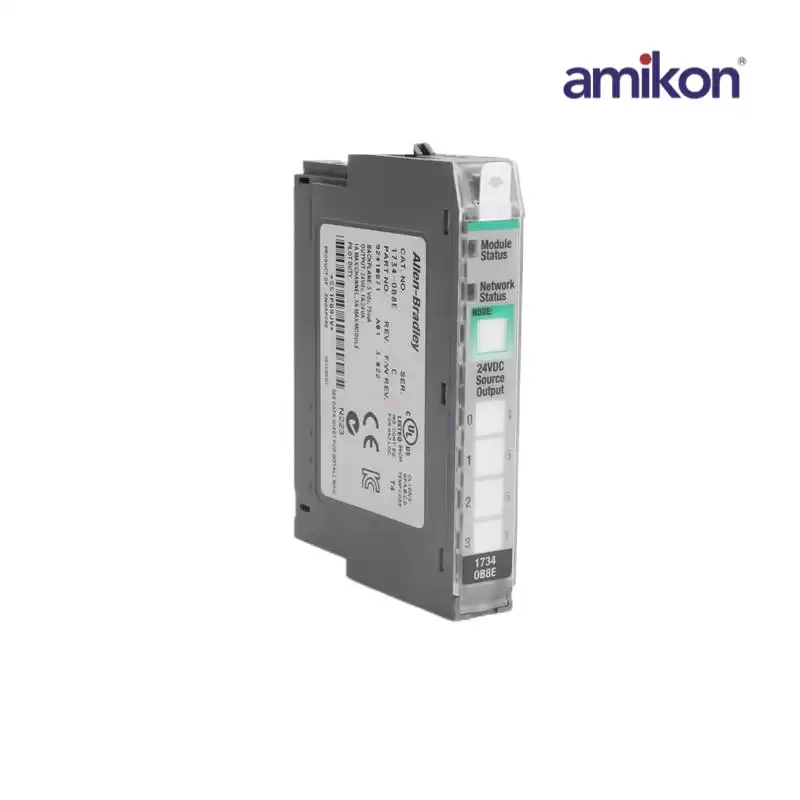

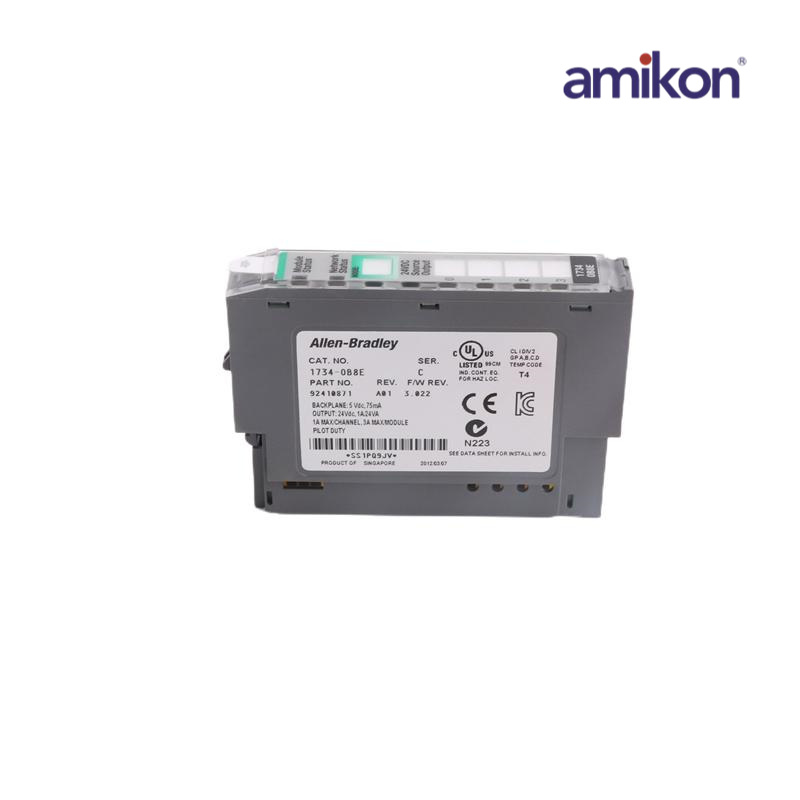

1734-OB8
|
|
Dimensions ：
|
2.5cmx7.3cmx5.7cm
|
Weight：
|
0.28KG
|
|
The 1734-OB8 cannot operated as a standalone device. It requires a POINT I/O communication adapter that manages the bi-directional transfer of between the controller and the POINT I/O module. Additionally, the 1734-OB8 is bus powered. It draws power from the POINT I/O bus with a rated current draw of 75 mA. To establish connections to this module, it requires use of 1734-TB or 1734-TBS wiring base assembly.
The 1734-OB8 has an output current rating of 1.0 A per output, not to exceed 3.0 A, maximum per module. It has minimum ON-state voltage of 10VDC and maximum ON state voltage is 28.8VDC.The 1734-OB8 has a surge current rating of 2 Amps for 10 milliseconds that is repeatable for 3 seconds. It comes with 8 yellow indicator lights for the output status and 2 green/red for the module/network status.
|
|
