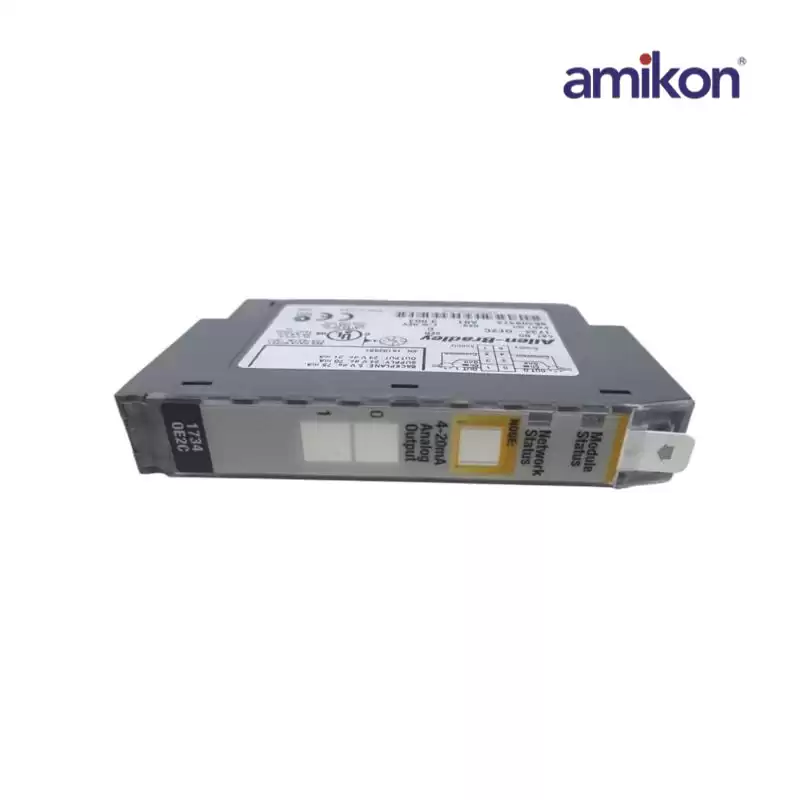

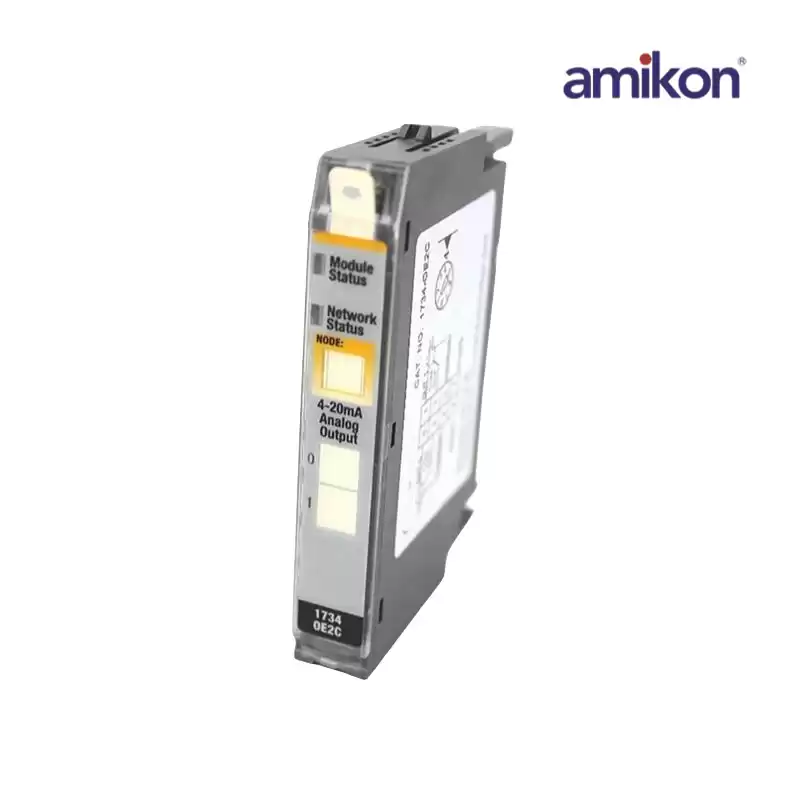

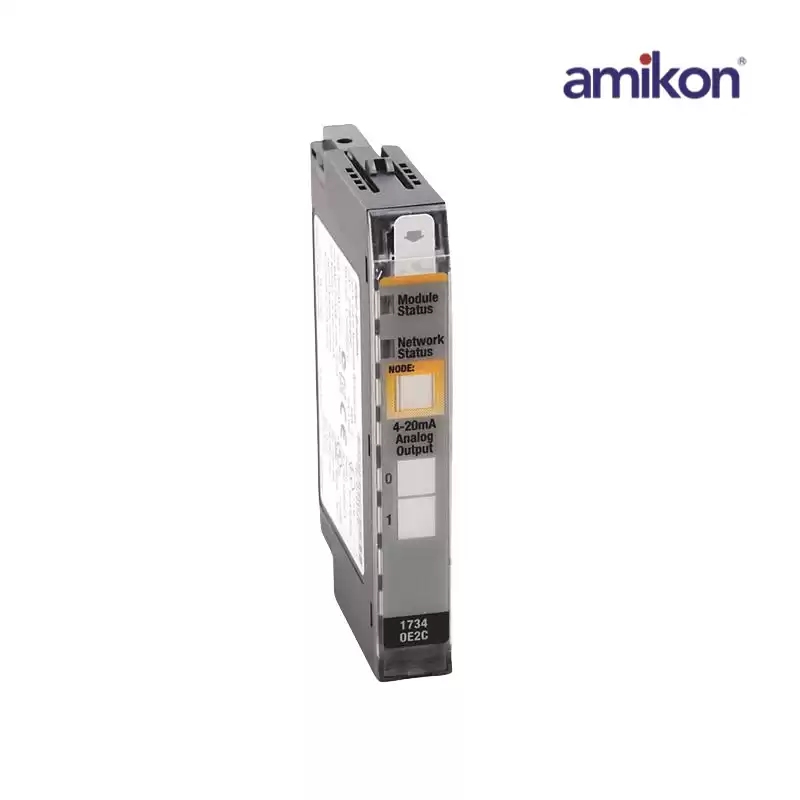

1734-OE2C
|
|
Dimensions ：
|
13.2cmx2.5cmx18cm
|
Weight：
|
0.24KG
|
|
The 1734-OE2C is commonly used to actuate modulating Final Control Elements (FCE) such as Control Valves, Variable Frequency Drives (VFD), Dampers, Louvers and other similar devices. It may also be used for re-transmitting analog data for use by data loggers or recorders, panel meters, totalizers, signal converters and isolators.
The 1734-OE2C’s thermal dissipation is 4.19 BTU/Hr. and an isolation voltage of 50V continuous tested to withstand 2200V DC for the 60s. It has an external DC supply voltage of 24V DC, nominal and voltage range from 10-28.8V DC. It supplies a current of 70mA at 24V DC which includes outputs at 20mA.
|
|
