About product:

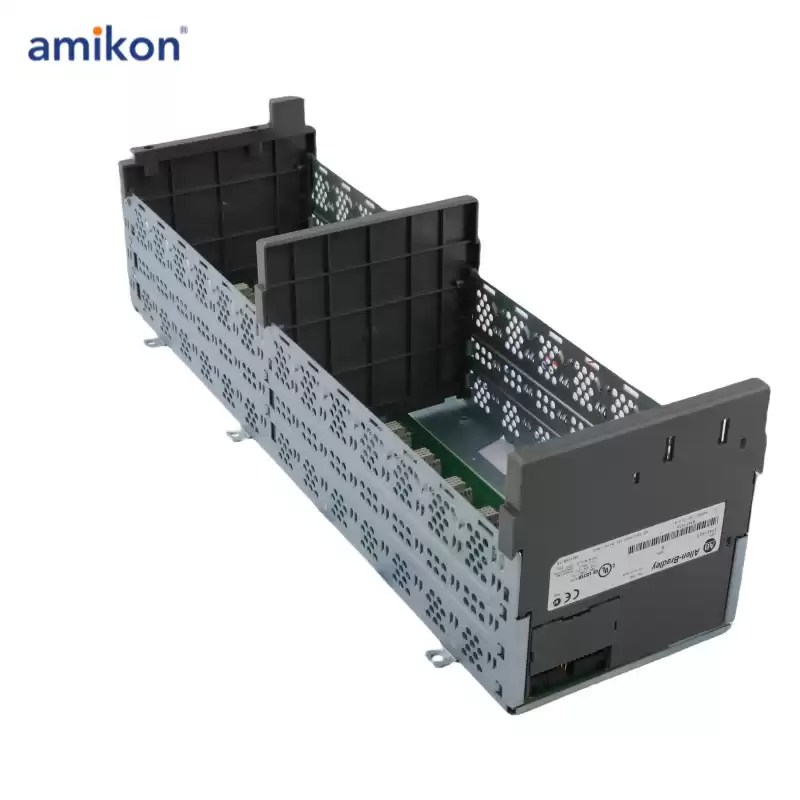

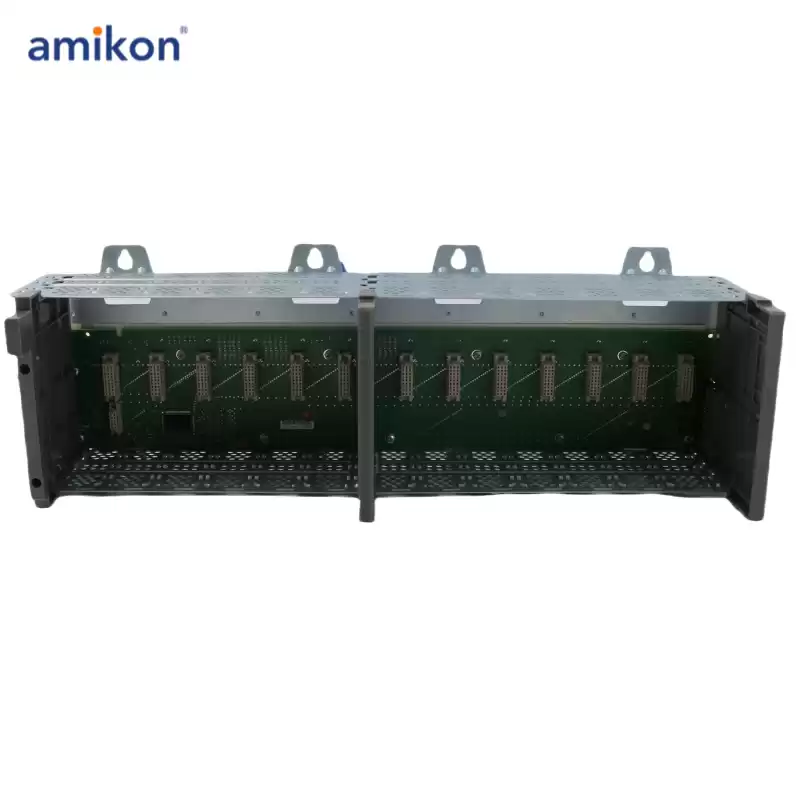

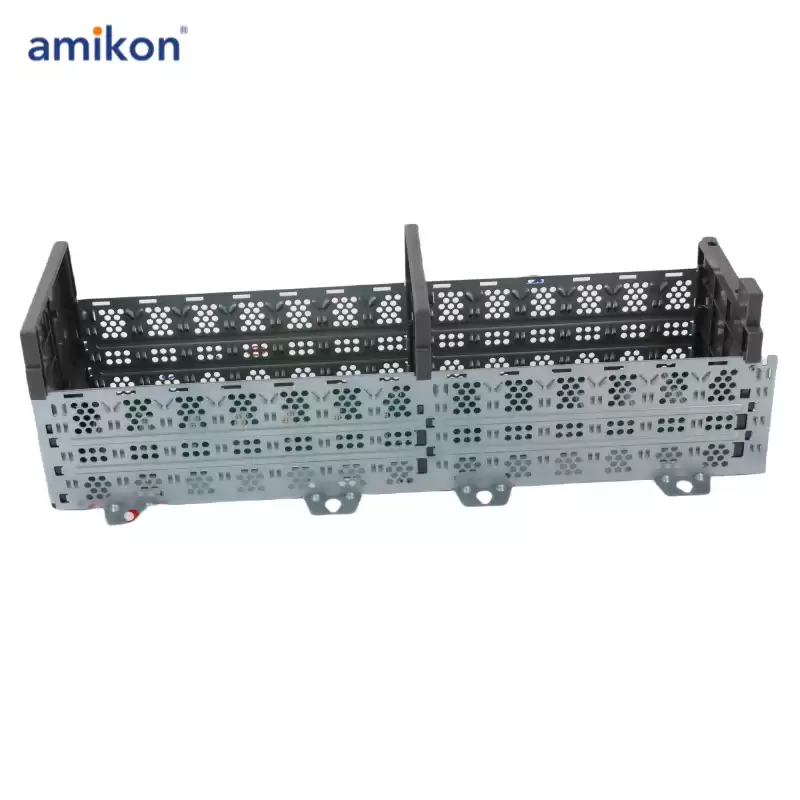

The chassis is equipped with eight mounting tabs, which allow it to be directly mounted onto a subpanel of an enclosure. To secure the chassis, use appropriate screws such as M4 or M5 (#10 or #12) Phillips screws. For proper installation, it is recommended to maintain a minimum top clearance of 15.3 cm (6.0 in) and a minimum side clearance of 10.2 cm (4.0 in). When using a rack extender cable, such as the 1746-C7, ensure the spacing between units is between 7.7 to 10.2 cm (3.0 to 4.0 in) for optimal performance.
|
Specification
|
Details
|
|
Weight
|
1.9 kg (4.2 lbs)
|
|
Mounting
|
Panel Mount
|
|
Series
|
SLC 500
|
|
Part Number/Catalog No.
|
1746-A13
|
|
Module Type
|
Chassis
|
|
No. of Slots
|
Thirteen (13) slots
|
|
Backplane Current
|
5.1V dc @ 10A; 24V dc @ 2.88A
|
|
Physical Dimensions
|
50.2 x 17.1 x 14.5 cm (20.1 x 6.8 x 5.8 in)
|
|
No. of Mounting Tabs
|
Eight (8)
|
|
Operating Temperature
|
0°C to +60°C (+32°F to +140°F)
|
|
Storage Temperature
|
-40°C to +85°C (-40°F to +185°F)
|
|
Relative Humidity
|
5 to 95% (without condensation)
|
