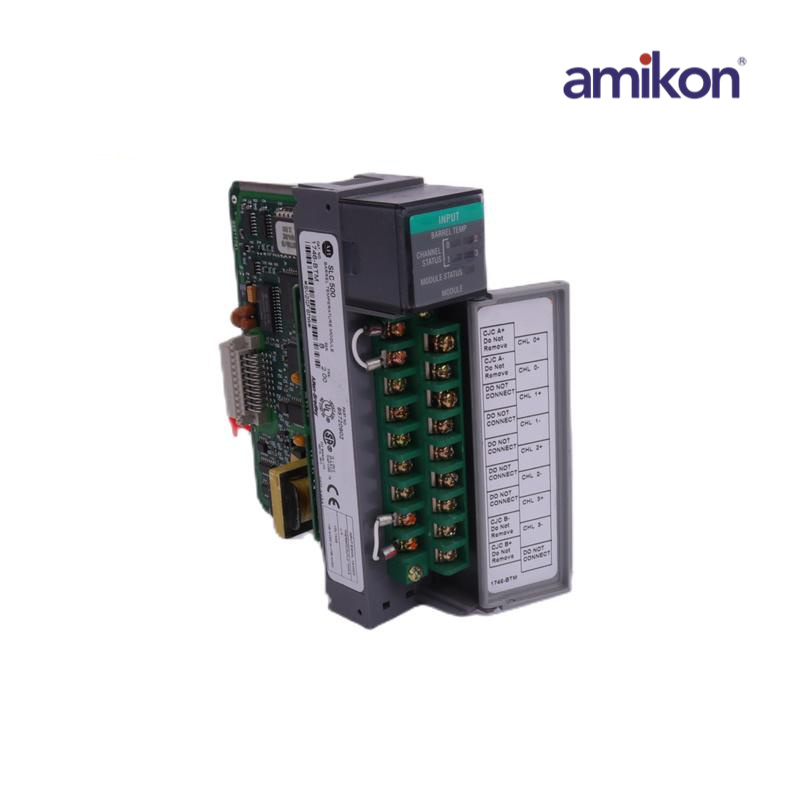

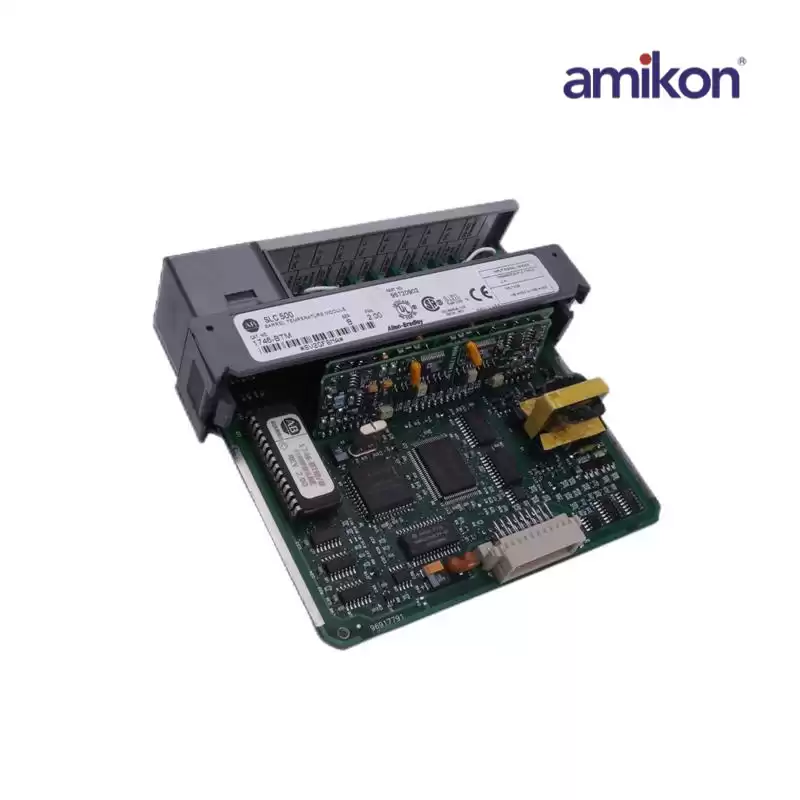

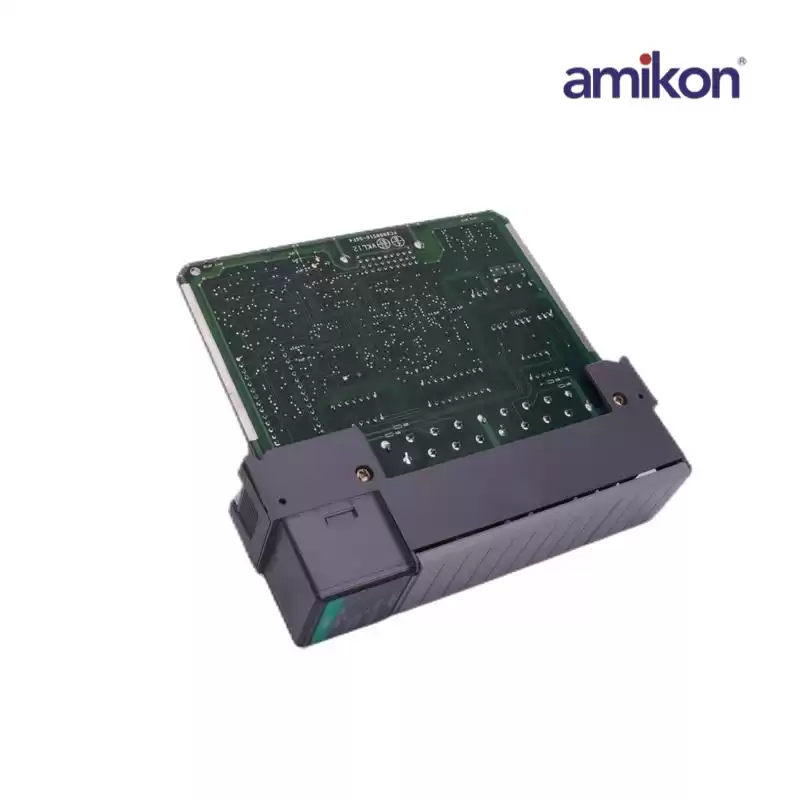

1746-BTM
|
|
Dimensions ：
|
12.7cmx5cmx15.2cm
|
Weight：
|
0.3KG
|
|
The 1746-BTM has 4 backplane and channel-to-channel isolated inputs with a backplane current load of 110 mA at 5 Volts and 85 mA at 24 Volts. Its thermocouple analog inputs with input voltage are -50 to 50 mV and -100 to 100 mV. Its A/D conversion process uses Sigma-Delta modulation, and it has a 16-bit resolution and a 16-bit signed integer data format.
The 1746-BTM is a Barrel Temperature Control Module for the SLC 500 system. It is an intelligent I/O module that accommodates 4 zones of autotuned heat/cool PID loops for temperature control applications.
|
|
