About product:

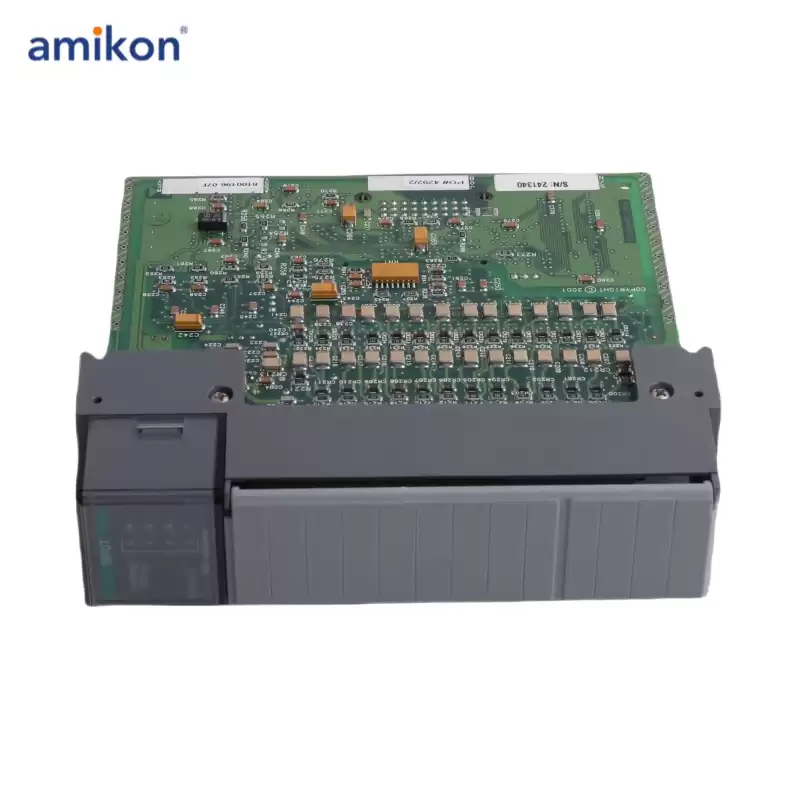

The 1746-HSTP1 is a stepper controller module designed for use with a variety of processors in the SLC 500 series. This single-slotted module is capable of operating with differential encoder motion, supporting over 8 million counts of absolute position. It can handle frequencies up to 250 kHz and provides a 250 kHz pulse train output for micro-stepping applications. The module employs loopback diagnostics and supports differential incremental encoder feedback devices. It interfaces directly with +5V or +15V encoders, offering differential feedback.
The module draws 200 mA of back-plane current at 5V and 90 mA at 24V. It supports a 5V DC differential encoder or 12-24V DC single-ended auxiliary inputs and provides a digital output for the translator with a 4 ms update time. The controller can handle pulse train switching of 7 to 30 mA at 5V DC and supports acceleration between 2 and 2500 pulses per second² with a trapezoidal velocity profile. The thermal dissipation of the controller is 1.5 watts, both at minimum and maximum operating conditions. It is designed for stepper motor drivers and offers a speed range from 1 to 250,000 pulses per second.
Specifications:
|
Part Number/Catalog No.
|
1746-HSTP1
|
|
Series
|
SLC 500
|
|
Module Type
|
SLC Stepper Controller Module
|
|
Number of Axes
|
1
|
|
Compatible Interfaces
|
Stepper Motor Driver
|
|
Speed Range
|
1 to 250,000 pulses per second
|
|
Acceleration
|
1 to 2000 pulses per second (Trapezoidal velocity profile)
|
|
Acceleration Step Rate
|
4 milliseconds or less
|
|
Inputs
|
Differential
|
|
Outputs
|
Digital
|
|
Input Frequency
|
250 kilohertz
|
|
Backplane Current (5 Volts)
|
200 milliamps
|
|
Backplane Current (24 Volts)
|
90 milliamps
|
|
I/O Connection
|
1746-HT and 1746-HCA
|
