It is compatible for use with any SLC 500 processor, ideally with the SLC 500 Modular Style hardware. It supports being installed locally, along the controller or to an expansion I/O rack or to a Remote I/O chassis along an SLC 500 communication adapter.
|
|

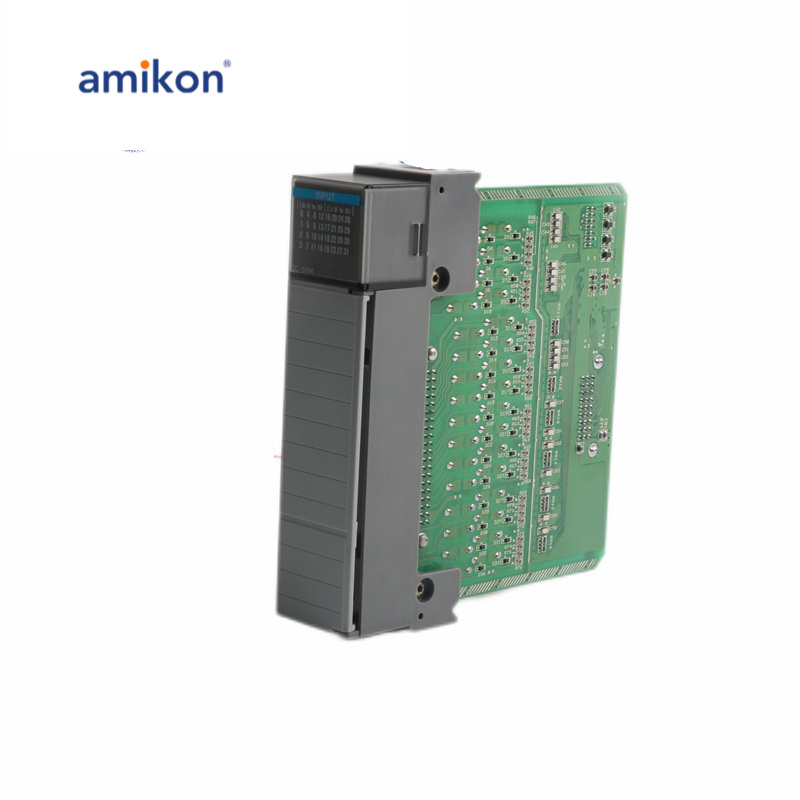

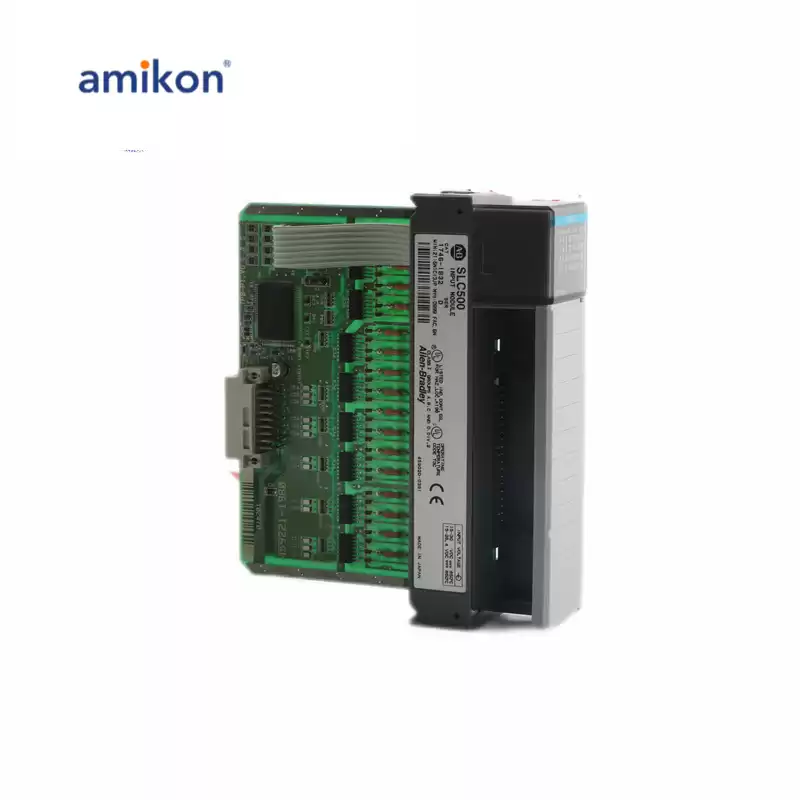

1746-IB32 Description:
|
It directly installs to any available slot of the 1746 chassis except slot 1 which is reserved for the SLC 500 controller.
|
|
has a backplane current draw of 50 mA at 5VDC with maximum Off-State Input voltage of 5VDC, Nominal Input Current of 5.1 mA @ 24V DC.
|
|
maximum Off state input current of 1.5 mA with typical signal delay of 8 ms for both ON to OFF and OFF to ON signal transition.
|
|
