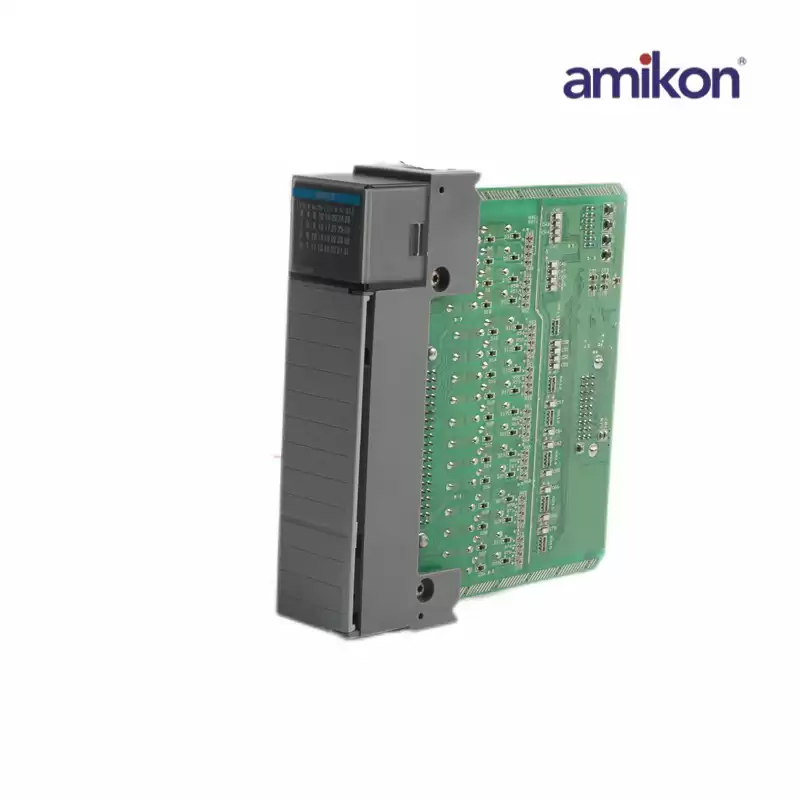

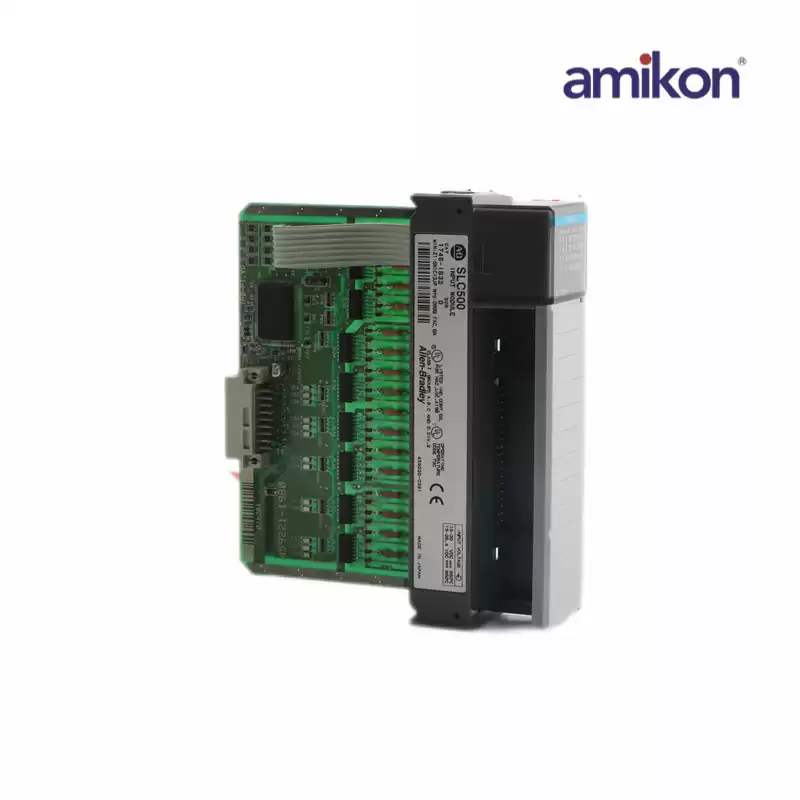

1746-IB32
|
|
Dimensions ：
|
3cmx13cmx14cm
|
Weight：
|
0.14KG
|
|
The 1746-IB32 is a single slot module that is configured using the RSLogix 500 programing software. It is compatible for use with any SLC 500 processor, ideally with the SLC 500 Modular Style hardware. It supports being installed locally, along the controller or to an expansion I/O rack or to a Remote I/O chassis along an SLC 500 communication adapter. It directly installs to any available slot of the 1746 chassis except slot 1 which is reserved for the SLC 500 controller.
The 1746-IB32 has a backplane current draw of 50 mA at 5VDC with maximum Off-State Input voltage of 5VDC, Nominal Input Current of 5.1 mA @ 24V DC, maximum Off state input current of 1.5 mA with typical signal delay of 8 ms for both ON to OFF and OFF to ON signal transition.
|
|
