1746-IC16
|
|
Dimensions ：
|
3.2cmx13cmx17.6cm
|
Weight：
|
0.46KG
|
|
The 1746-IC16 has an OFF-state voltage loss of 10V DC, a current leakage of 1.5mA, and the nominal current on the overall inputs is 4.1mA at a nominal module voltage of 48V DC. It provides a circuit isolation between the backplane and the inputs at 1500V AC tested for 60s and it has a dielectric withstand of 1500V AC.

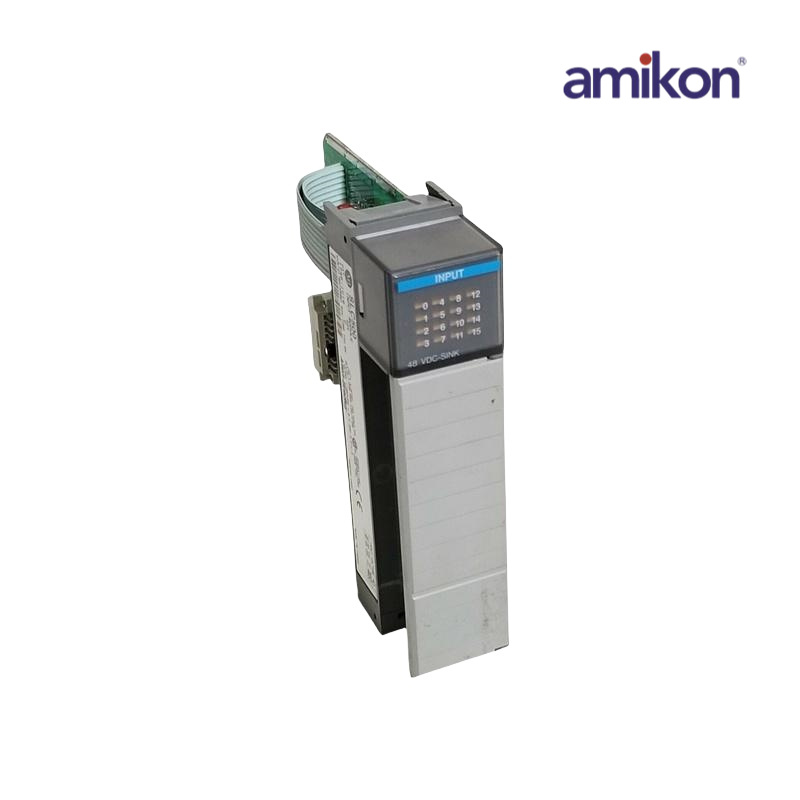

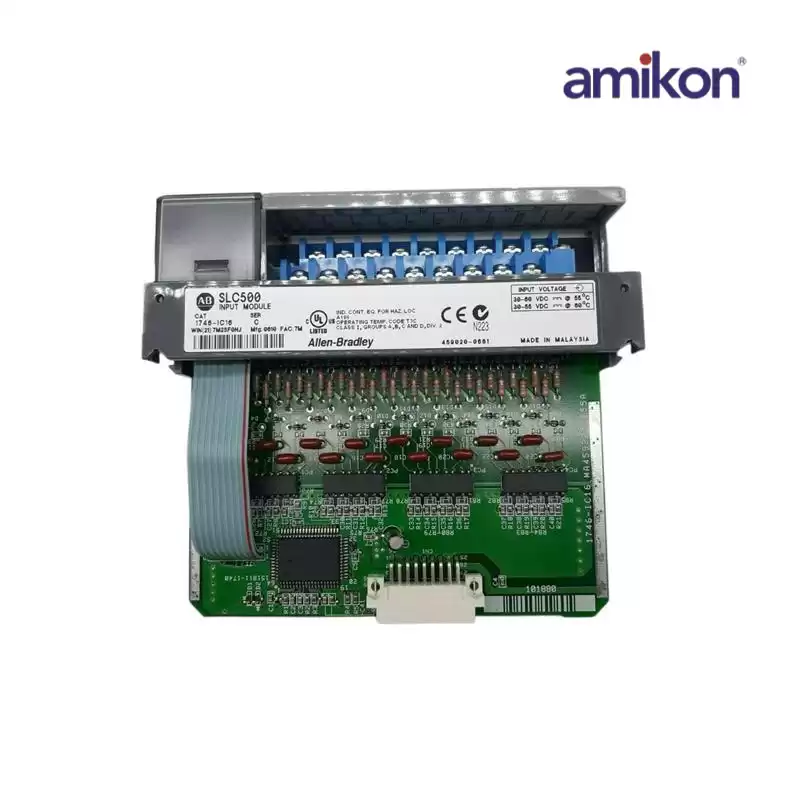

The 1746-IC16 has a backplane draw current of 0.085A at 5V DC and one of 0A at 24V DC. The electrical signal in the input points has a maximum delay time of 4ms for both the ON and the OFF condition.The 1746-IC16 SLC 500 Sinking DC input Module by is a 48V DC sinking module with 16 sinking inputs that uses a Removable Terminal Block (RTB).
|
|
