OFF-state voltage loss of 10V DC, a current leakage of 1.5mA, and the nominal current on the overall inputs is 4.1mA at a nominal module voltage of 48V DC.
|
|
1746-IC16 Description:
|
It provides a circuit isolation between the backplane and the inputs at 1500V AC tested for 60s and it has a dielectric withstand of 1500V AC.
|
|
backplane draw current of 0.085A at 5V DC and one of 0A at 24V DC. The electrical signal in the input points has a maximum delay time of 4ms for both the ON and the OFF condition.
|
|

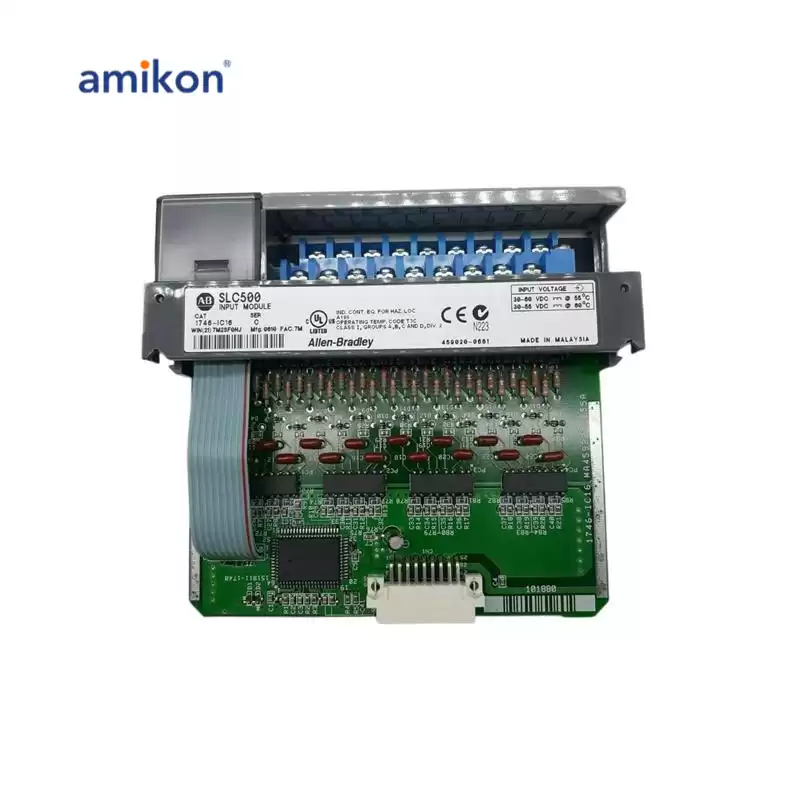

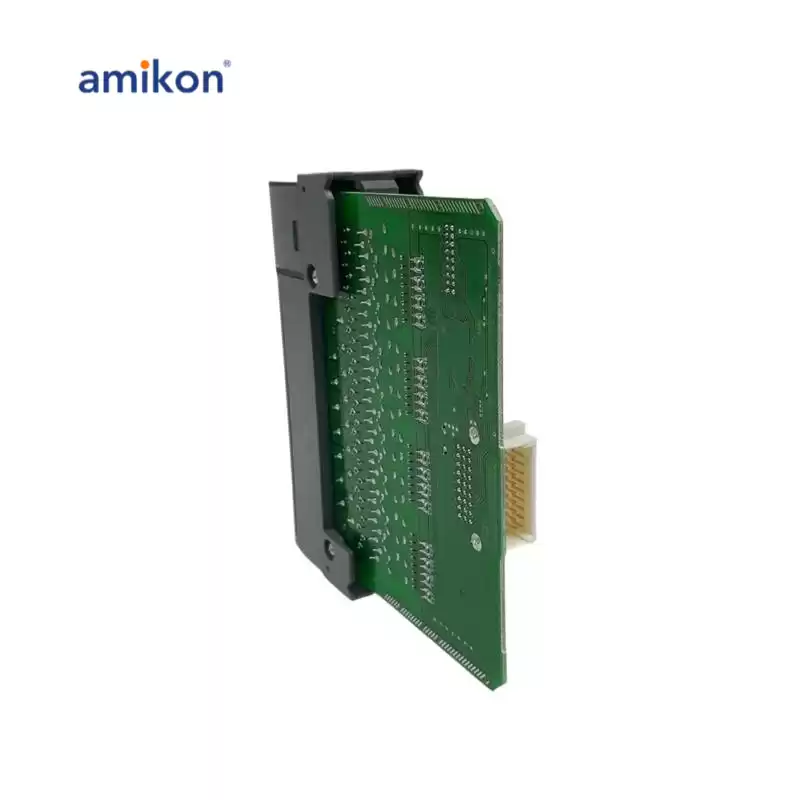

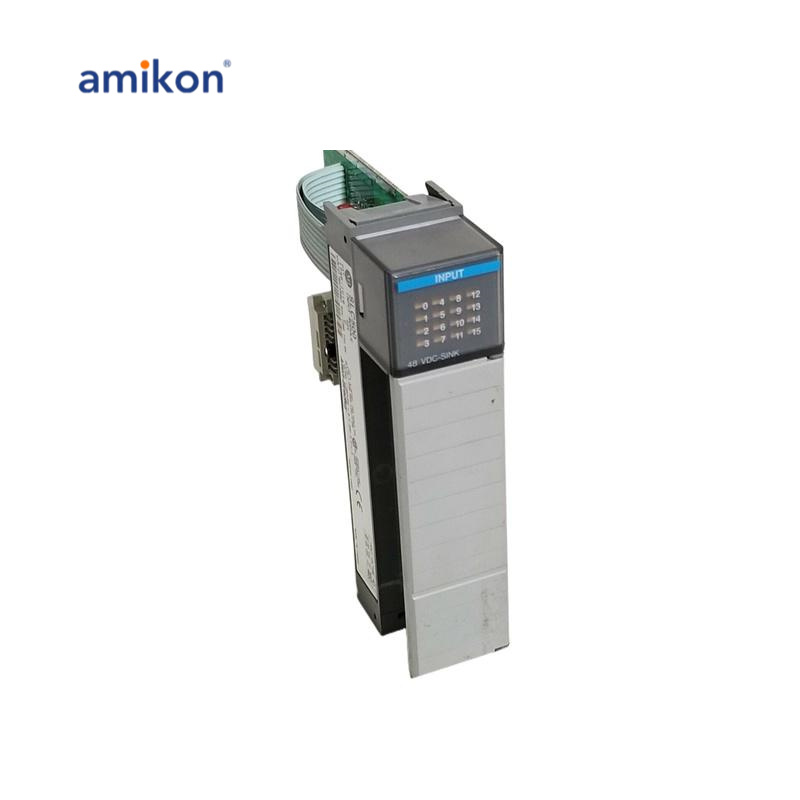

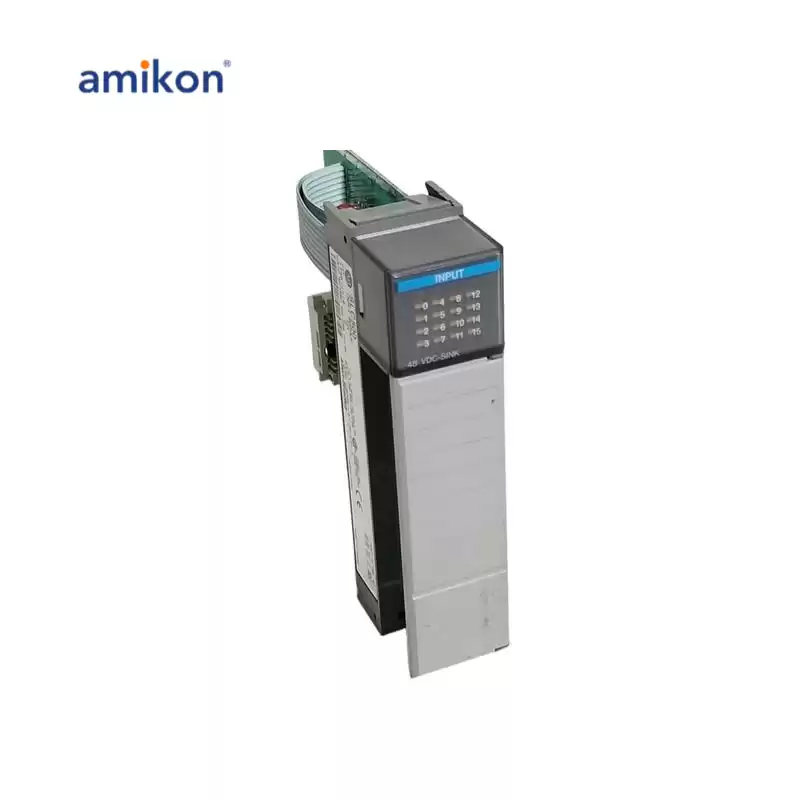

SLC 500 Sinking DC input Module by is a 48V DC sinking module with 16 sinking inputs that uses a Removable Terminal Block (RTB).
|
|
