Decription:

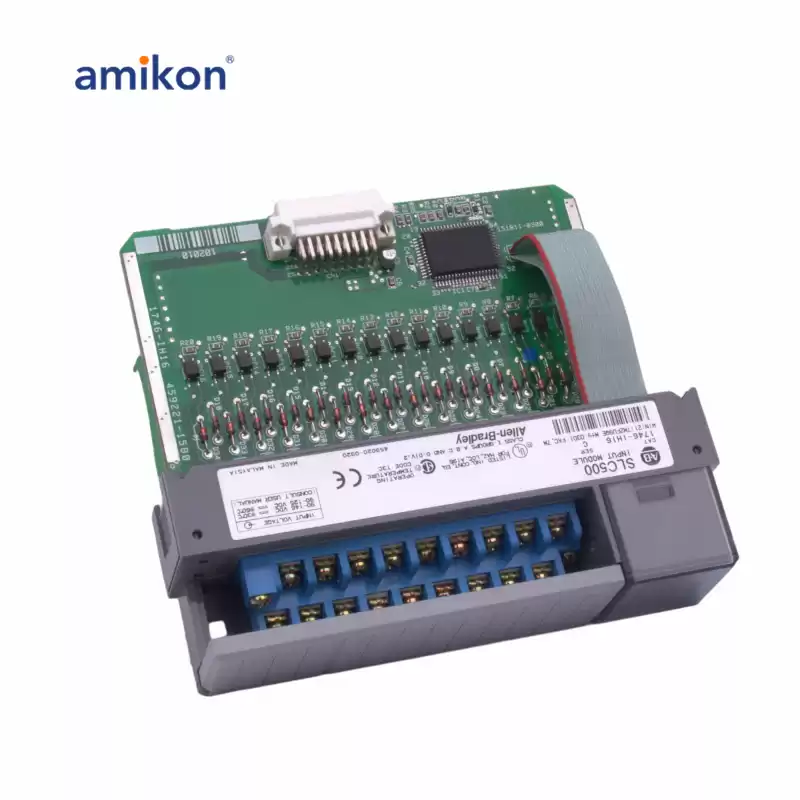

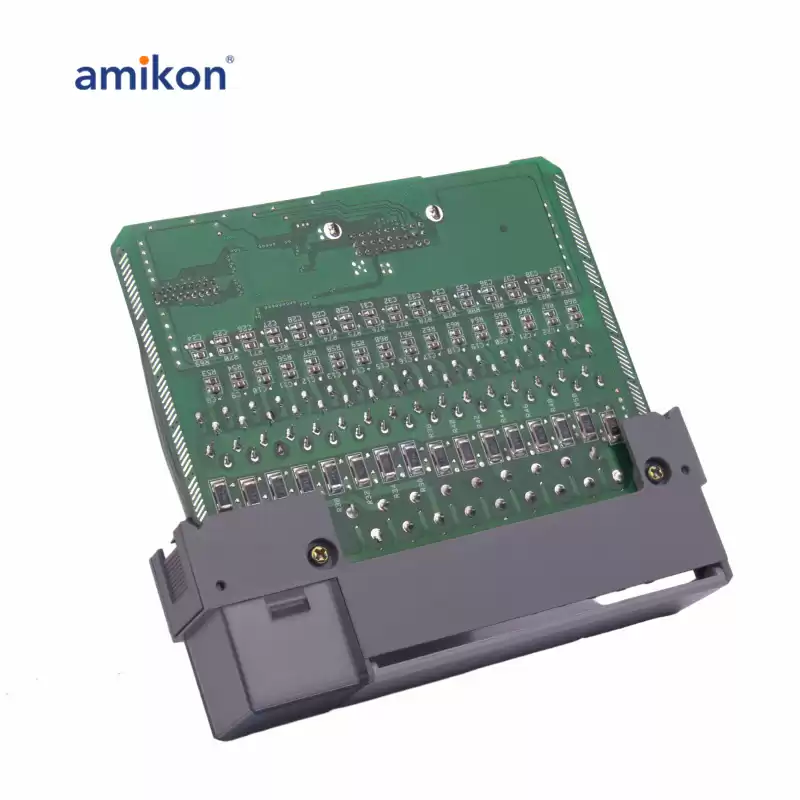

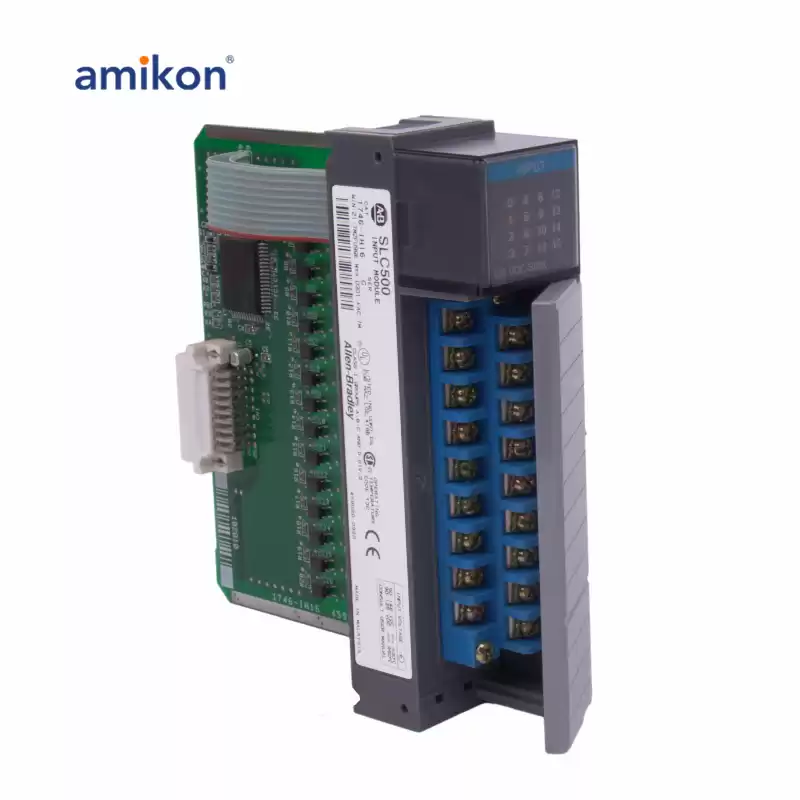

The 1746-IH16 module is an SLC 500 series input module designed with 16 sinking inputs. It is approved for use in Class 1, Division 2, Groups A, B, C, or D hazardous environments, but can also be used in non-hazardous industrial settings. During normal operation, the module dissipates 5.17 Watts of energy as heat. The module features sinking inputs, with a maximum off-state voltage rating of 20 Volts DC and a maximum off-state current rating of 0.8 milliamps.
|
Attribute
|
Specification
|
|
Part Number/Catalog No.
|
1746-IH16
|
|
Series
|
SLC 500
|
|
Module Type
|
Digital DC Input Module
|
|
Voltage Range
|
90-146 Volts DC Sink
|
|
Inputs
|
16
|
|
Backplane Current (5 Volts DC)
|
85 milliamps
|
|
Signal Delay
|
9 milliseconds
|
|
Off State Current
|
0.8 milliamps
|
|
Applications
|
General Purpose 125 Volts DC Inputs
|
|
I/O Connection
|
1746-HT and 1746-HCA
|
Packing & Delivery:
|
1)100% full New! - Original Factory Seal !
|
|
2)Warranty: 1 year!
|
|
3)Package: Original packing with cartons.
|
|
4)Delivery time: Shipped in 3 days after payment
|
|
5) All the goods will be tested before shipment.
|
