Manufacturer Automation
Brand

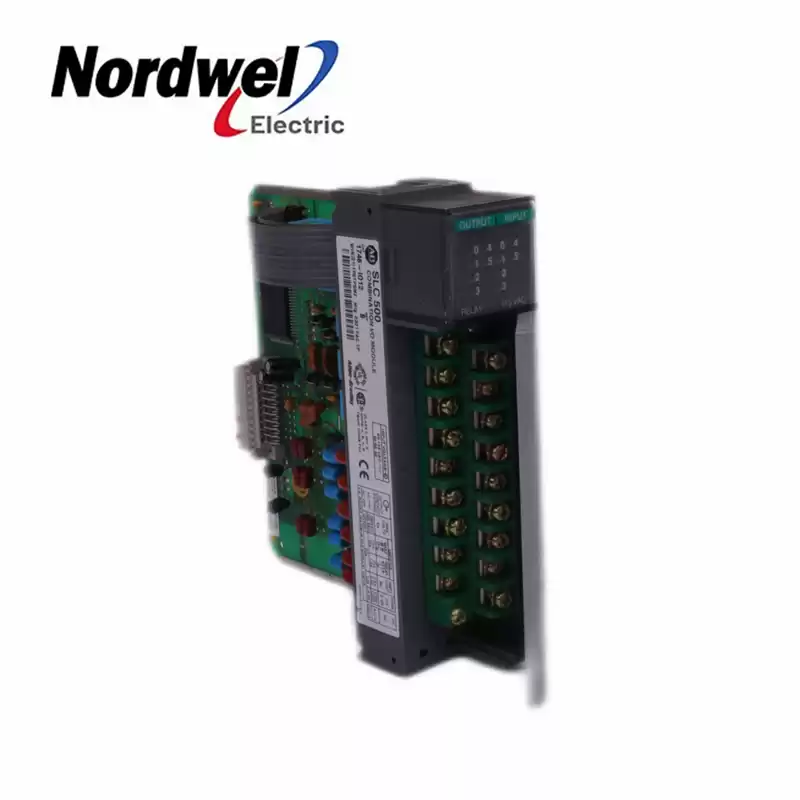

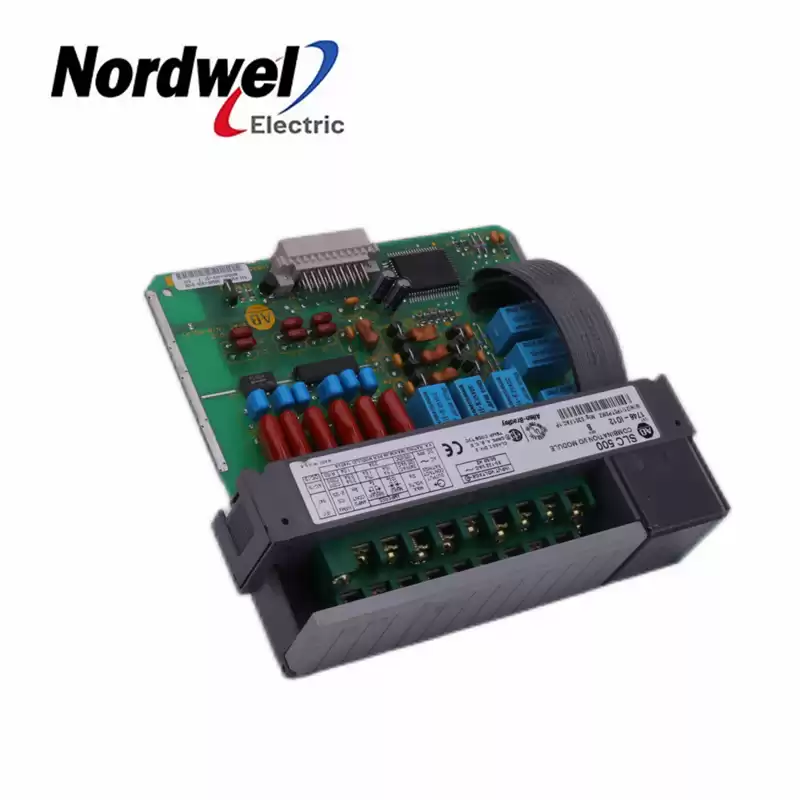

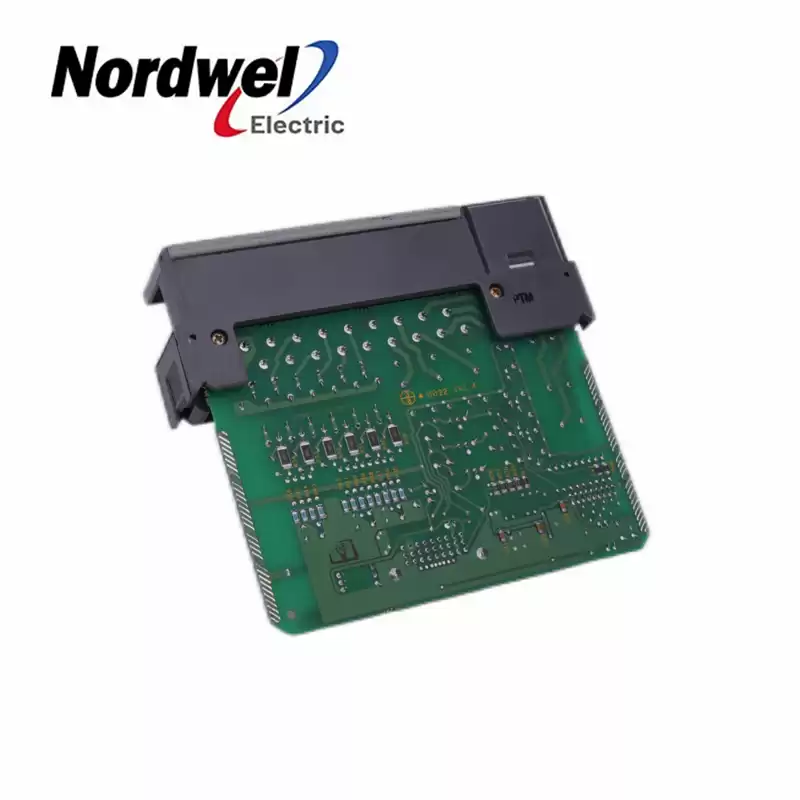

Part Number/Catalog No. 1746-IO12
Series SLC 500
Operating Voltage 85-132 Volts AC
Module Type Digital I/O Combination Module
Input Operating Voltage 120 VAC Volts AC
Inputs Six (6) 120VAC inputs
Output Operating Voltage 24-125 VDC; 120 - 240 VAC
Signal delay 35-45 milliseconds
Outputs Six (6) Form A Contacts
Current/Output (24VDC) 1.2 amps
Current/Output (120 VAC) 1.5 amps
Continuous Current per module 8.0 A
Backplane Current 70-90 mA
Current/Output (24VDC)1.2 amps; (120 VAC)1.5 amps
Applications Combination 120 Volts AC I/O
Slot Width 1
Area Classification Certified for Class 1, Division 2 hazardous location by CSA.
