1746-IO12
|
|
Dimensions ：
|
12.7cmx5cmx15.2cm
|
Weight：
|
0.3KG
|
|
The 1746-IO12’s contact output is a Normally-Open contact (N.O.) type and each output has a nominal continuous current of 1.5A at 120V AC and one of 1.2A at 24V DC. It has 0.27W per input point, 0.133W per output point maximum power dissipation, and the aggregate heat dissipation in the module is 4.60W.

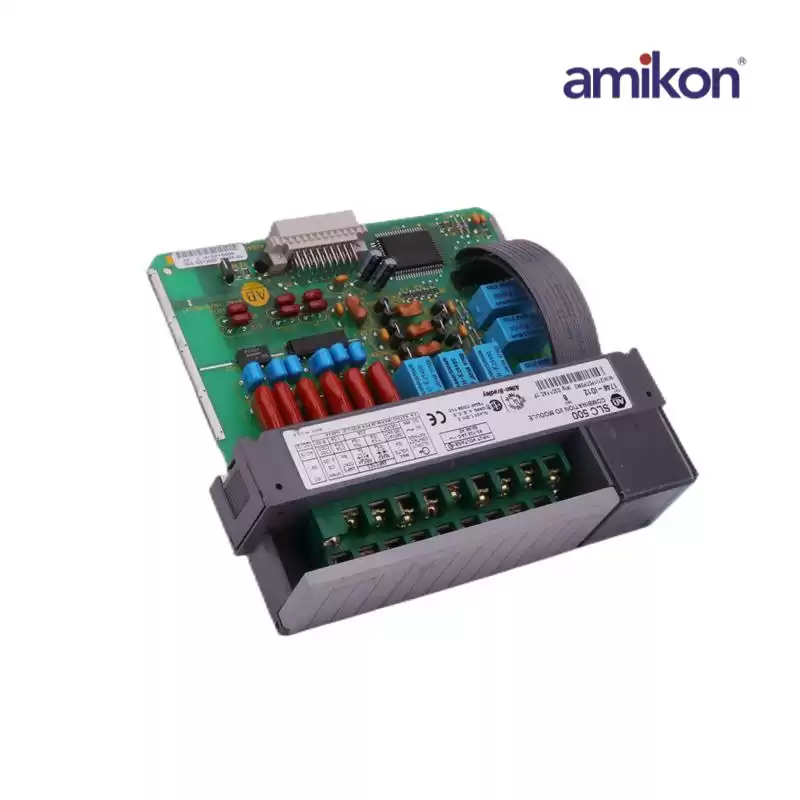

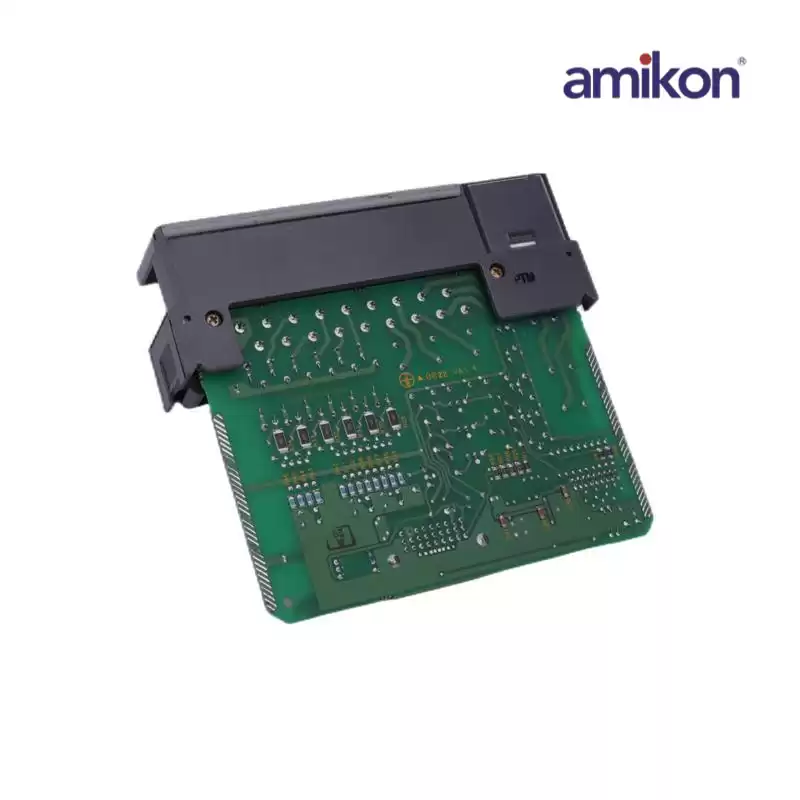

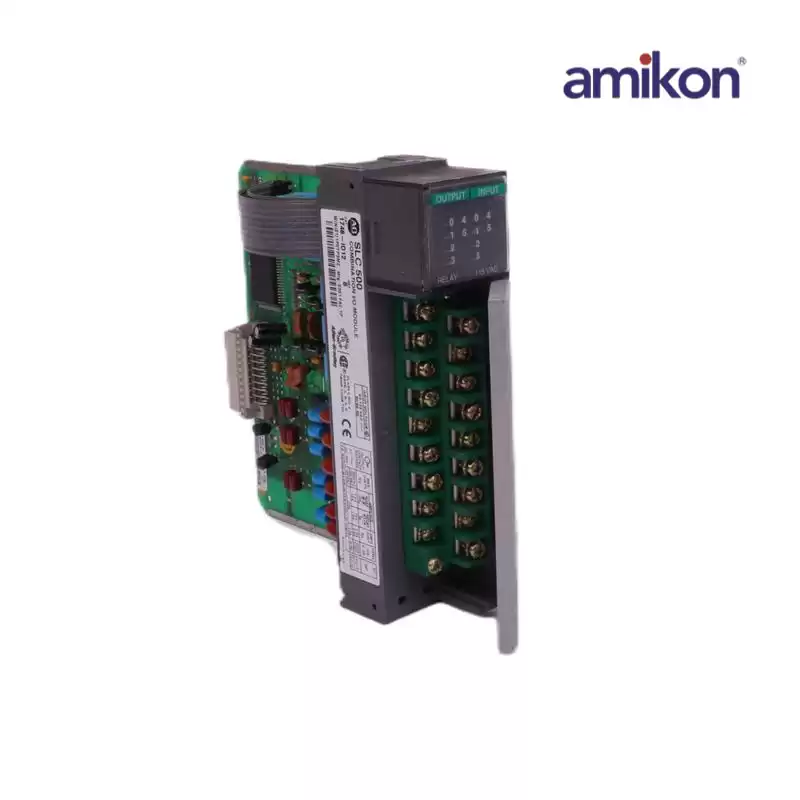

The 1746-IO12 can withstand a functional vibration of 2.5G at 57-200Hz operational vibration and it can maintain its optimum function at a 30G operational shock.The 1746-IO12 is a combination Input / Output module that belongs to the SLC 500 controller platform.
|
|
