Technical Specifications for 1746-IO8
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Voltage Range
|
85-132 Volts AC
|
|
Part Number/Catalog No.
|
1746-IO8
|
Inputs
|
4
|
|
Module Type
|
Combination I/O Module
|
Outputs
|
4
|
|
Manufacture Year
|
2021
|
Signal delay
|
35-45 milliseconds
|
|
Product Package
|
Original Package
|
Applications
|
Combination 120 Volts AC I/O
|
About 1746-IH16
|

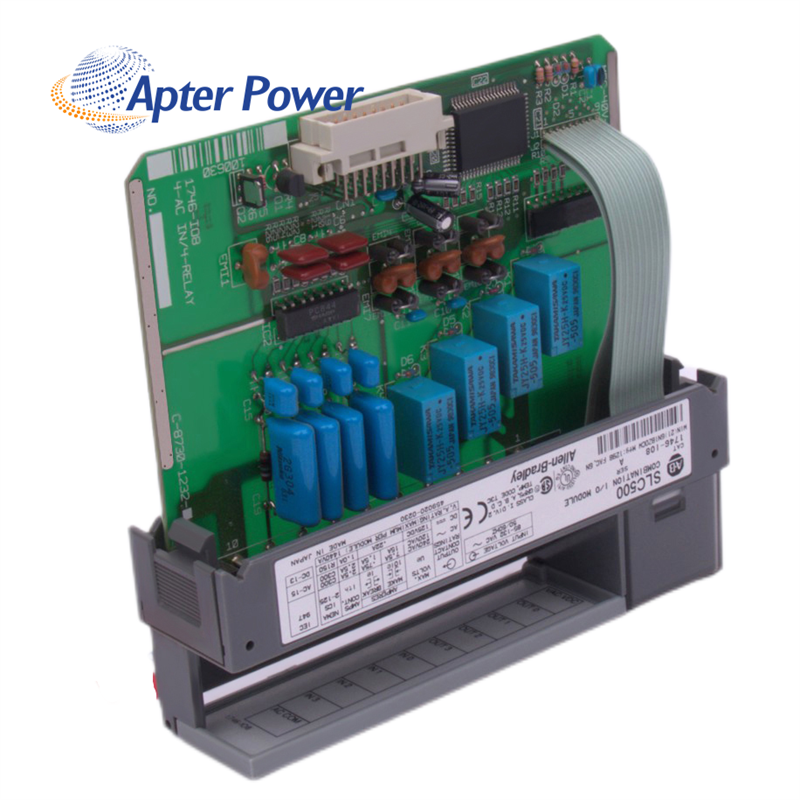

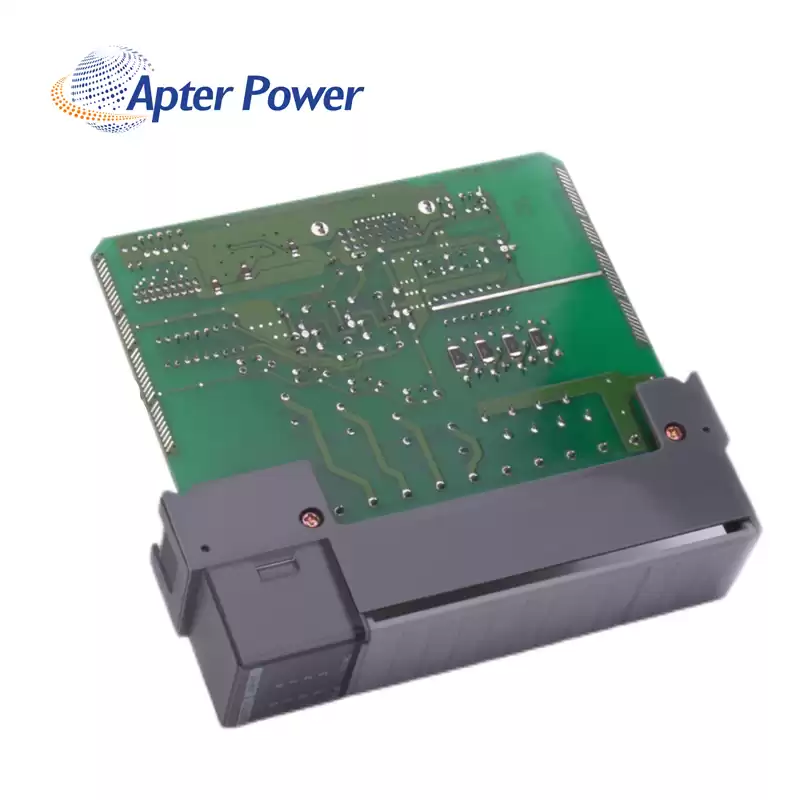

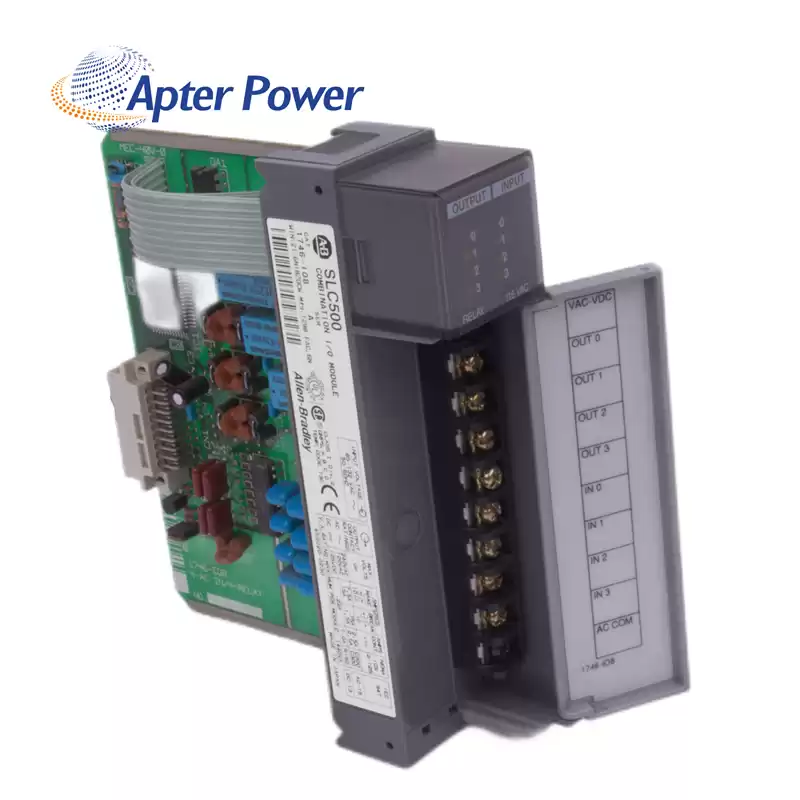

The 1746-IO8 is a SLC 500 Digital I/O Combination Module. This Digital I/O Combination Module has an Operating Voltage of 85-132 Volts AC as well as 4 Inputs and 4 Outputs.
The 1746-IO8 SLC 500 Digital Input/output Combined Module is a combined input and output module by and is fitted in any slot (except slot 0) of 1746 I/O chassis. It has four 120V AC inputs per module and 4 relay contacts outputs with 4 points per common. It has an operating voltage range (85-132V AC) similar to most members of the SLC 500 combined I/O modules and has an output rating of 5-65V AC and 5-125V DC at 47-53Hz.
The 1746-IO8 has a factory-specified operating temperature range between 0 and 60 °C (32 and 140 °F) at 5-95% humidity and it has a designated non-operational temperature range between -40 and 85 °C (-40 and 185 °F). It has an operational shock rating of 30G and is also tested to withstand a maximum operational vibration of 2.5G at 57-200Hz. It is CE, CSA, and C-UL-certified and provides NEMA standard ICS 2-230 rated noise immunity.
|
