| 1746-ITV16 | Input Module



  • CertificationCO,CQ
  • Description 1746-ITV16 SLC 500 16-Ch Fast Response 24VDC Sourcing Input Module
  • Place of OriginUSA
  • Manufacture Year2021
  • Dimensions13cmx 5cm x 15 cm
  • Weight0.25 kg
  • Part Number1746-ITV16

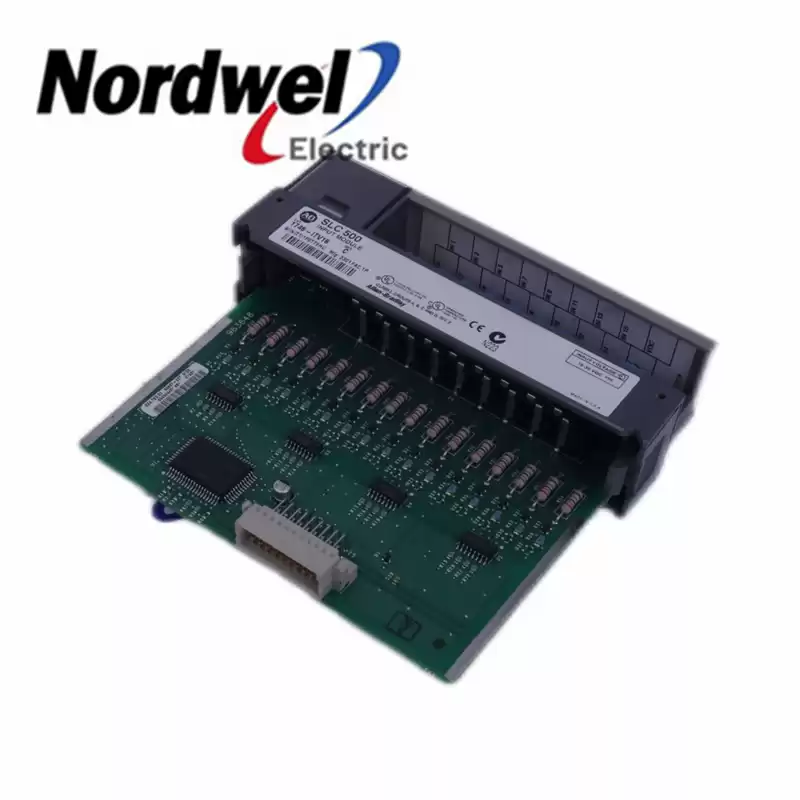

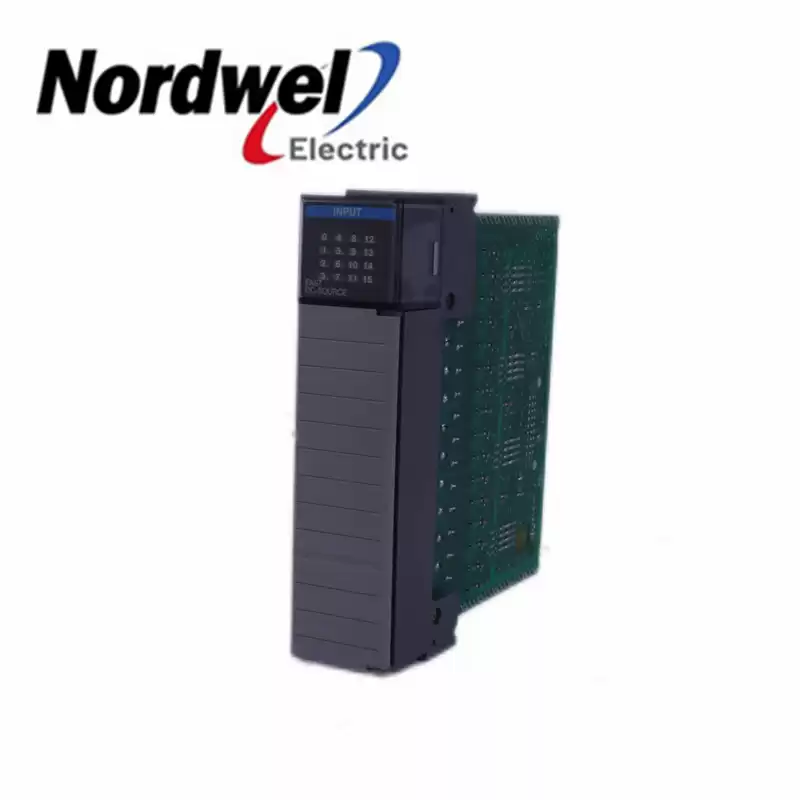

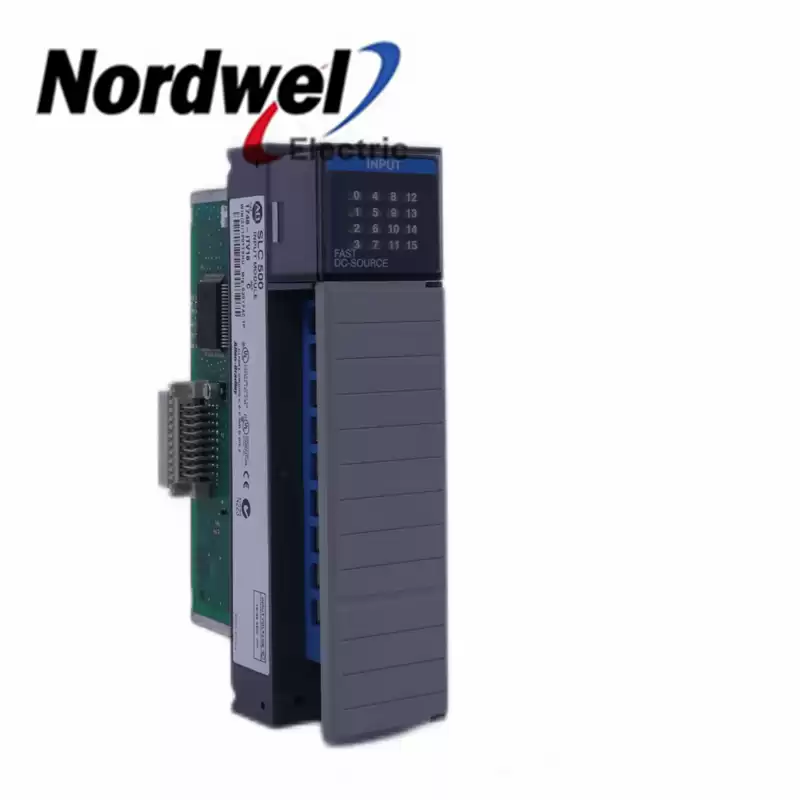

  • The 1746-ITV16 is a SLC 500 sourcing discrete input module.

  • This module has Sixteen (16) fast response channel that accepts a nominal input voltage of 24VDC with operating voltage range of 10-30VDC.

  • It has One (1) group of 16 channels with backplane current draw of 0.085 A. It has maximum off-state voltage of 5VDC with nominal input current of 8 mA at 24VDC.

  • Each channel of this module has maximum signal delay of 0.30 ms for ON transition and 0.50 ms for OFF transition.
