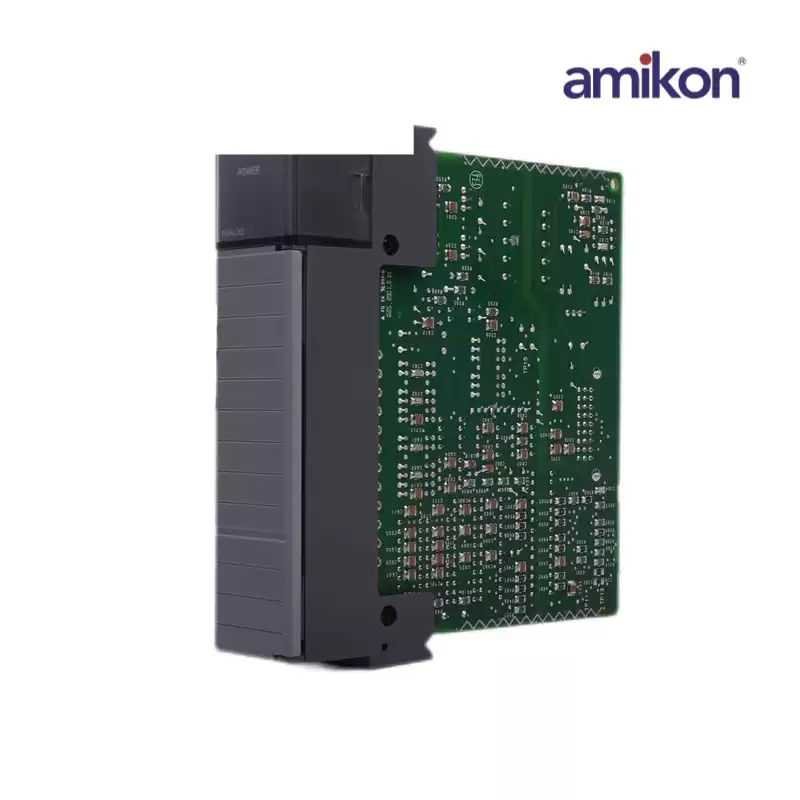

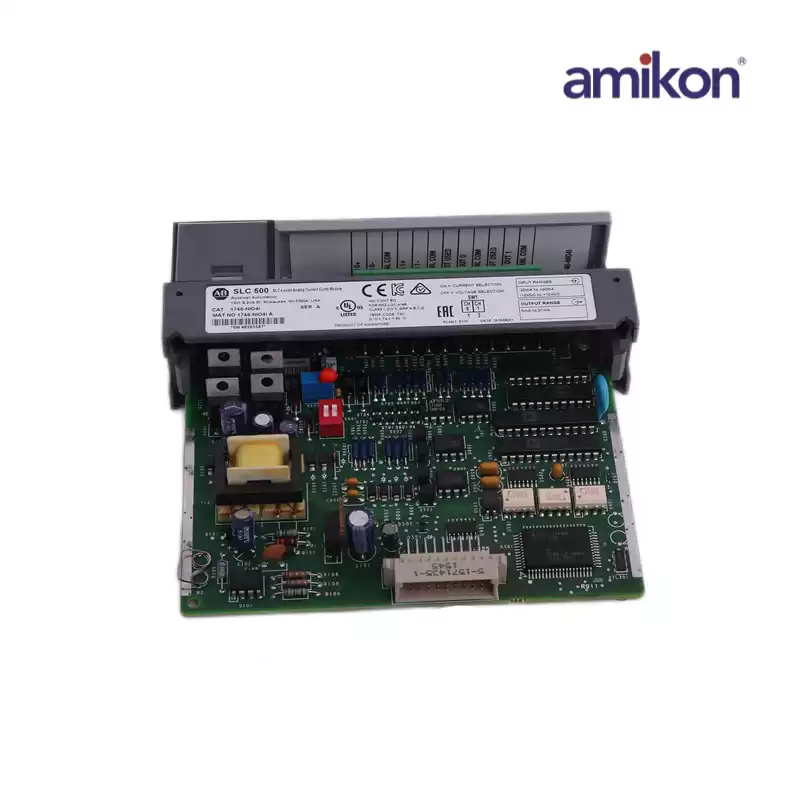

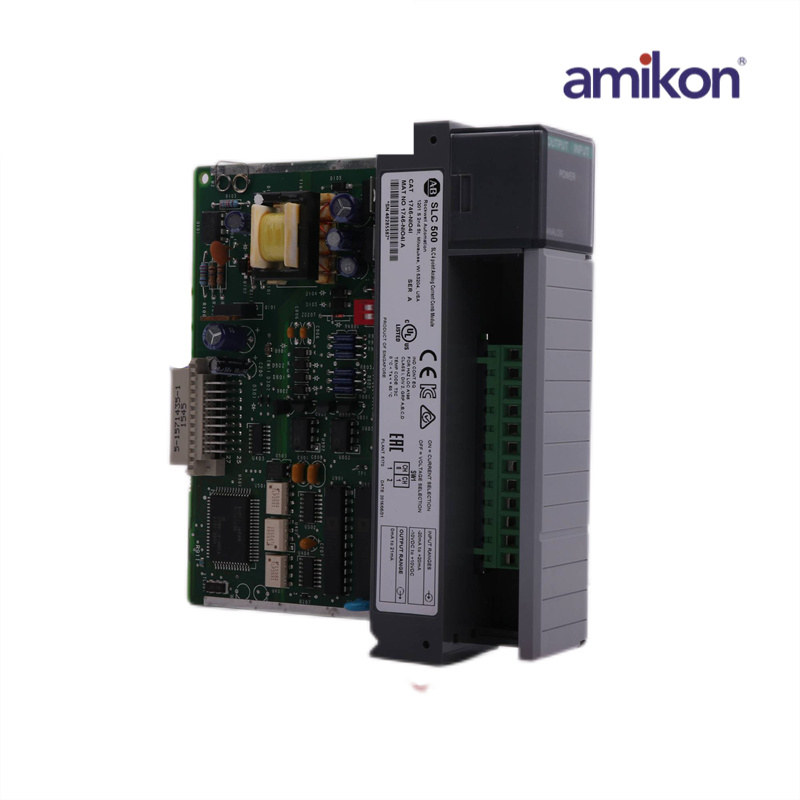

1746-NIO4I
|
|
Dimensions ：
|
12cmx5cmx15cm
|
Weight：
|
0.23kg
|
|
The 1746-NIO4I also has a voltage input rating of -10 to 10 Volts DC and a 760 KOhms voltage impedance at a resolution of 305 microVolts per Least Significant Bit (LSB). It also has an accuracy of +/- 0.504%, and a drift accuracy and error of +/- 63 ppm/degree Celsius and +/- 57 ppm/degree Celsius. The 1746-NIO4I offers overvoltage at either 220 Volts AC (RMS) or 220 Volts DC (continuous). The current outputs have a load range of 0 to 500mA with its normal range at 0-20 mA and a 5% over-range capability at 2.56348 microA per LSB signal resolution.
|
|
The 1746-NIO4I also has an overall accuracy of ±0.541% with a drift accuracy of ±70 ppm/degree Celsius and a gain and offset error of ±0.516% and +/-12 LSB. The entire module has a 500 Volt-tested isolation between fields in the wiring-to-backplane isolation and it has an aggregate update time of 512 microSeconds for all channels. The 1746-NIO4I’s operational temperature ranges between 0 and 60 degrees Celsius at a 5 to 95% non-condensing relative humidity.
|
