Technical Specifications for 1746-NO4I
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Input Current
|
0 to +20 mA
|
|
Part Number/Catalog No.
|
1746-NO4I
|
Input Voltage
|
5-24 Volts DC
|
|
Module Type
|
Analog Output Module
|
Backplane Current
|
195 milliamps
|
|
Manufacture Year
|
2022
|
Power Dissipation
|
6.05 Watts
|
|
Product Package
|
Original Package
|
UPC
|
10662073735912
|

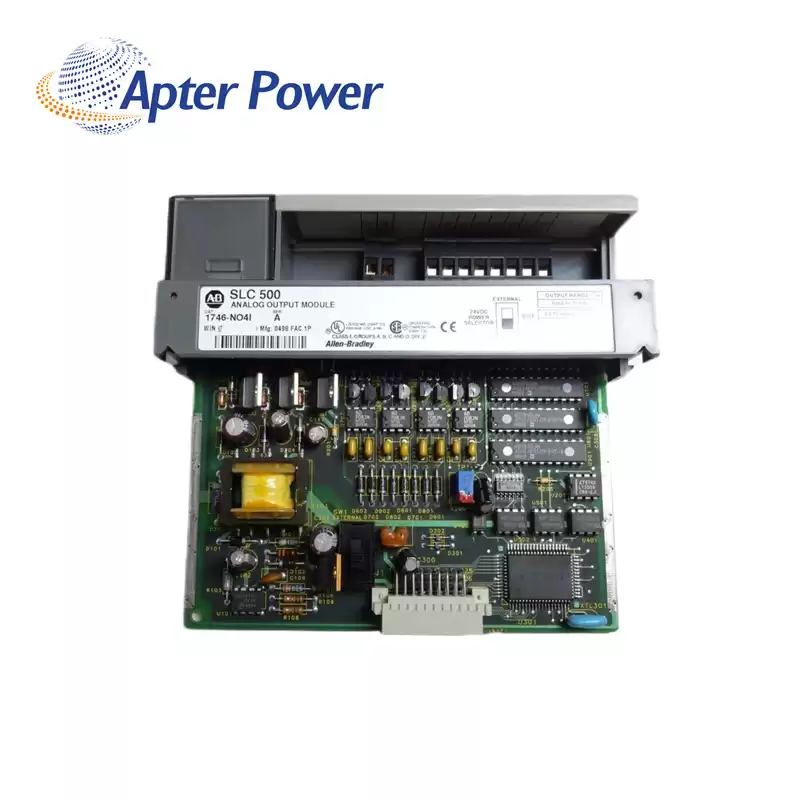

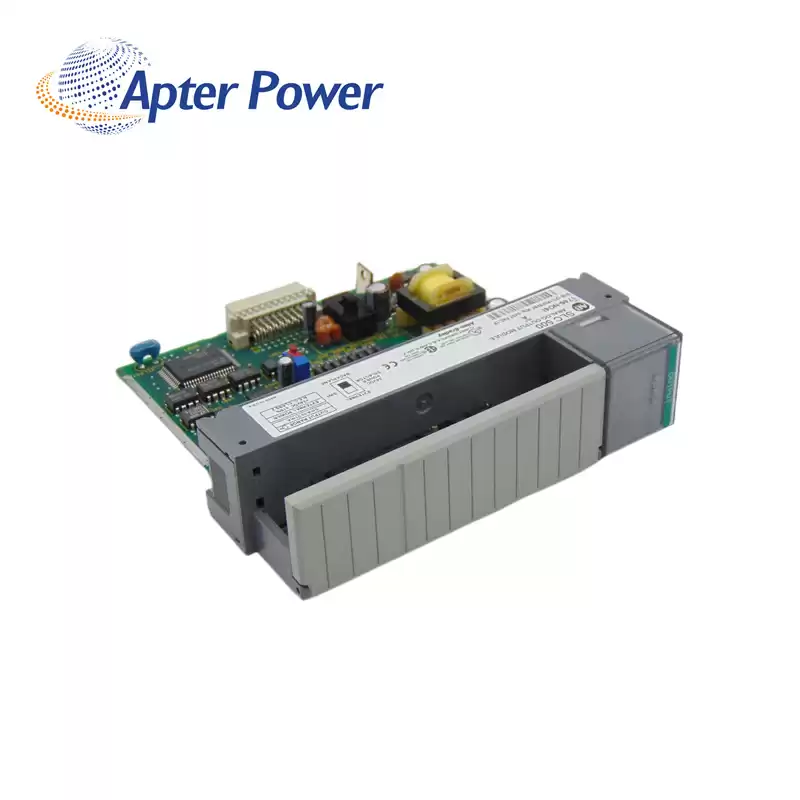

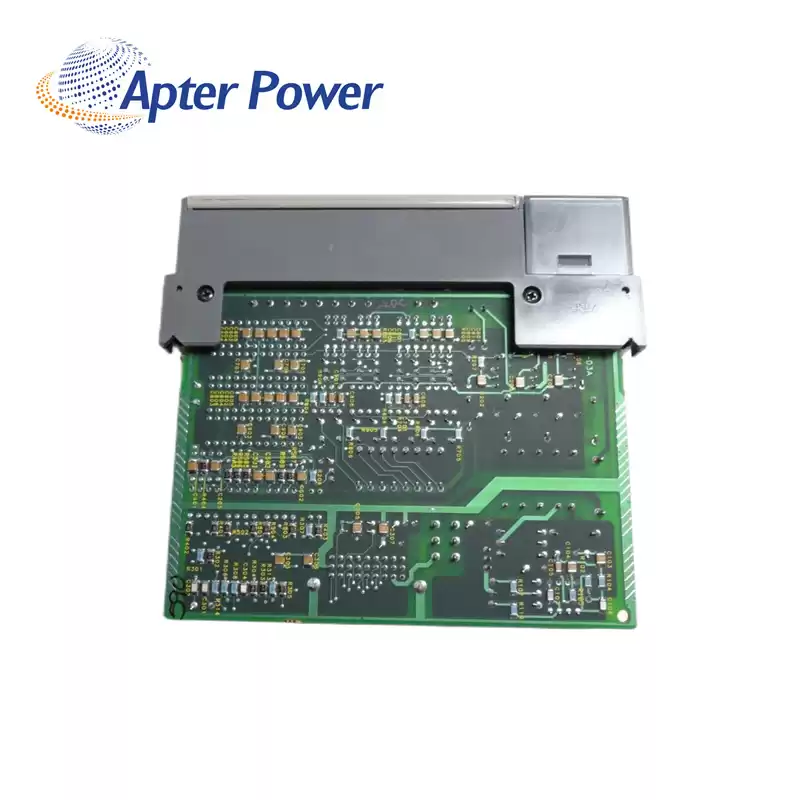

About 1746-NO4I
|
The 1746-NO4I is an SLC 500 Four (4) channel analog output module using a 16-bit 2’s complementary binary format. It has 4 current outputs that have an output range of 0 to +20 mA with full-scale current output of 21 mA. The backplane current draw of this module is 55 mA at 5 VDC while and 195 mA at 24 VDC while the over range capacity is 5% (0 to 21 mA and 1 LSB).
The 1746-NO4I also comes with an update response time of 512 µs for all the channels that are in parallel. The input step response of this module is 2.5 milliseconds at 95%. Its operating temperature is 0 to 60 degrees Celsius; Storage temperature is -40 to 85 degrees Celsius, and its non-condensing ambient relative humidity is 5 to 95%.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
