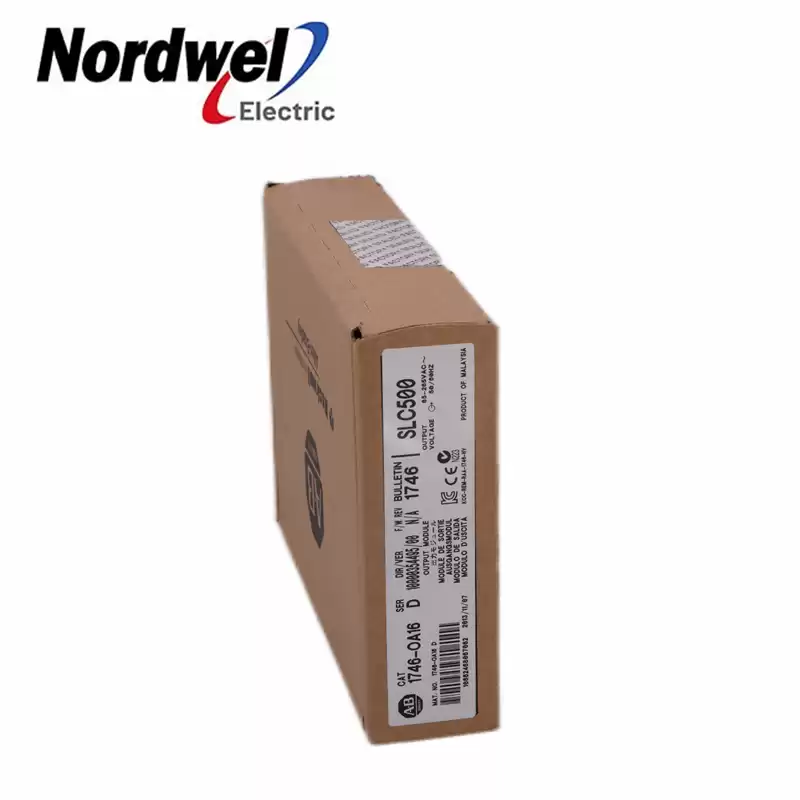

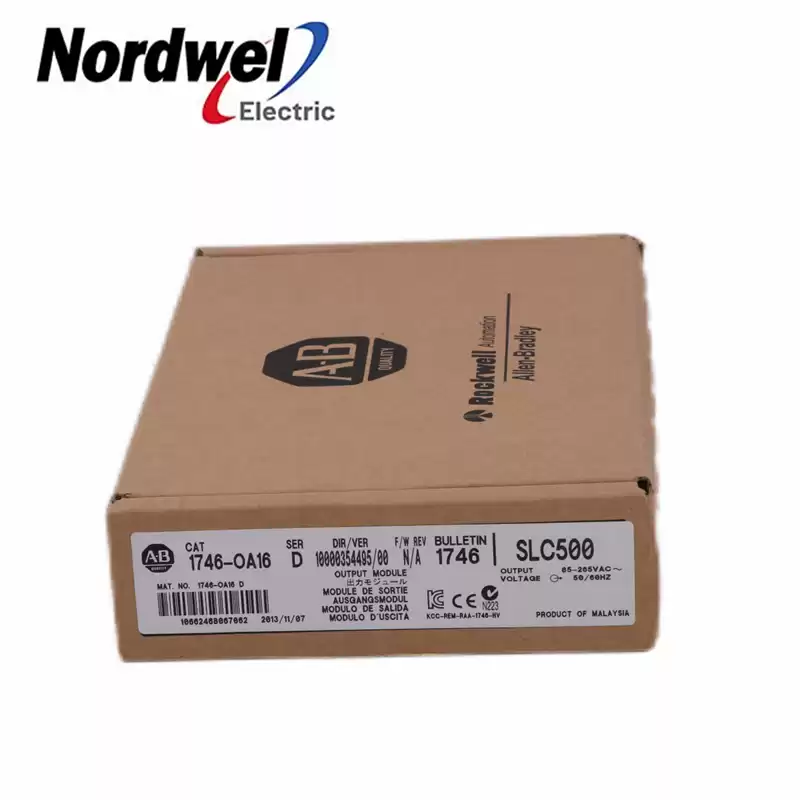

The 1746-OA16 is an SLC500 Discrete AC output module. This AC output module features
Sixteen (16) AC output channels in Two (2) groups of Eight (8) outputs each channel, providing signal
voltages of 120/240VAC with output voltage range of 85-265VAC.
Technical Specifications for 1746-OA16
Manufacturer Automation
Module Type Digital AC Output Module
Series SLC500
Part Number/Catalog No. 1746-OA16
No. of Outputs Sixteen (16) outputs
Output Voltage 120/240 VAC output
Operating Voltage Range 85-264 VAC
Output Delay Time, OFF to ON 11.0 ms
Output Delay Time, ON to OFF 1 ms
OFF state leakage current 2 mA
Load Current 10 mA
Backplane Current at 5.1 Volts 0.370 A
Continuous current per point 0.50 A @ 30 °C (86 °F) 0.25 A @ 55 °C (131 °F)
Continuous current per module, max 8.0 A @ 30 °C (86 °F) 4.0 A @ 60 °C (140 °F)
Voltage Range 85 to 265 Volts AC
Outputs 16
Current/Output at 30 degrees Celsius 0.5 Amps
Current/Output at 60 degrees Celsius 0.25 Amps
Backplane Current (5 Volts DC) 370 milliamps
Current/Module (30 degrees Celsius) 8 Amps
Applications General Purpose
Step Response 60 milliseconds in, 2.5 milliseconds out
Ambient Operating Temperature 32 to 140 degrees Fahrenheit
