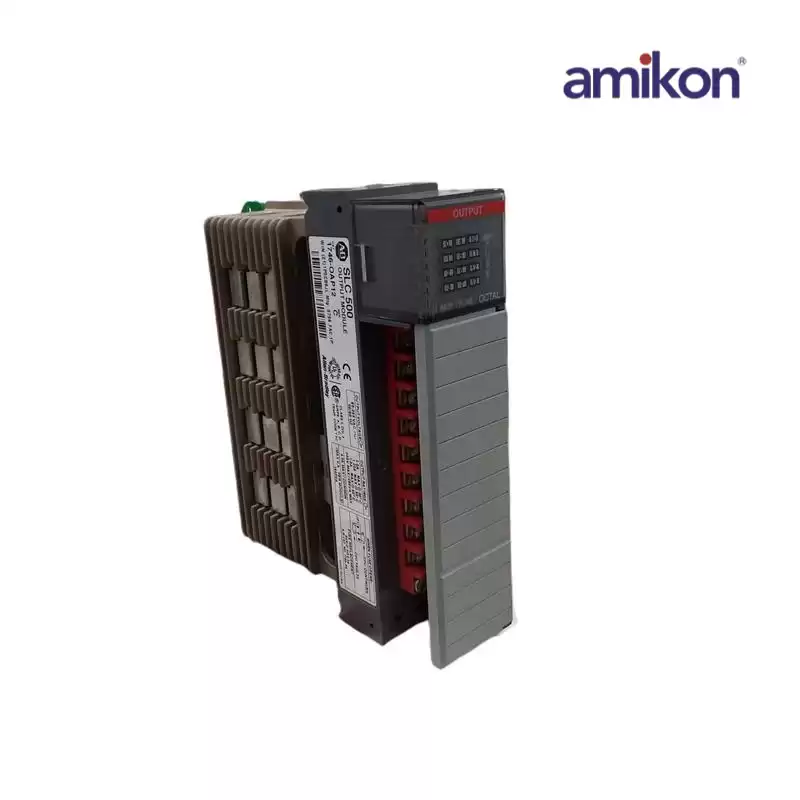

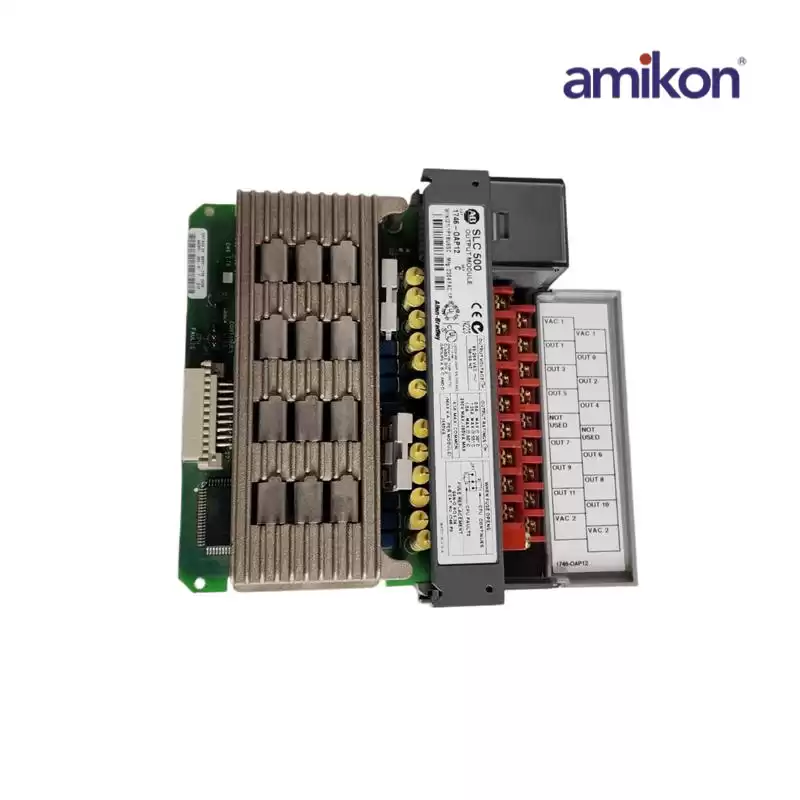

1746-OAP12
|
|
Dimensions ：
|
12.7cmx5cmx15.2cm
|
Weight：
|
0.3KG
|
|
The 1746-OAP12 module has a total output current of 9A at 30 deg. Celsius (86 deg. Fahrenheit) and it has a voltage loss of 1.2V DC at 2.0A. It has a surge current of 17A for 25ms repeatable every 2 seconds at 60 deg. Celsius on each point and it has a surge of 35A per common for 10ms.
The 1746-OAP12 has Twelve (12) output channels with Six (6) points per common with each common installed with an electronic fuse. Additionally, it provides an isolation as one group of output channels may still continue to operate even if the fuse of the other channel group is busted.
|
|
