Technical Specifications for 1746-OB32
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Voltage Range
|
5-50 Volts DC
|
|
Part Number/Catalog No.
|
1746-OB32
|
Outputs
|
32
|
|
Module Type
|
Digital Output Module
|
Applications
|
High Current
|
|
Manufacture Year
|
2021
|
Backplane Current
|
(5 Volts)190 mA
|
|
Product Package
|
Original Package
|
Current/Module
|
8 amps
|

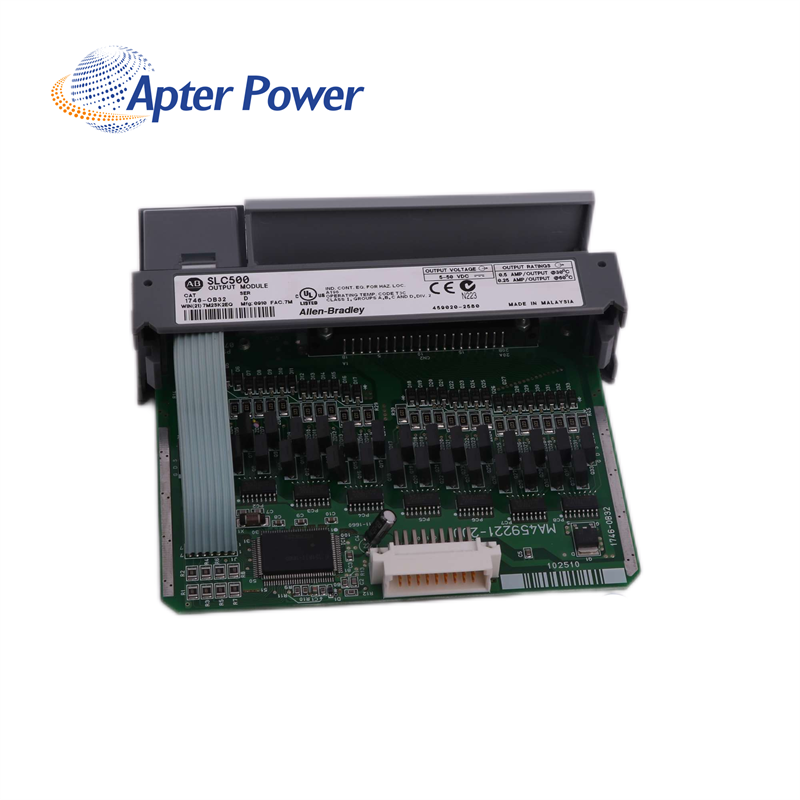

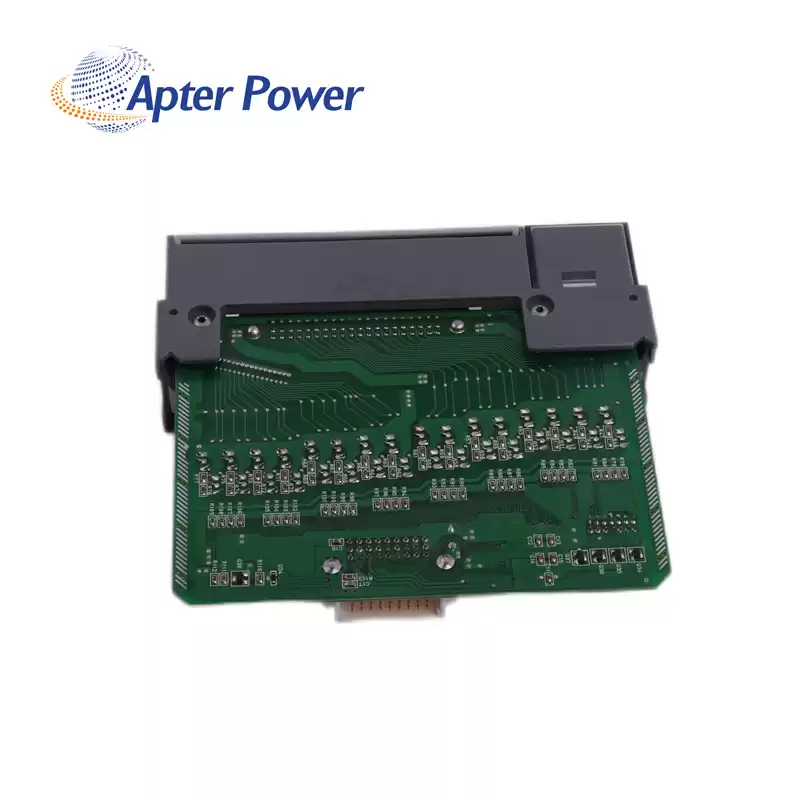

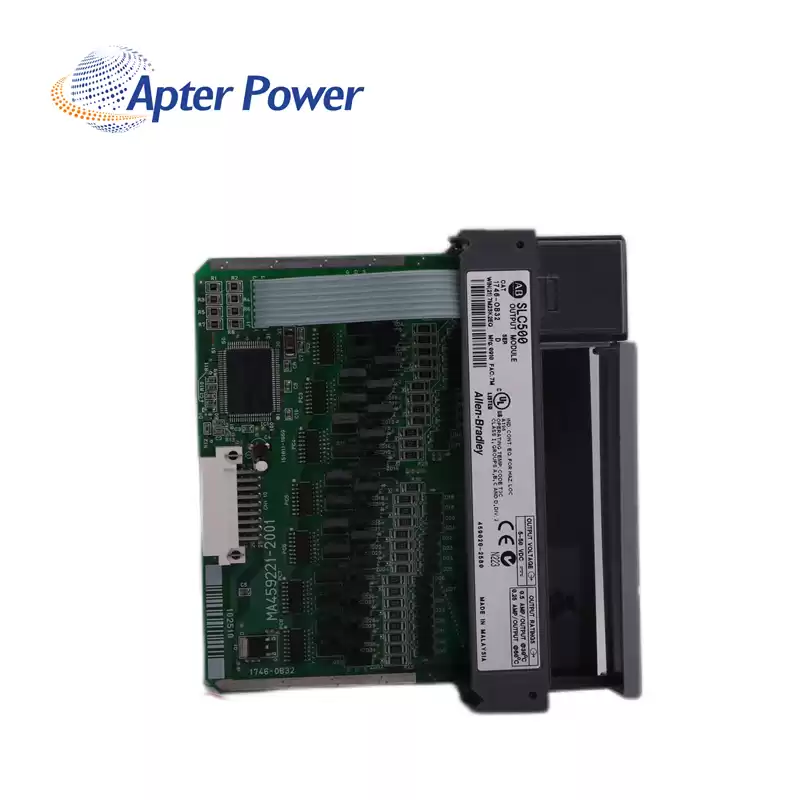

About 1746-OB32
|
The 1746-OB32 has 0.25A at 0-60 Deg. Celsius nominal current on each output point and the minimum current load of 1mA for every output channel. The module has an average 8A nominal current and a 2A current per common. The maximum voltage loss in the circuit in the ON state is 1.2V at 0.5A and it has a surge of 1.0A for 1ms repeatable every 2s across each output point, a power dissipation of 0.172W per point, and a total module heat dissipation of 6.45W.
The 1746-OB32’s operating temperature ranges between 0 and 60 deg. Celsius (32 and 140 deg. Fahrenheit) at 5-95% non-condensing humidity and it can withstand an operating shock and vibration of 30G and 2.5G respectively at 10-200Hz.
The 1746-OB32 module draws 0.19A of backplane current at 5V DC and it provides an output circuit isolation tested at 1500V AC for 1 minute. It has a maximum signal delay time of 0.1ms in ON and 1ms in OFF mode and the maximum circuit current leakage in the OFF state is 1mA.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
