Decription:

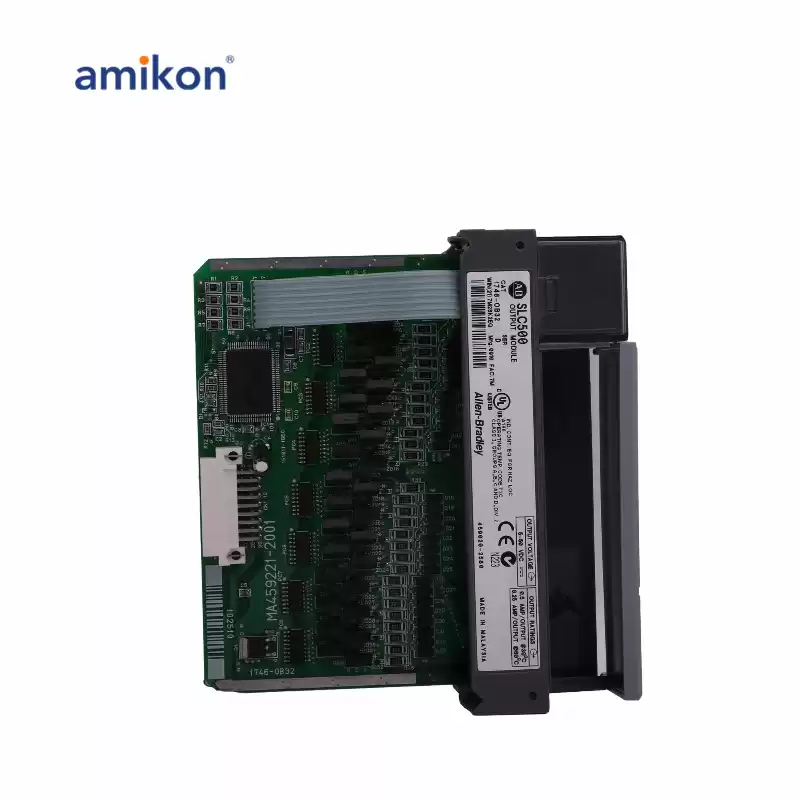

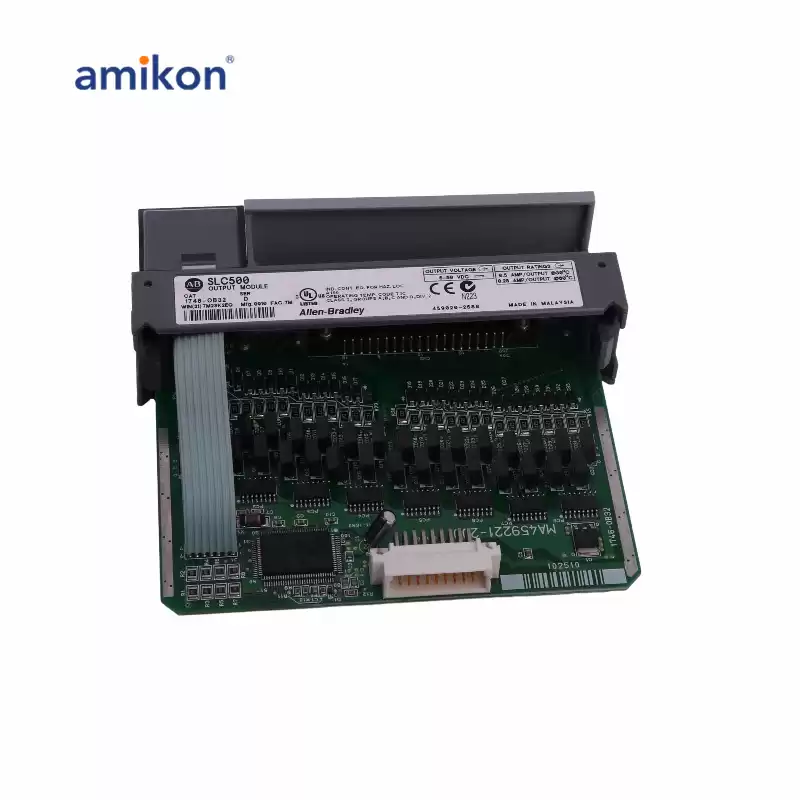

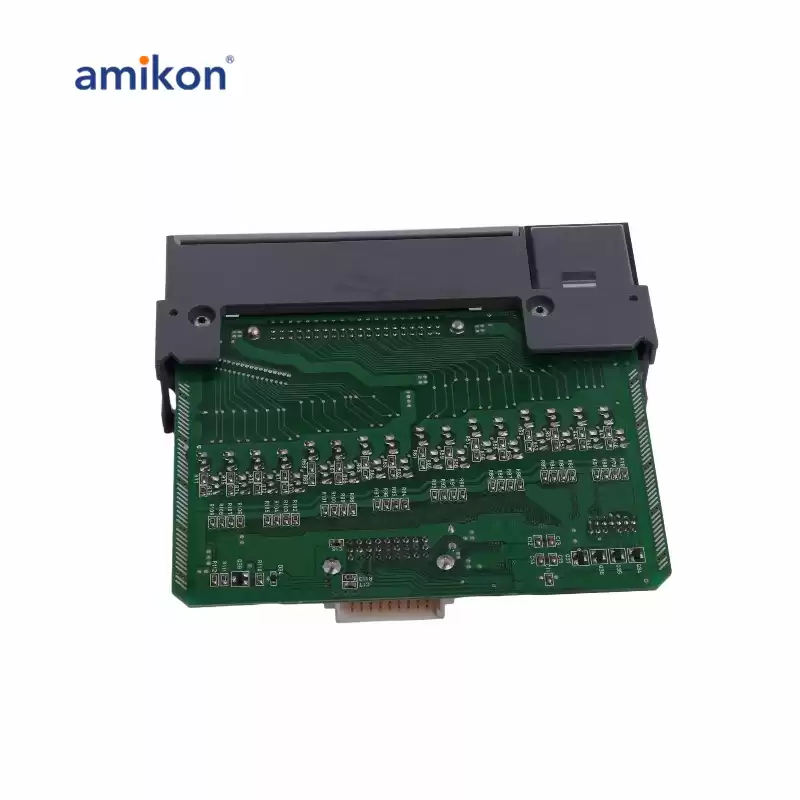

The 1746-OB32 is a SLC 500 Digital DC Output Module that features thirty-two (32) 24VDC output channels. It is organized into two (2) input groups, each containing sixteen (16) points. This module can be installed in both fixed and modular SLC 500 hardware systems. It is compatible with any available slot of the 1746 chassis, except for slot 0. Periodic inspection for wear and tear is recommended, particularly if the module is used in hazardous environments.
|
Specification
|
Details
|
|
Part Number/Catalog No.
|
1746-OB32
|
|
Series
|
SLC 500
|
|
Module Type
|
Digital DC Output Module
|
|
Outputs
|
32
|
|
Voltage Range
|
5-50 Volts DC
|
|
Current/Output
|
0.5-0.25 amps
|
|
No. of Outputs
|
Thirty-Two (32)
|
|
Current/Module
|
8 amps
|
|
Points Per Common
|
Sixteen (16)
|
|
Backplane Current (5 Volts)
|
190 milliamps
|
|
Nominal Output
|
24VDC
|
|
Applications
|
High Current
|
Packing & Delivery:
|
1)100% full New! - Original Factory Seal !
|
|
2)Warranty: 1 year!
|
|
3)Package: Original packing with cartons.
|
|
4)Delivery time: Shipped in 3 days after payment
|
|
5) All the goods will be tested before shipment.
|
