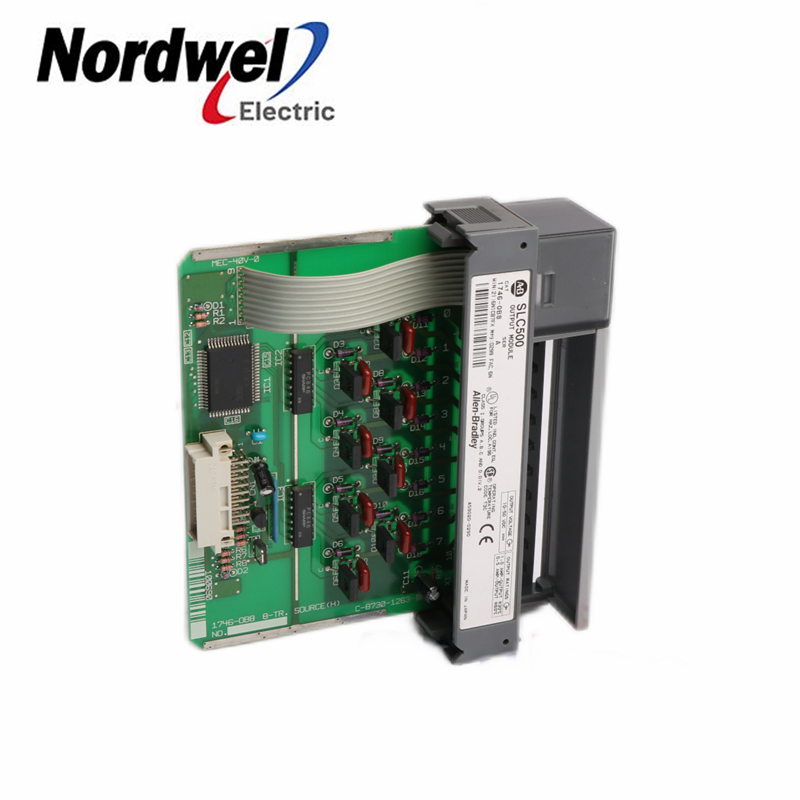

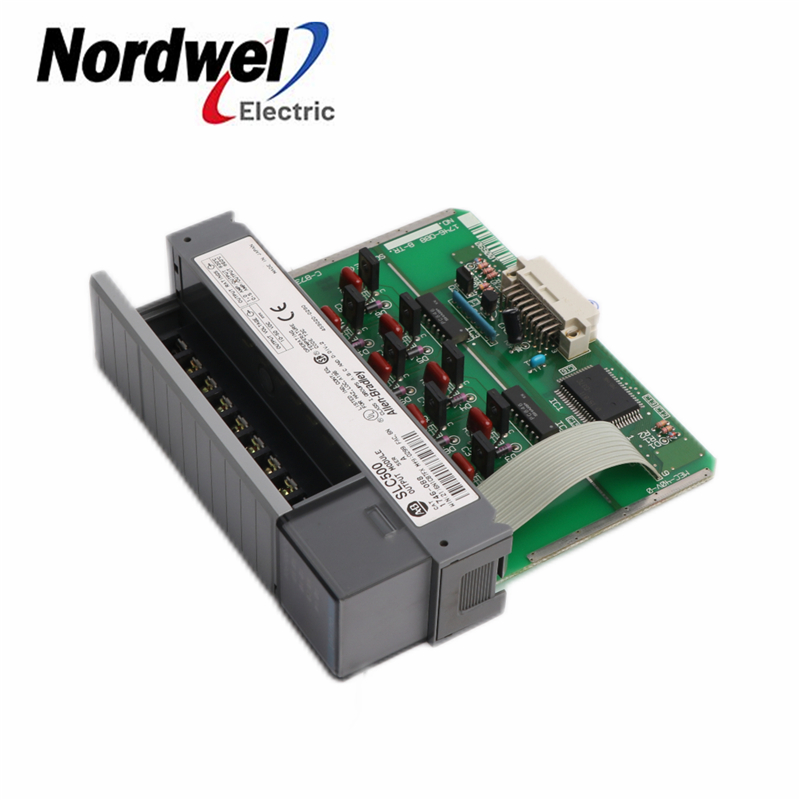

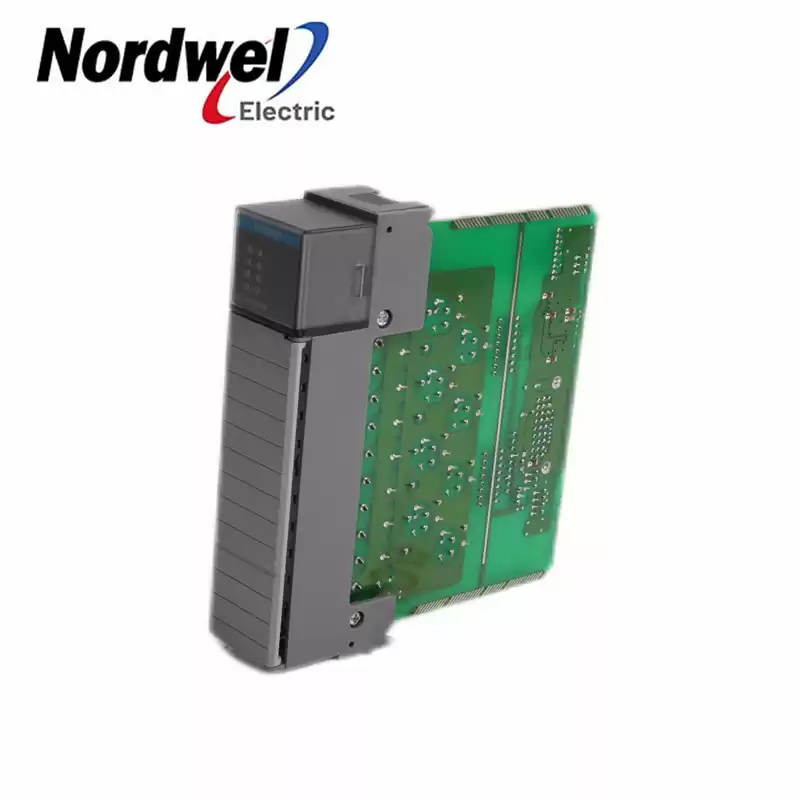

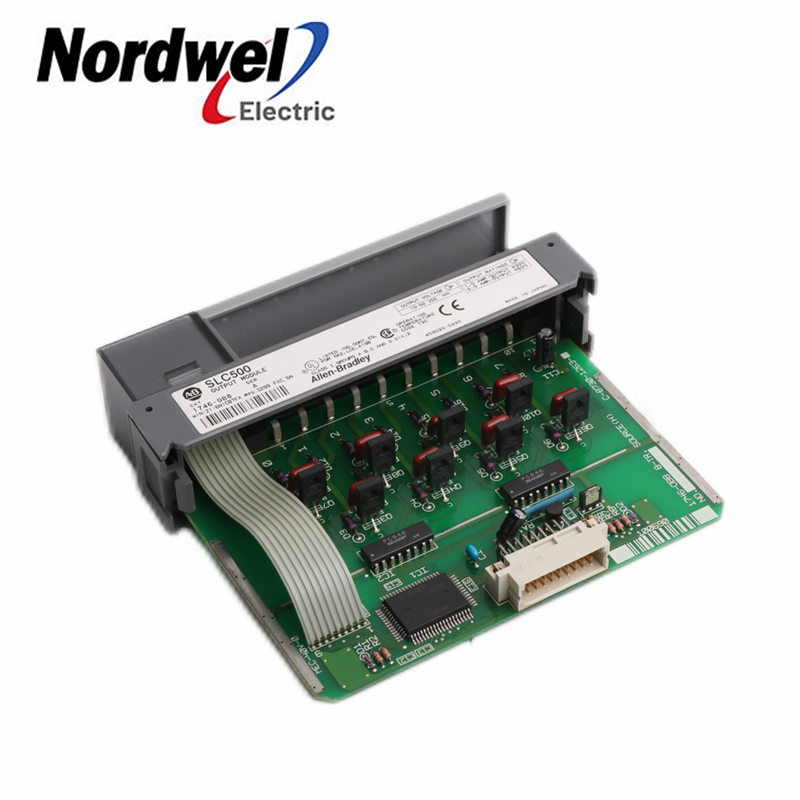

The / Automation 1746-OB8 output module is an 8-channel output module from the
SLC 500 product line. It dissipates 6.9 Watts of total heat during operation and it dissipates 0.775 Watts of
heat per output point. The 1746-OB8 output module is a DC output module with a voltage rating of 24 Volts DC.
Its backplane current consumption rating is 0.135 Amps at 5 Volts DC and it is 0 Amps at 24 Volts DC. The
1746-OB8 output module can withstand up to 3 Amps of surge current per output point for up to 10 milliseconds.
Technical Specifications for 1746-OB8
Manufacturer Automation
Brand
Part Number/Catalog No. 1746-OB8
Series SLC 500
Module Type Digital DC Output Module
Voltage Range 10-50 Volts DC Source
Outputs 8
Current/Output 1 or 0.5 amps
Current/Module 8 or 4 amps
Backplane Current (5 Volts) 135 milliamps
Applications Electronically Fused DC Outputs
Applications High Current
Step Response 60 milliseconds in, 2.5 milliseconds out
