Technical Specifications for 1746-OV16
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Input Current
|
1.2V at 0.5 A
|
|
Part Number/Catalog No.
|
1746-OV16
|
Input Voltage
|
10-50 Volts DC
|
|
Module Type
|
Digital Output Module
|
Backplane Current
|
480 milliamps
|
|
Manufacture Year
|
2022
|
Power Dissipation
|
6.05 Watts
|
|
Product Package
|
Original Package
|
UPC
|
10662072745585
|

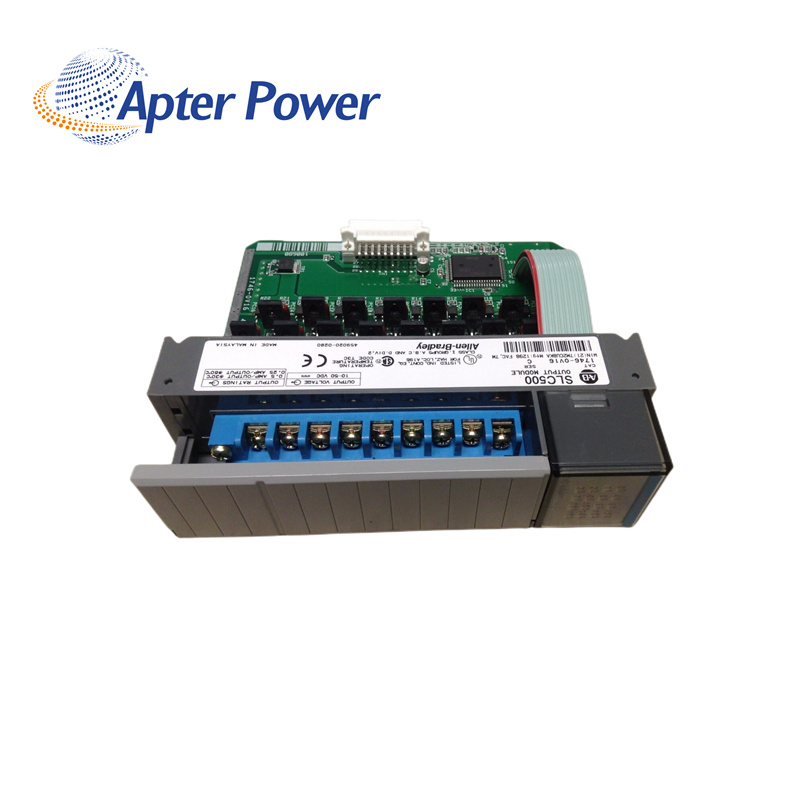

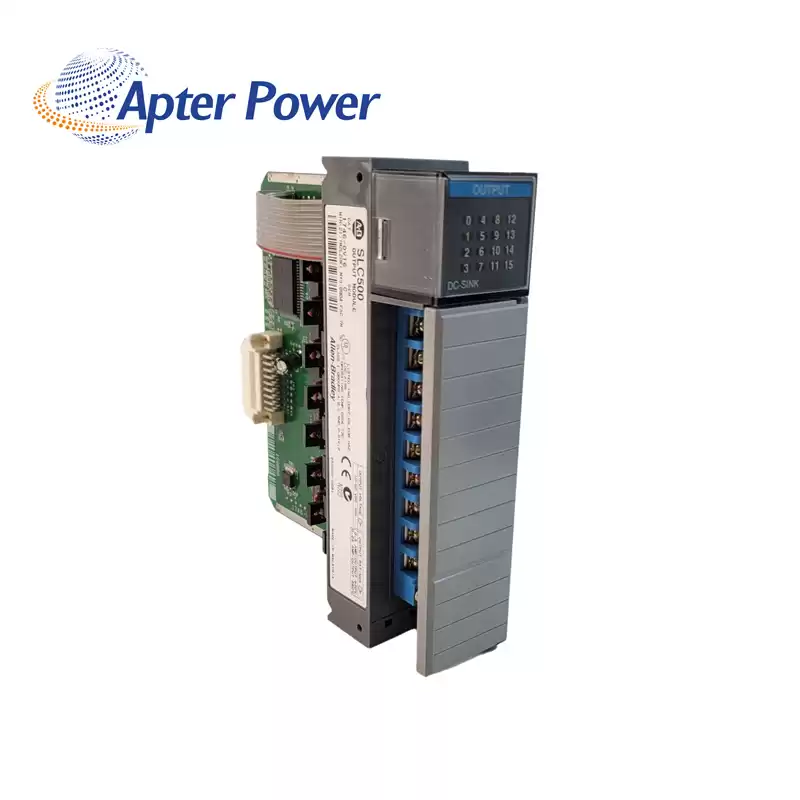

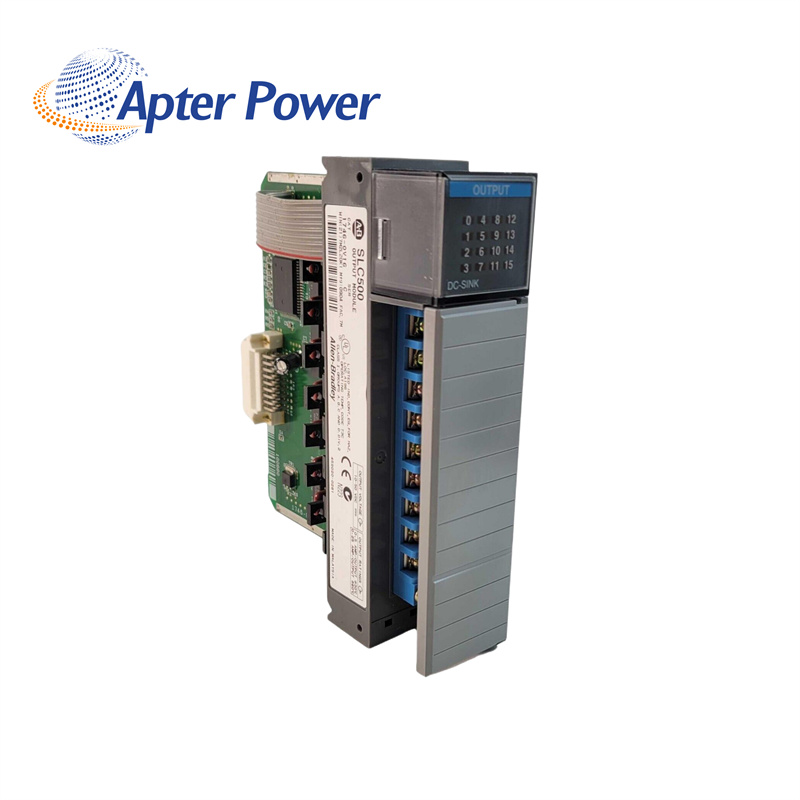

About 1746-OV16
|
The 1746-OV16 is installed to an SLC 500 chassis. It is a single slot-width module that directly attached to a Modular style SLC 500 hardware. It comes with a removable terminal block that is pre-installed to the module. This terminal block may be removed from the module to implement easier and faster wiring activity.
The 1746-OV16 has a maximum signal delay of 0.1ms in the On-state and of 1ms in the Off-state. It has a continuous current per output and per module of 0.5A and 8A at 30°C and 0.25A and 4A at 60°C, respectively. The 1746-OV16 has a maximum Off-state leakage of 1 mA and a maximum On-state voltage drop of 1.2V at 0.5A and 3A for 10ms maximum surge current per point.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to repair.
