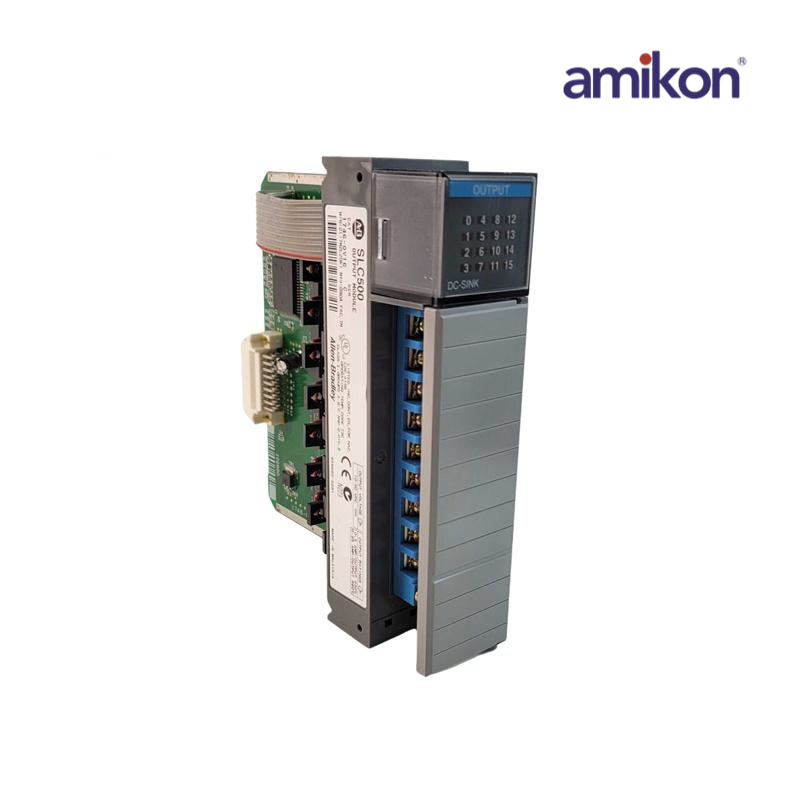

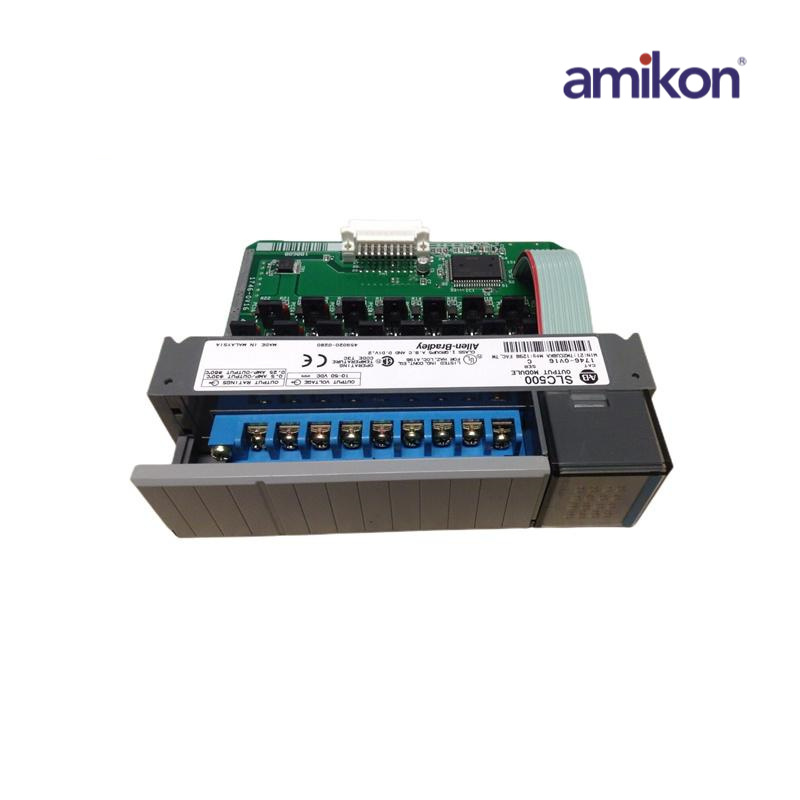

1746-OV16
|
|
Dimensions ：
|
13.2cmx2.5cmx18cm
|
Weight：
|
0.24KG
|
|
The 1746-OV16 is installed to an SLC 500 chassis. It is a single slot-width module that directly attached to a Modular style SLC 500 hardware. It comes with a removable terminal block that is pre-installed to the module. This terminal block may be removed from the module to implement easier and faster wiring activity.
The 1746-OV16 has a maximum signal delay of 0.1ms in the On-state and of 1ms in the Off-state. It has a continuous current per output and per module of 0.5A and 8A at 30°C and 0.25A and 4A at 60°C, respectively. The 1746-OV16 has a maximum Off-state leakage of 1 mA and a maximum On-state voltage drop of 1.2V at 0.5A and 3A for 10ms maximum surge current per point.
|
|
