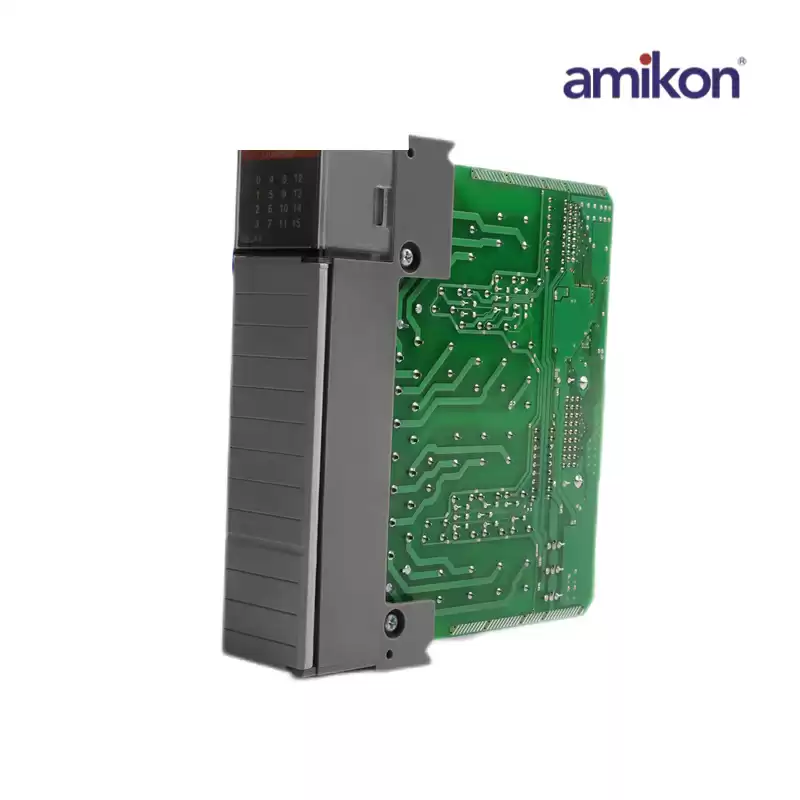

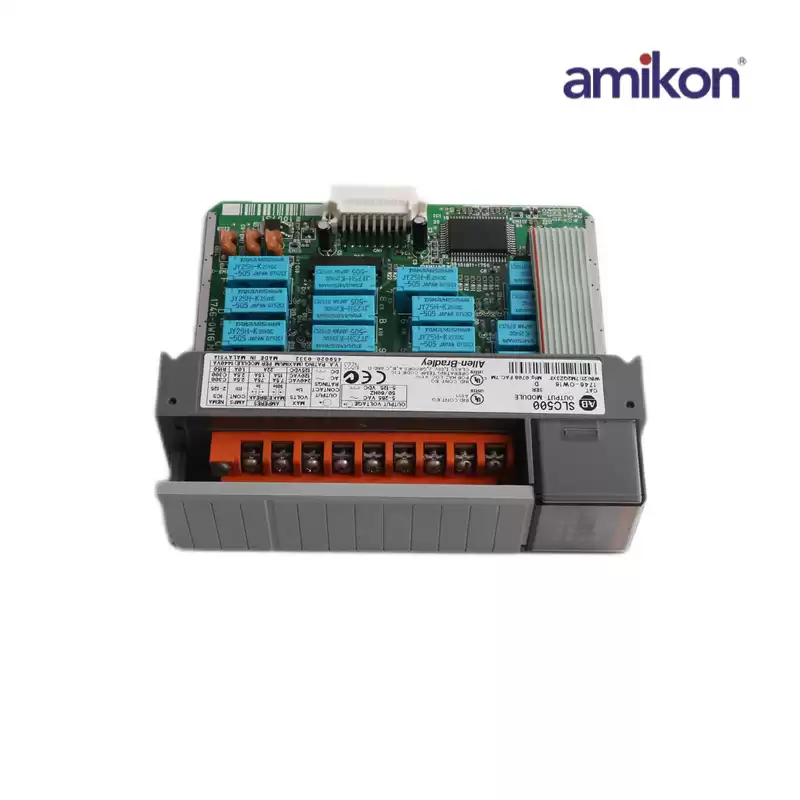

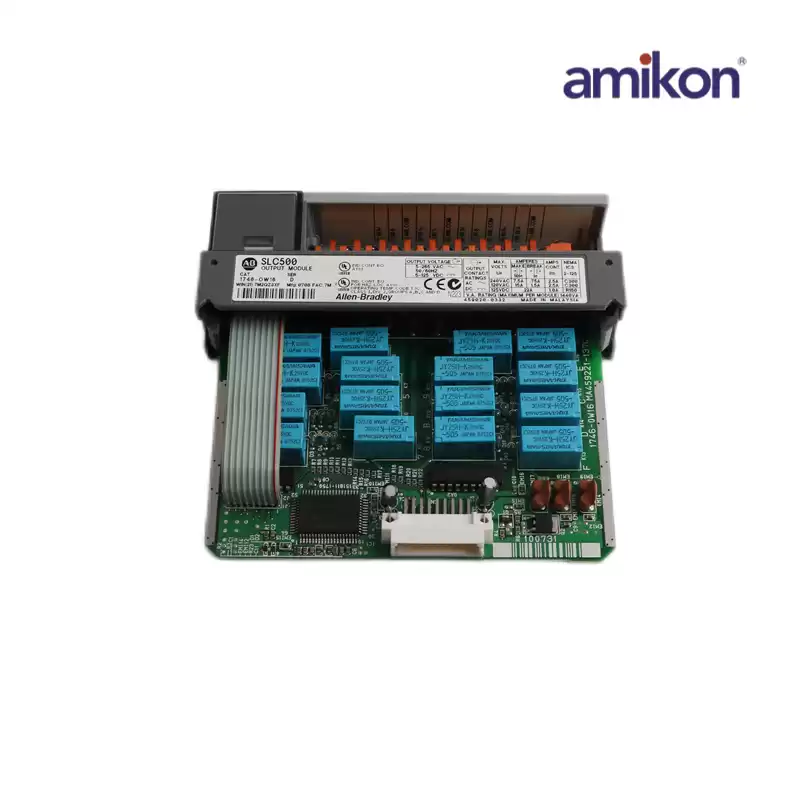

1746-OW16 SLC 16 Point Digital Output Module
|
|
Dimensions ：
|
3.5cmx13cmx14cm
|
Weight：
|
0.32kg
|
|
Full Description: 1746-OW16 SLC 500 16-Channel Relay Output Module. Relay contact outputs; 8 outputs per common; Number of Outputs: 16 (2 sets of 8); Operating Voltage: 5-265V AC
|
|
The 1746-OW16 has two operating voltages: 5 - 125V DC and 5 - 265V DC. It has 10 ms signal delay in both the ON and OFF states at the maximum resistive load. The 1746-OW16 is easy to use. It can be configured using compatible Windows programming software or the hand-held terminal (HHT). Therefore, you can set up the module by using your computer.
The 1746-OW16 has a higher backplane current consumption compared to other relay output modules. It has 0.17A backplane current consumption at 5V DC and 0.18A backplane current consumption at 24V DC. It has a minimum load current 10 mA at 5V DC.
The 1746-OW16 has maximum thermal dissipation of 5.7 W. It also has maximum continuous current per module of 16 A. Please note the continuous current per module to ensure that the continuous current per module is limited so that the module power does not exceed 1440VA.
|
