1746-OW4
|
|
Dimensions ：
|
12.7cmx5cmx15.2cm
|
Weight：
|
0.3KG
|
|
The 1746-OW4 module has 2 ranges of operating voltages: 5-125V DC and 5-265V DC. The signal delay for both the ON and the OFF state is 10 ms. The backplane current consumption of this module at both 5V DC and 24V DC is 0.045A for each. The minimum load current of this module is 1 mA at 5V DC. Please refer to the user manual to learn more about the continuous current per point in this module.

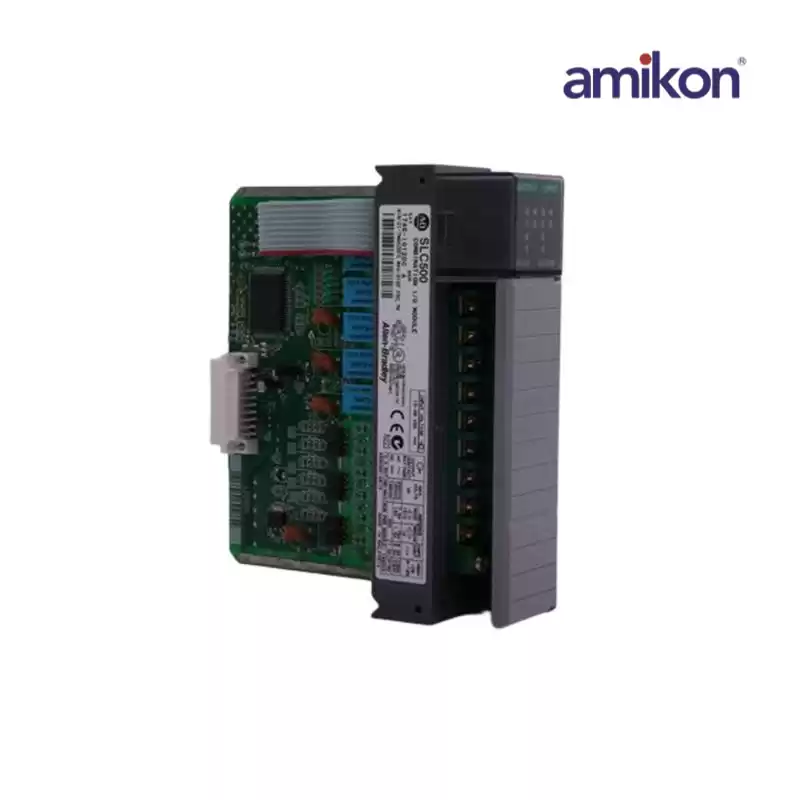

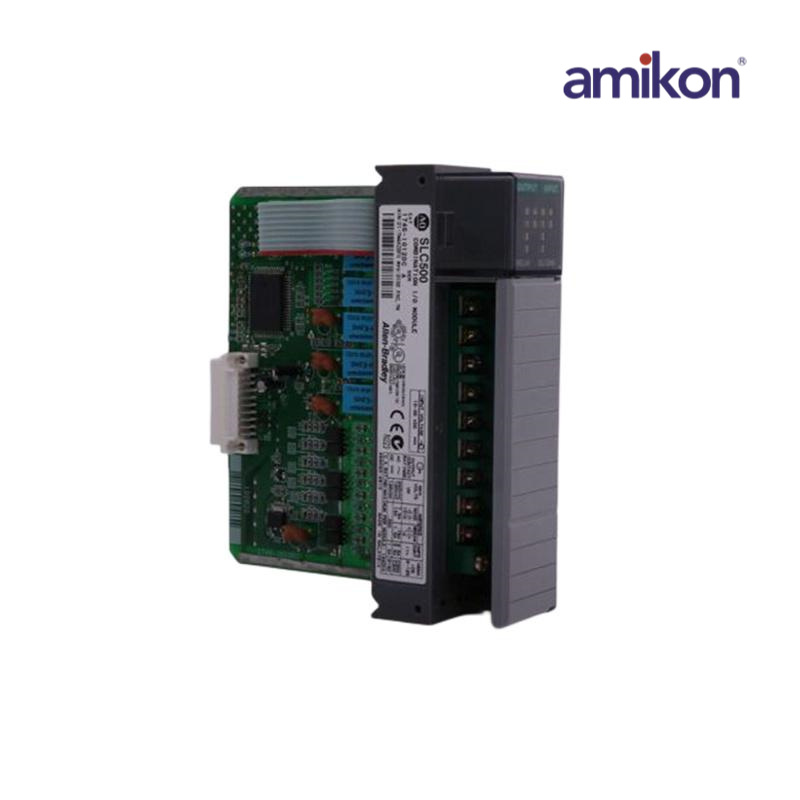

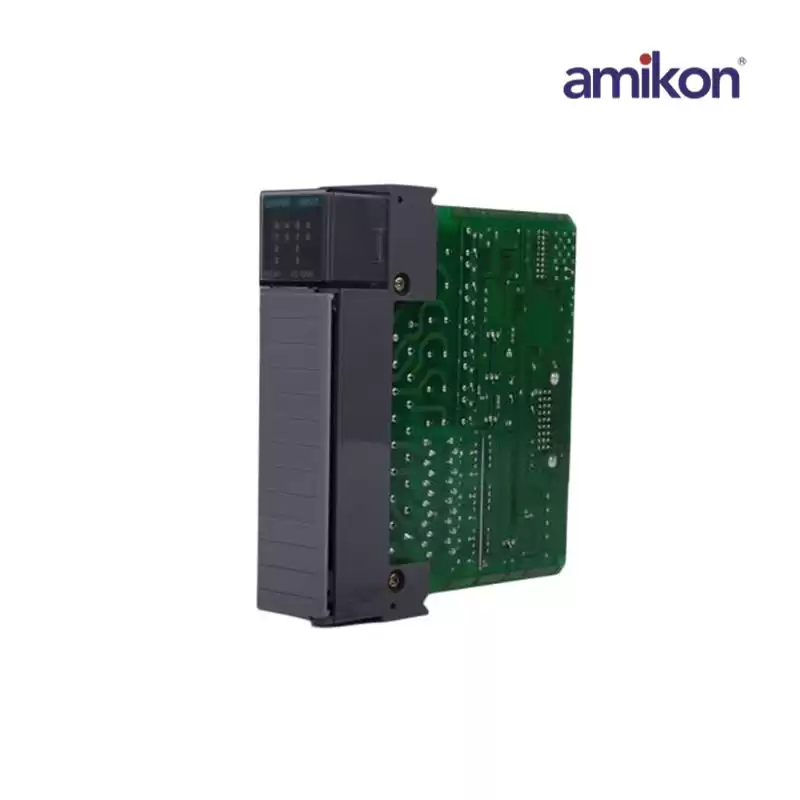

The 1746-OW4 is a relay contact output module. It has 4 relay contact outputs and no relay contact inputs. It has 4 common points. It is an AC/DC relay output module that is suitable for any application of relay contact type outputs.
|
|
