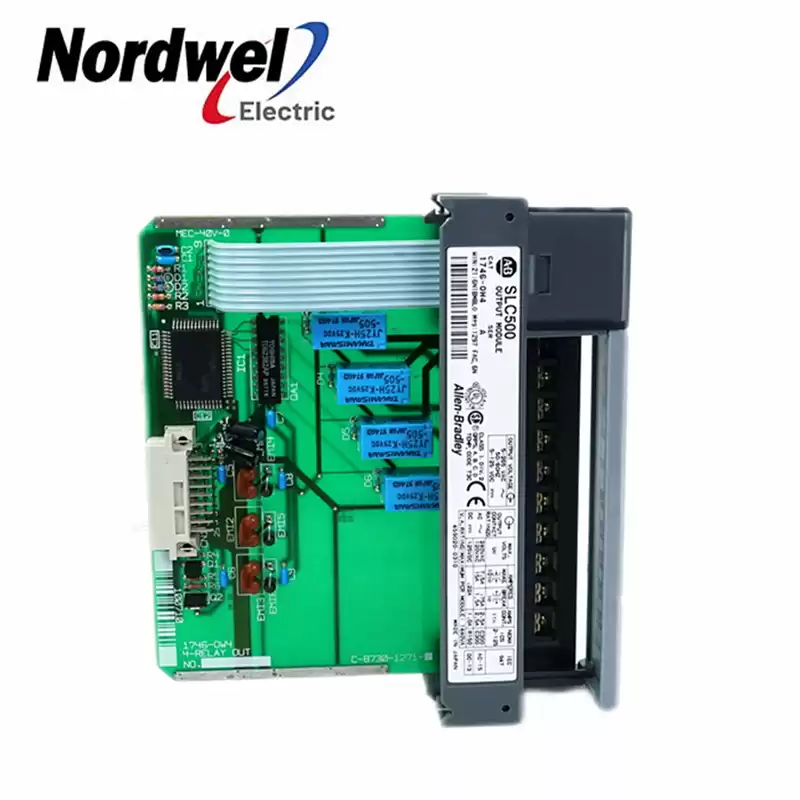

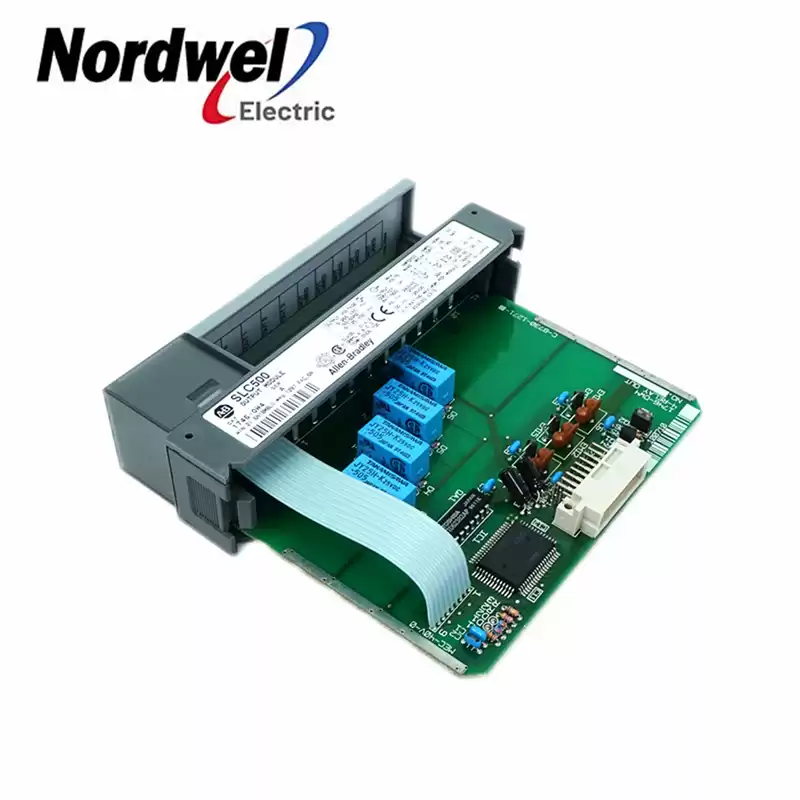

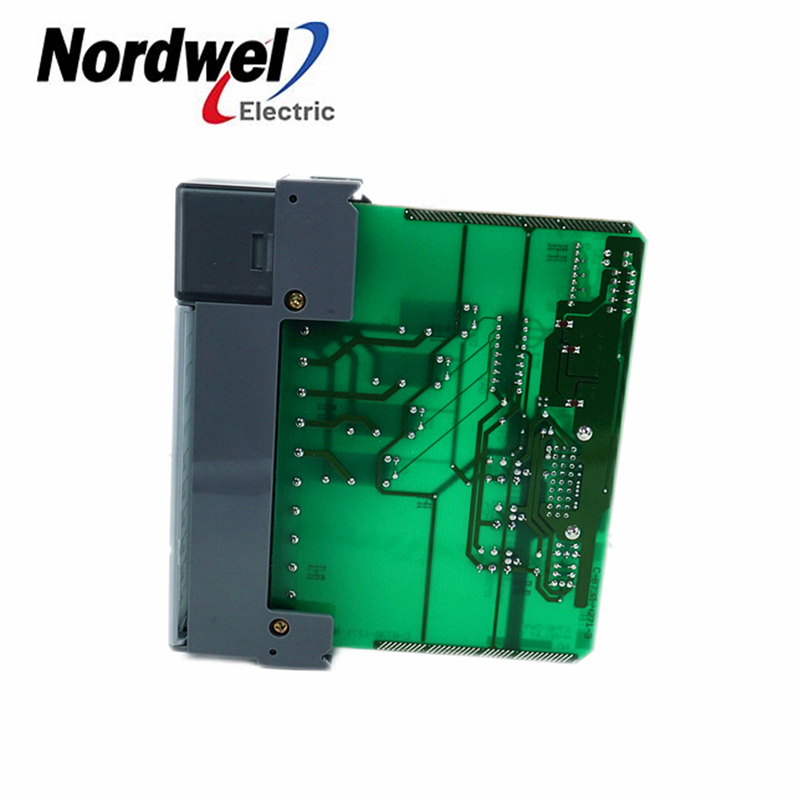

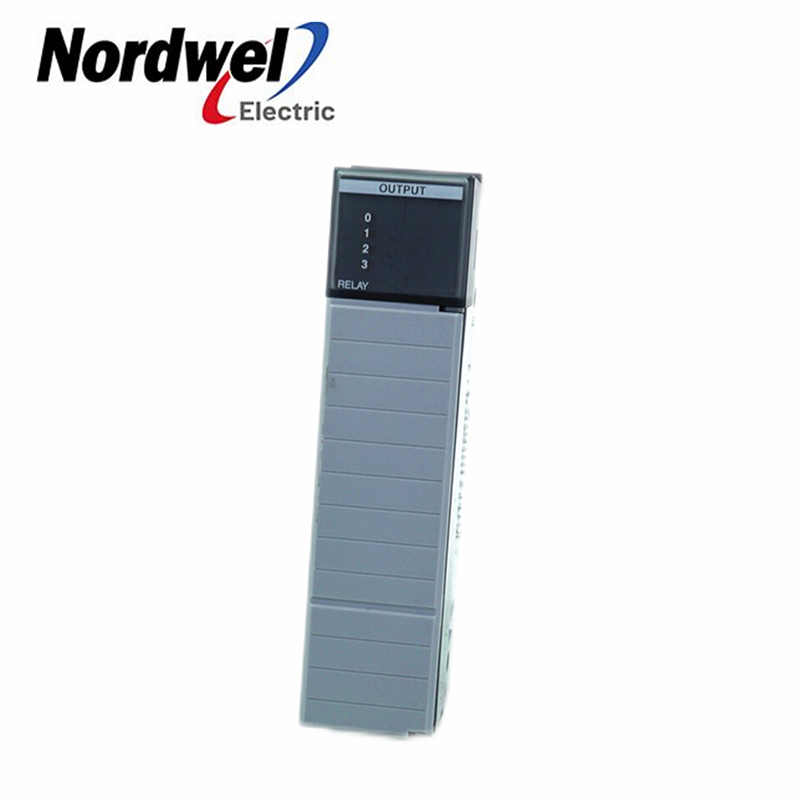

The 1746-OW4 is a relay contact output module. It has 4 relay contact outputs and no relay
contact inputs. It has 4 common points. It is an AC/DC relay output module that is suitable for any application
of relay contact type outputs. The relay contact module is vulnerable to chemical exposure because it may
degrade the sealing materials. Therefore, the 1746-OW4 is recommended to inspect the module periodically
to avoid any degradation and to quickly replace the module if there is any degradation.
Technical Specifications for 1746-OW4
Manufacturer Automation
Brand
Part Number/Catalog No. 1746-OW4
Series SLC 500
Module Type Digital Contact Output Module
Operating Voltage 5-265 Volt AC or 5-125 Volts DC
Outputs 4
Output Types N.O. Relay Contact
Current/Output (120 VAC) 1.5 amps
Current/Output (24VDC) 1.2 amps
Backplane Current 45 milliamps
Applications Relay Contact Outputs
Step Response 60 milliseconds in, 2.5 milliseconds out
