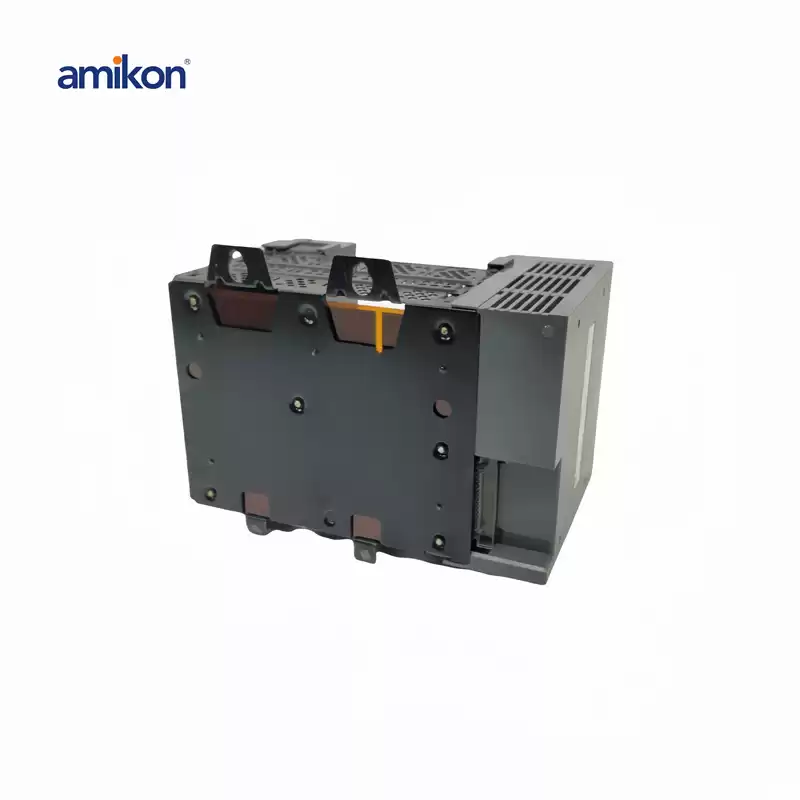

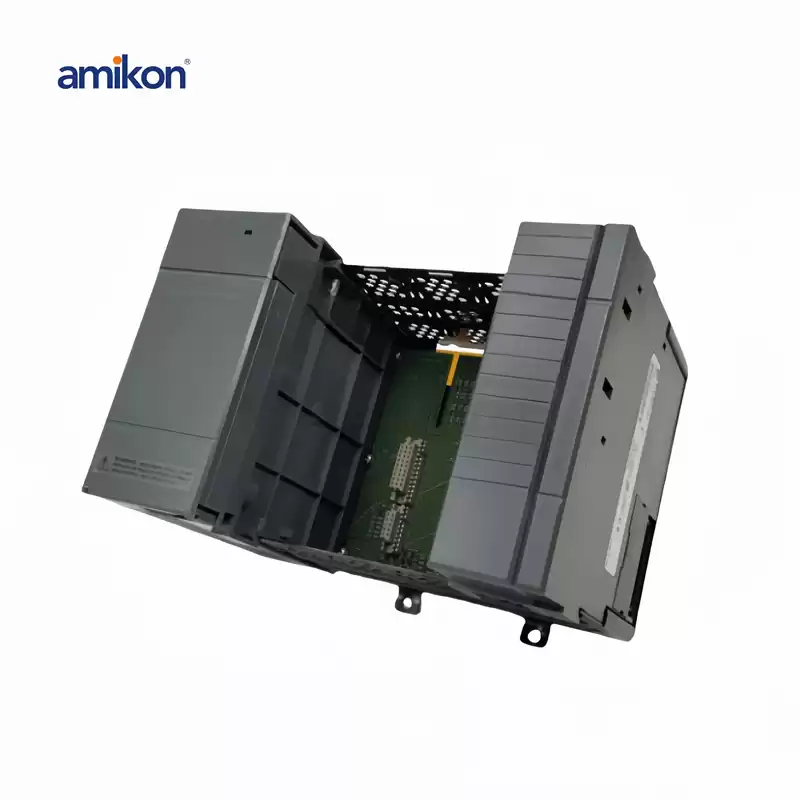

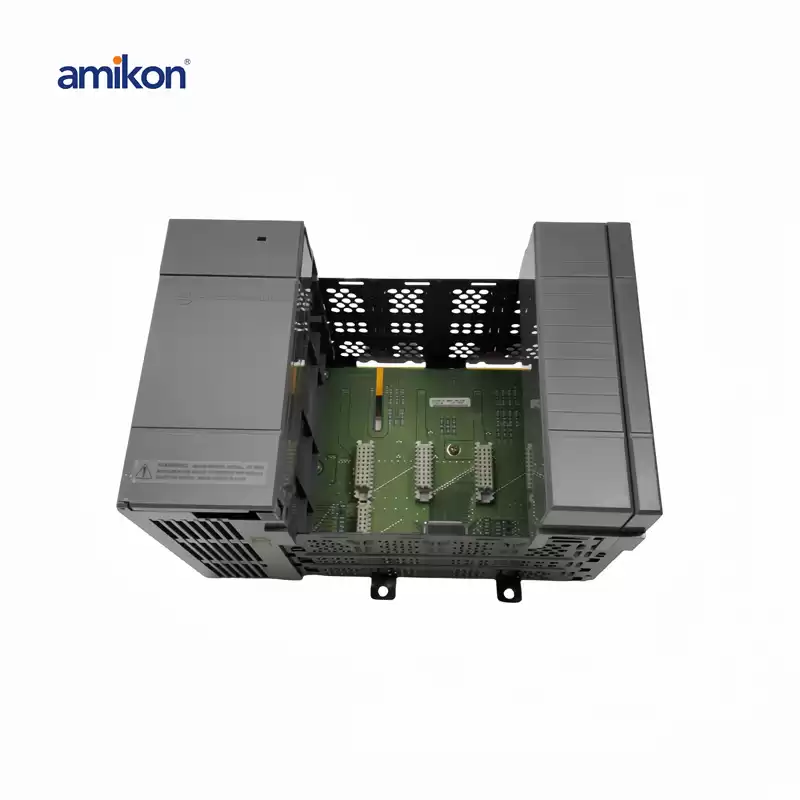

1746-P1 Power Supply Rack Module
Payment Terms: T/T (Bank Wire Transfer)
Minimum Order Quantity: 1pc
Weight: 3.24kg
Dimensions: 19cm x 32.5cm x 11cm
Product Description
The 1746-P1 is SLC 500 controllers continue to operate (hold-up) for a short period of time if the input voltage to the power supply drops below the recommended operating voltage range.
The controller continues to scan the user program and control I/O during this time.
General Specifications
|
Attribute |
Product Model |
|
1746-P1 |
|
|
Line voltage |
85...132/170...265V ac 47...63 Hz |
|
Typical line power |
135VA |
|
Inrush current, max |
20 A |
|
Internal current capacity |
2 A at 5V dc 0.46 A at 24V dc |
|
24V dc user-power current capacity |
200 mA |
|
Temperature, ambient operating |
0...60 °C (32...140 °F) |
|
CPU hold-up time |
20 ms (full load) 3000 ms (no load) |
|
