1746-P2
|
|
Dimensions ：
|
5cmx13cmx7.6cm
|
Weight：
|
0.3KG
|
|

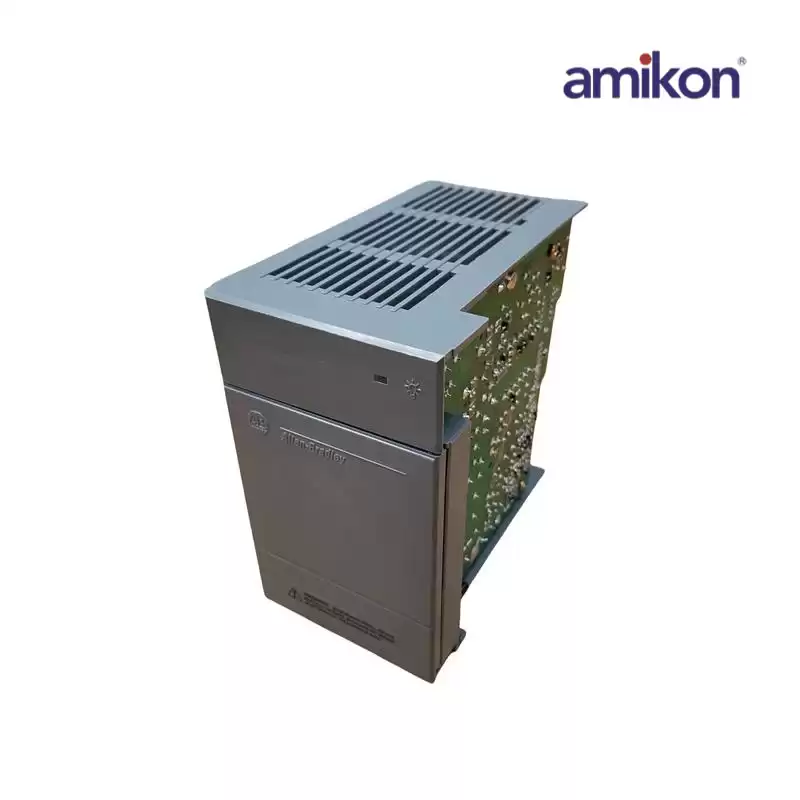

The 1746-P2 is a Power supply module primarily designed for use with the SLC 500 automation system platform. This power supply is installed in the leftmost of the SLC chassis.The installation location of this power supply is not included in the slot count. The slot counting starts with Slot Zero (0) which is reserved for the Programmable Logic Controller’s (PLC) processor or SLC 500 communication adapter.
The 1746-P2 is an SLC 500 modular power supply. It comes with an input voltage of 85-132 or 170-265V AC at 47-63 Hz. Its internal current capacity at 5V is 5 A and it is 0.96 A at 24V. This power supply also comes with a maximum user-supplied overcurrent protection of 15 A and a maximum inrush current of 20 A. It has a 180 VA typical line power requirement and an input terminal and backplane isolation of 1800V AC RMS for 1 s.
|
|
