The Allen-Bradley SLC 500 is a small chassis-based family of programmable
controllers, discrete, analog, and specialty I/O, and peripheral devices. The SLC 500
family delivers power and flexibility with a wide range of communication
configurations, features, and memory options.
The RSLogix 500 ladder logic
programming package provides flexible editors, point-and-click I/O configuration,
and a powerful database editor, as well as diagnostic and troubleshooting tools to
help you save project development time and maximize productivity.
The 1746-P3 is a 24V DC power supply. It contains an input voltage range from
19.2...28.8V AC. 1746P3 has a input power max. of 61W, and an inrush current
max. of 20A. Backplane output current is 3.6 A at 5V DC or 0.87 A at 24V DC.
The power supply contains two 14 AWG wires per terminal (maximum). The
dimensions for 1746P3 are 140 x 74 x 145mm (5.5 x 2.9 x 5.7 in.) and the
weight is 1.1kg (2.5lb).
|
|
|
|
|
Description
|
|
Specification
|
|
|
|
|
|
Temperature
|
|
Operating: 0…60 °C (32…140 °F)
|
|
|
Storage: -40…85 °C (-40…185 °F)
|
|
|
|
|
|
Humidity
|
|
5…95% without condensation
|
|
|
|
|
|
Vibration
|
|
Operating: 1.0 g at 5…2000 Hz
|
|
|
Non-operating: 2.5 g at 5…2000 Hz
|
|
|
|
|
|
Shock
|
|
Operating: 30 g (3 pulses, 11 ms) - for all modules except relay contact
|
|
|
Operating: 10 g (3 pulses, 11 ms) - for relay contact modules 1746-OWx and 1746-IOx combo
|
|
|
Non-operating: 50 g, 3 pulses, 11 ms
|
|
|
|
|
|
Free fall (drop test)
|
|
Portable, 2.268 kg (5 lb) or less at 0.762 m (30 in.), six drops
|
|
|
Portable, 2.268 kg (5 lb) or less at 0.1016 m (4 in.), three flat drops
|
|
|
|
|
|
Safety
|
|
Dielectric Withstand: 1500V ac (Industry Standard - UL 508, CSA C22.2 No. 142)
|
|
|
Isolation between Communication Circuits: 500V dc
|
|
|
Isolation between Backplane and I/O: 1500V ac
|
|
|
Flammability and Electrical Ignition: UL94V-0
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Allen Bradley 1746-P3
1746-P3 | Allen Bradley | PLC Power Supply SLC 500
Email:sales3@amikon.cn

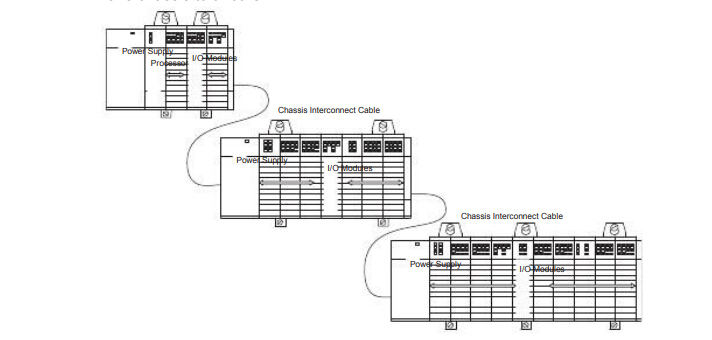

More complex systems can use:
distributed I/O.
multiple controllers joined across networks.
I/O in multiple platforms that are distributed in many locations and connected over
multiple I/O links.
