Technical Specifications for 1746-P5
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
420 Miliamperes
|
|
Part Number/Catalog No.
|
1746-P5
|
Input Voltage
|
125 Volts DC
|
|
Module Type
|
Power Supply Module
|
Inrush Current
|
20 amps
|
|
Manufacture Year
|
2022
|
Input Power
|
85 Watts
|
|
Product Package
|
Original Package
|
UPC
|
10612598594855
|
About 1746-P5
|

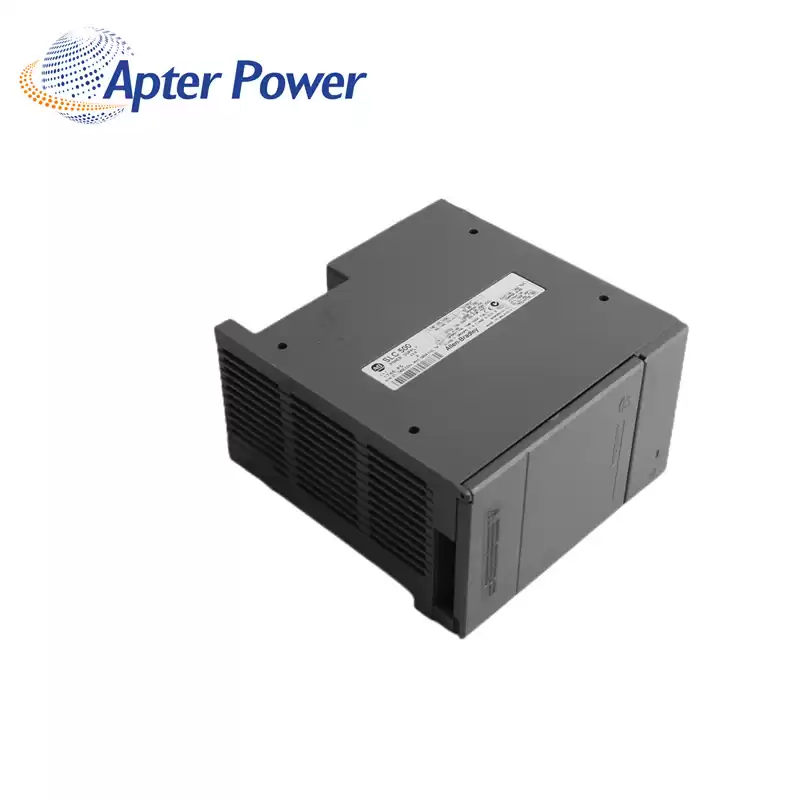

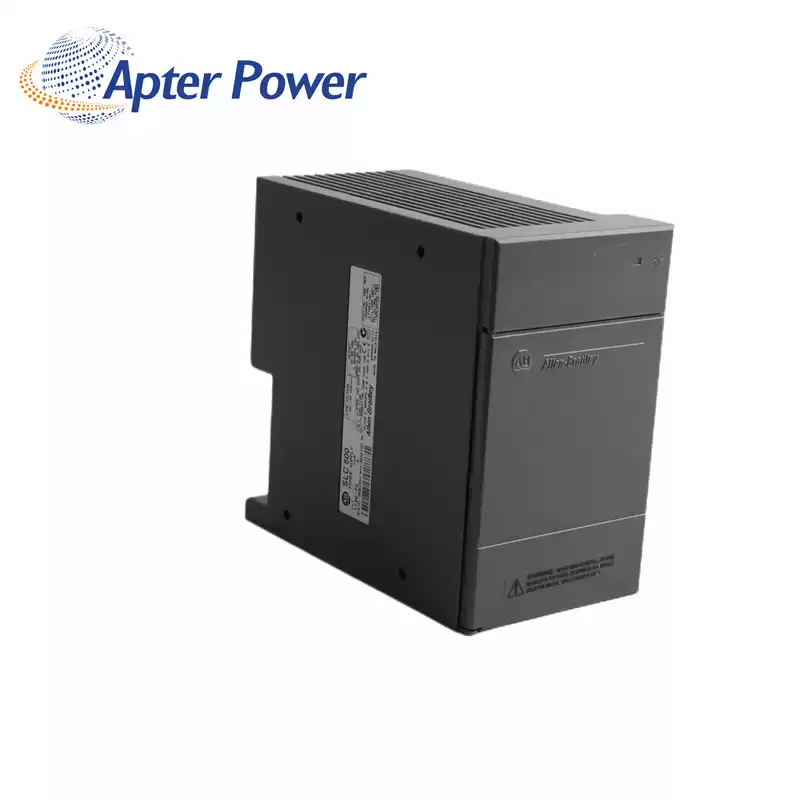

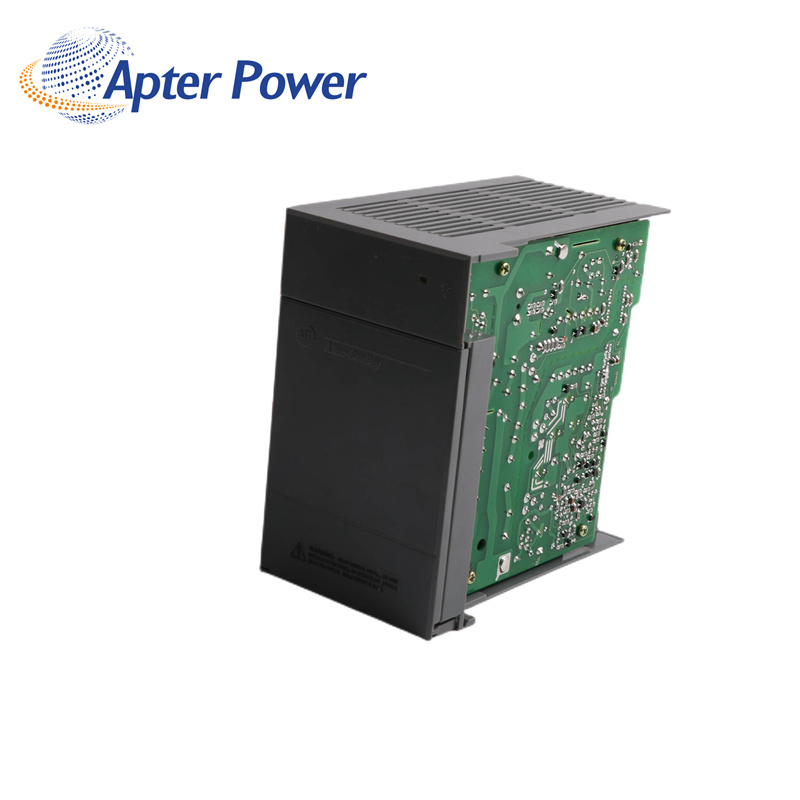

The 1746-P5 is an SLC 500 power supply. Measuring 145 x 74 x 140 millimeters, it has an input voltage range of 90-146V DC and a nominal input voltage of 125V DC. It has a maximum inrush current of 20 A and a maximum real input power of 85 W. The internal current capacity of this power supply is 5 A at 5V DC and 0.96 A at 24V DC.The user-power current capacity of this power supply is 200 mA and the user-power voltage range is from 18-30V DC at 24V DC.
The backplane and input terminal isolation of the 1746-P5 power supply is 1800V AC RMS for 1 second. It also has a CPU hold-up time of 20 ms for a full load and 3000 ms for no load.One power supply will support one chassis and the LED indicator allows you to monitor the operation of the power supply. The fuse protection of the power supply, which is soldered in place and non-replaceable, is only for protection against fire hazards caused by short-circuit conditions. It uses a 1746 chassis and has an open-type enclosure.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
