The internal current capacity of this power supply is 5 A at 5V DC and 0.96 A at 24V DC.The user-power current capacity of this power supply is 200 mA and the user-power voltage range is from 18-30V DC at 24V DC.
|
|

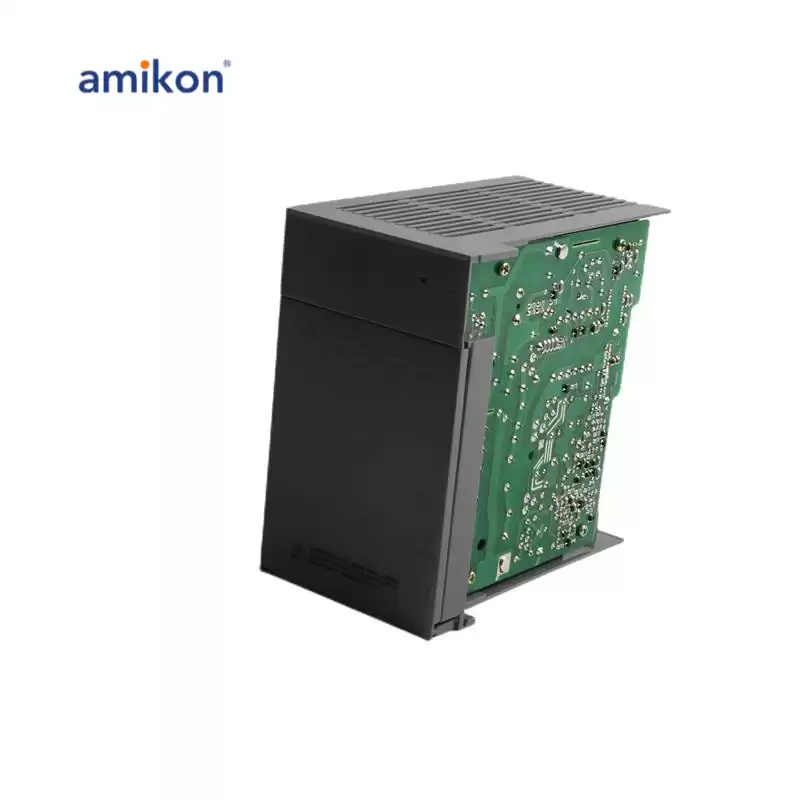

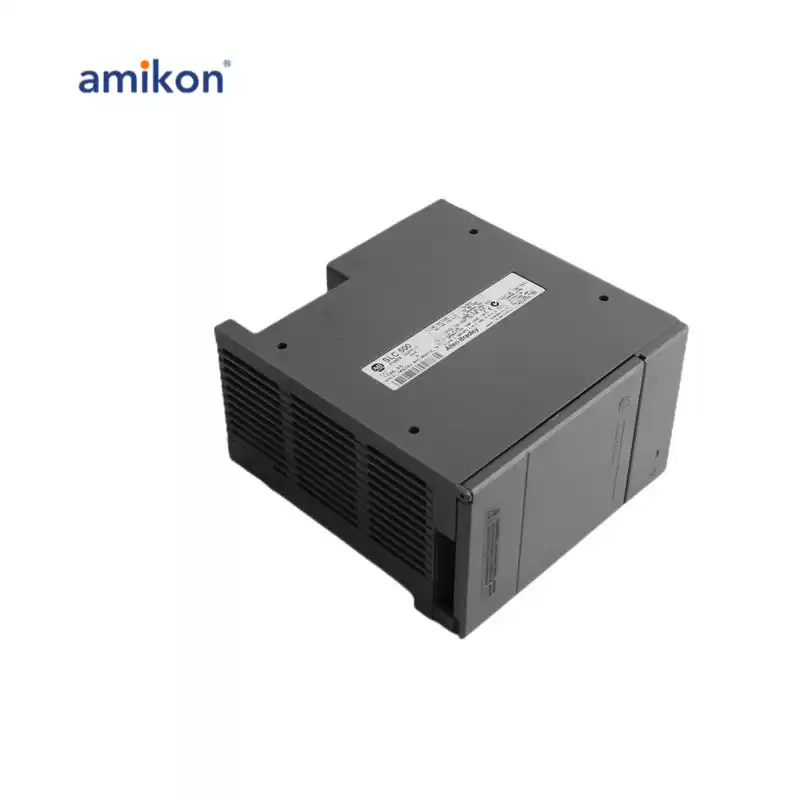

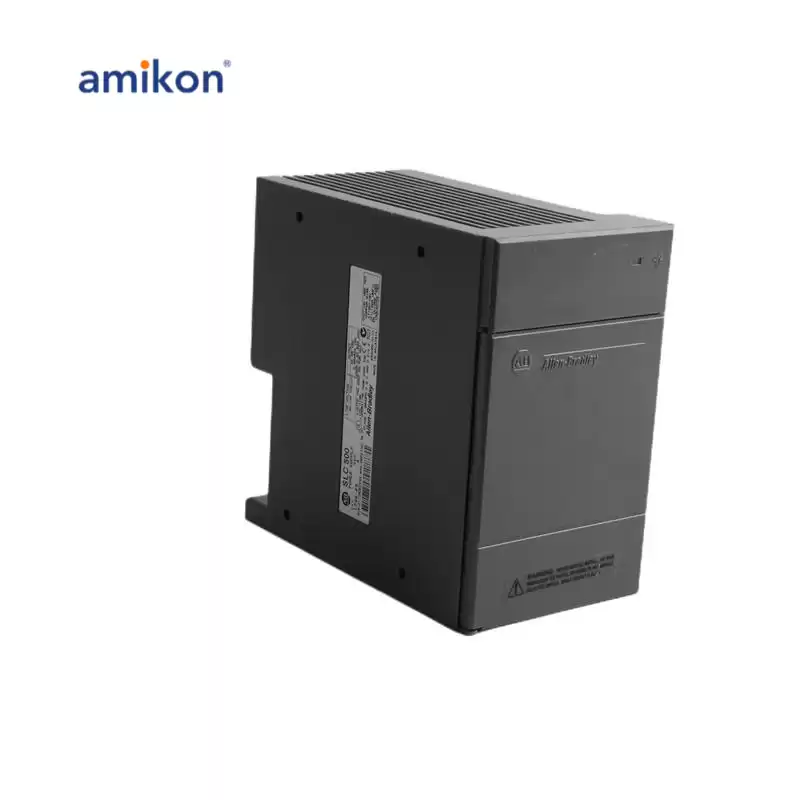

1746-P5 Description:
|
Measuring 145 x 74 x 140 millimeters, it has an input voltage range of 90-146V DC and a nominal input voltage of 125V DC. It has a maximum inrush current of 20 A and a maximum real input power of 85 W.
|
|
It also has a CPU hold-up time of 20 ms for a full load and 3000 ms for no load.One power supply will support one chassis and the LED indicator allows you to monitor the operation of the power supply.
|
|
The fuse protection of the power supply, which is soldered in place and non-replaceable, is only for protection against fire hazards caused by short-circuit conditions.
|
|
