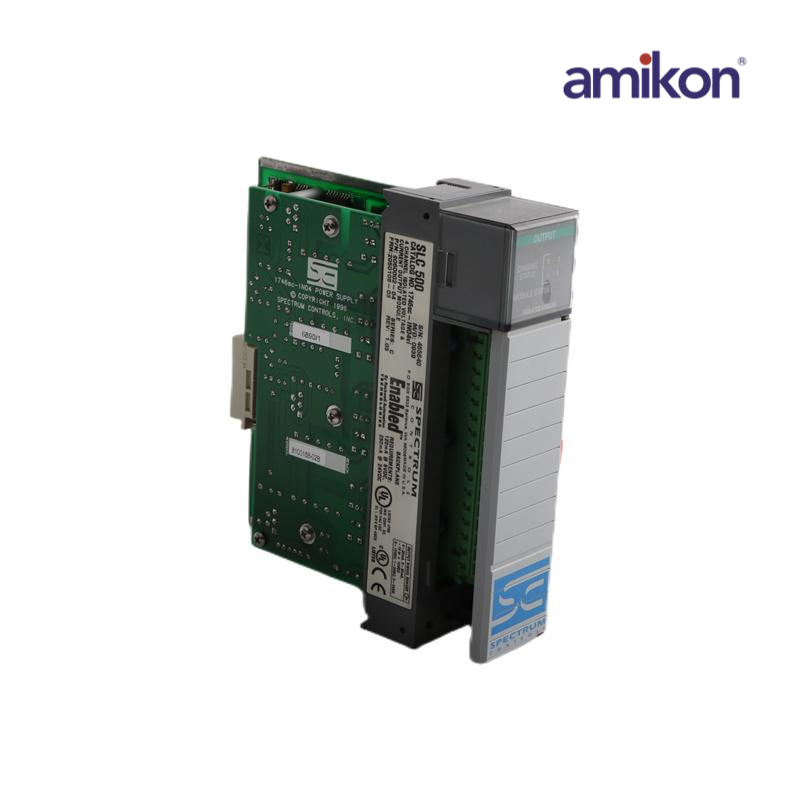

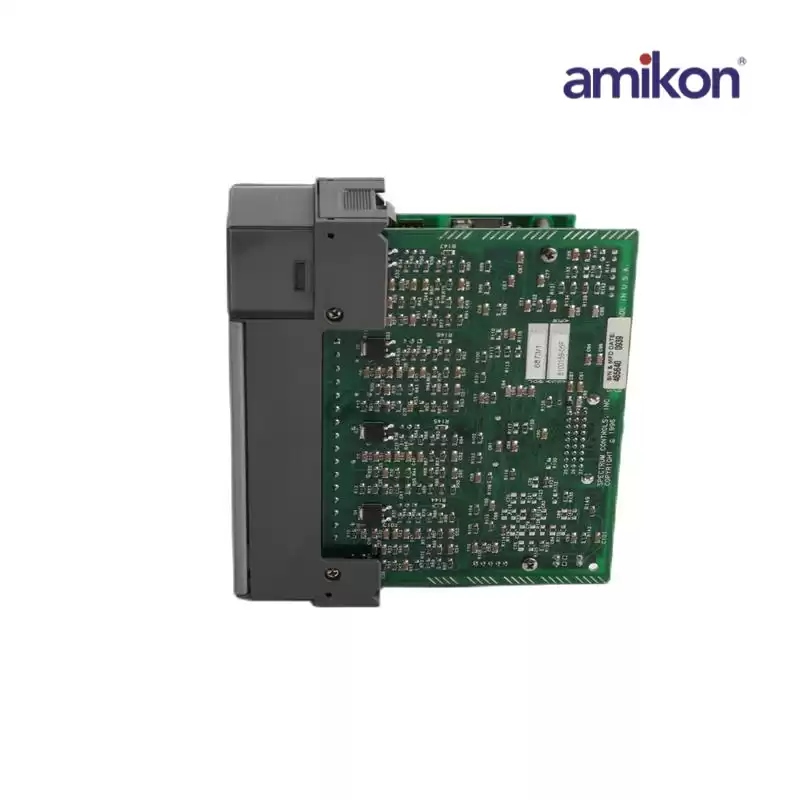

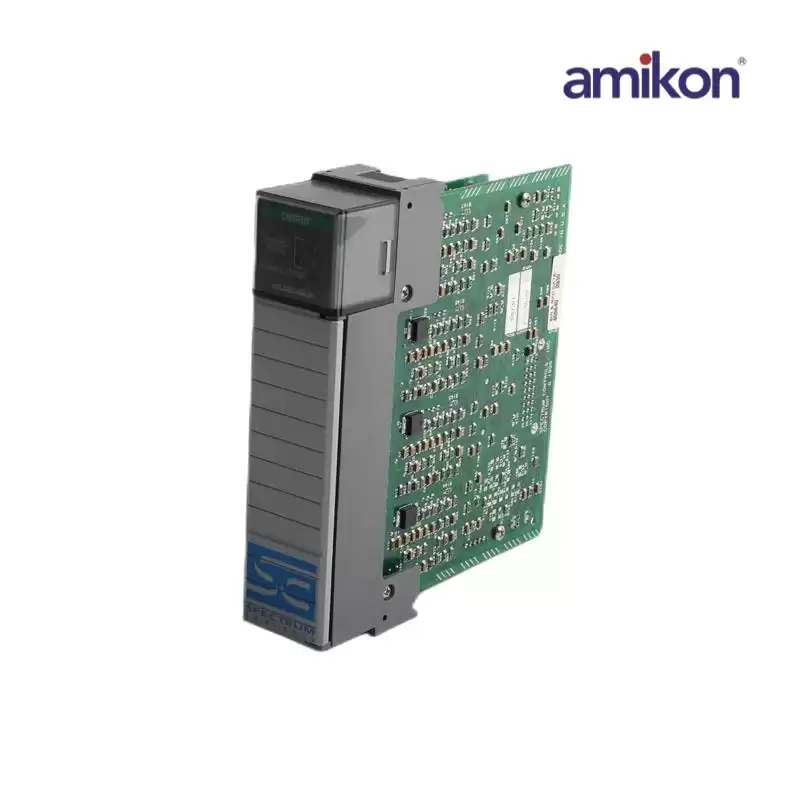

1746SC-INO4VI
|
|
Dimensions ：
|
13.2cmx2.5cmx18cm
|
Weight：
|
0.24KG
|
|
The 1746sc-INO4VI is compatible for use with the SLC500 Programmable Logic Controllers (PLC). Each channel comes with a built-in digital to analog converter circuit with output resolution of 16-bits, specifically, 366 nA per count for current and 320 uA per count for voltage. It is also equipped with advanced features including extended output ranges, auto-calibration, programmable limits, and programmable safe states.
The 1746sc-INO4VI is designed to be operated at an ambient temperature range of 0 to 60 degrees Celsius and the humidity of the environment should be between 5 and 95%, non-condensing. The module must be installed with the power to the system turned off and the users can refer to the troubleshooting information from the manufacturer for additional support.
|
|
