Decription:

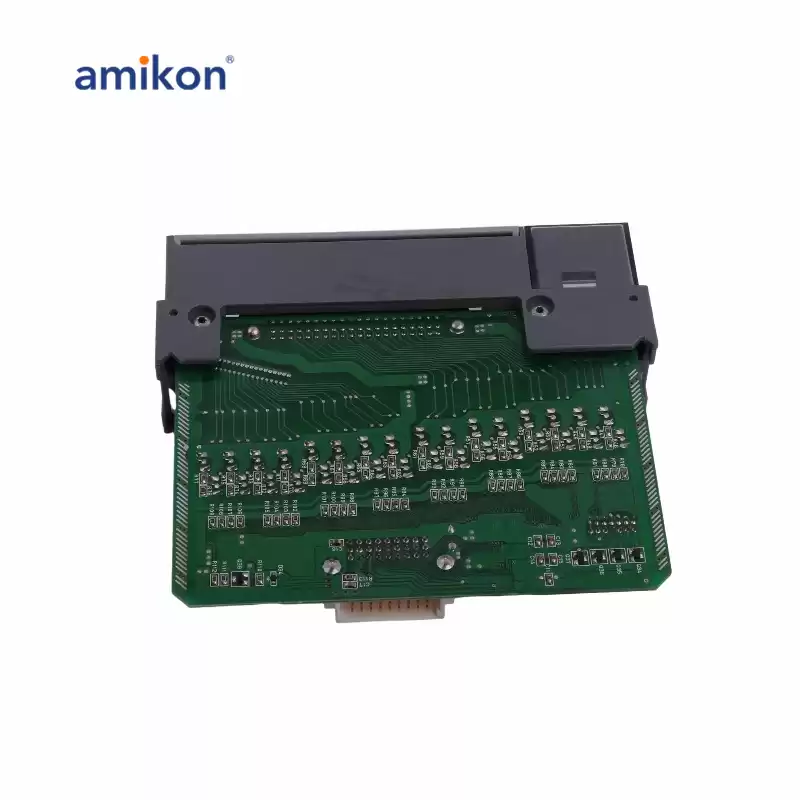

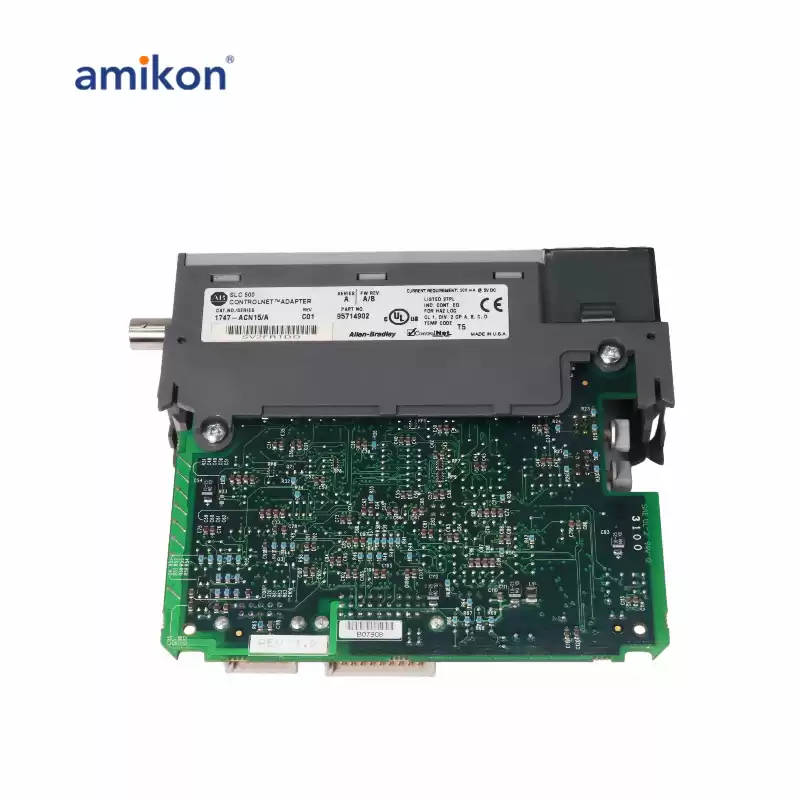

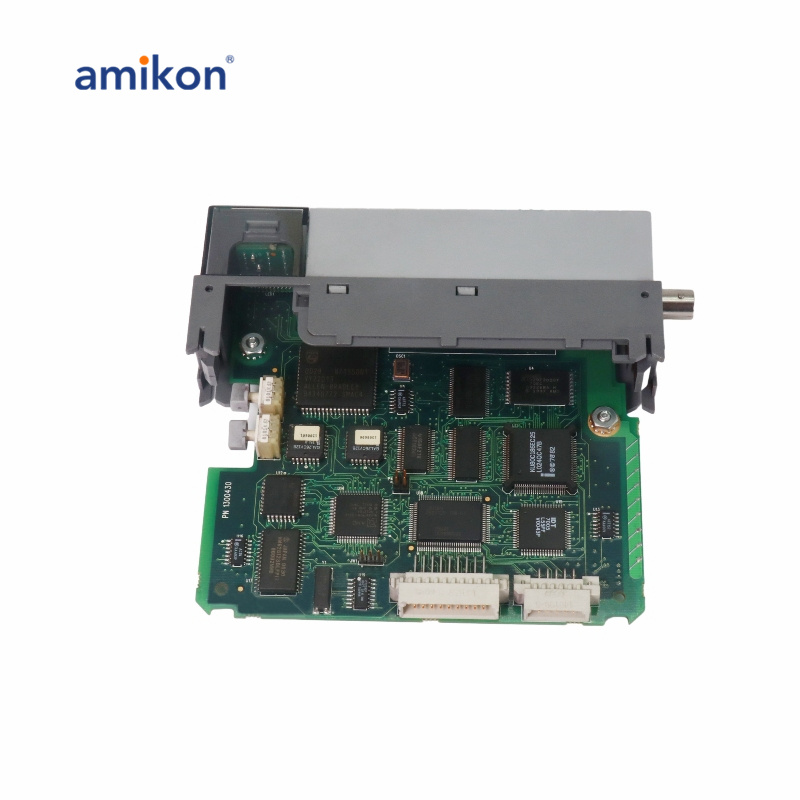

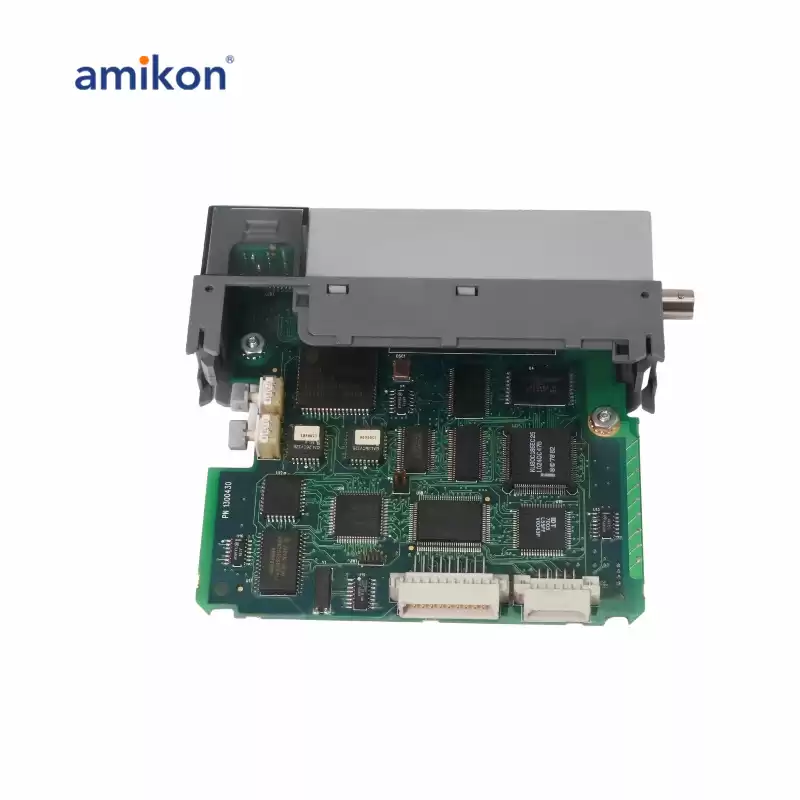

The 1747-ACN15 is a discontinued SLC500 ControlNet Adapter module, which was officially phased out by the manufacturer on December 30, 2014. This module provides the capability to connect to a ControlNet network via its embedded single ControlNet port. Additionally, it features one Network Access Port (NAP), equipped with an RJ-45 8-pin connector, and one BNC connector for network connections. The front panel of the module includes a 7-segment display and LED status indicators such as CHA and OK LEDs, providing real-time status updates for easy monitoring and diagnostics.
|
Specification
|
Details
|
|
Operating Temperature
|
0-60°C
|
|
Series
|
SLC 500
|
|
Part Number/Catalog No.
|
1747-ACN15
|
|
Scan I/O
|
No
|
|
No. of ControlNet Ports
|
One (1)
|
|
Network Access Port (NAP)
|
Available
|
|
Backplane Current (5 Volts)
|
0.9 A
|
|
Power Dissipation
|
5 Watts
|
|
Thermal Dissipation
|
17.06 BTU/Hr
|
|
Communication
|
ControlNet
|
|
ControlNet Topology
|
Non-redundant
|
|
Module Type
|
I/O Adapter Module
|
|
Communication Port
|
ControlNet I/O Adapter
|
|
Communication Rate
|
5 Megabits/Second
|
|
Backplane Current (5 Volts DC)
|
900 milliamps
|
|
Cable
|
Quad-Shield RG-6 Coaxial
|
|
Connectors
|
1 BNC, 1 NAP
|
|
I/O Connection
|
1492-AIFMQS
|
|
Location
|
1746 Chassis
|
