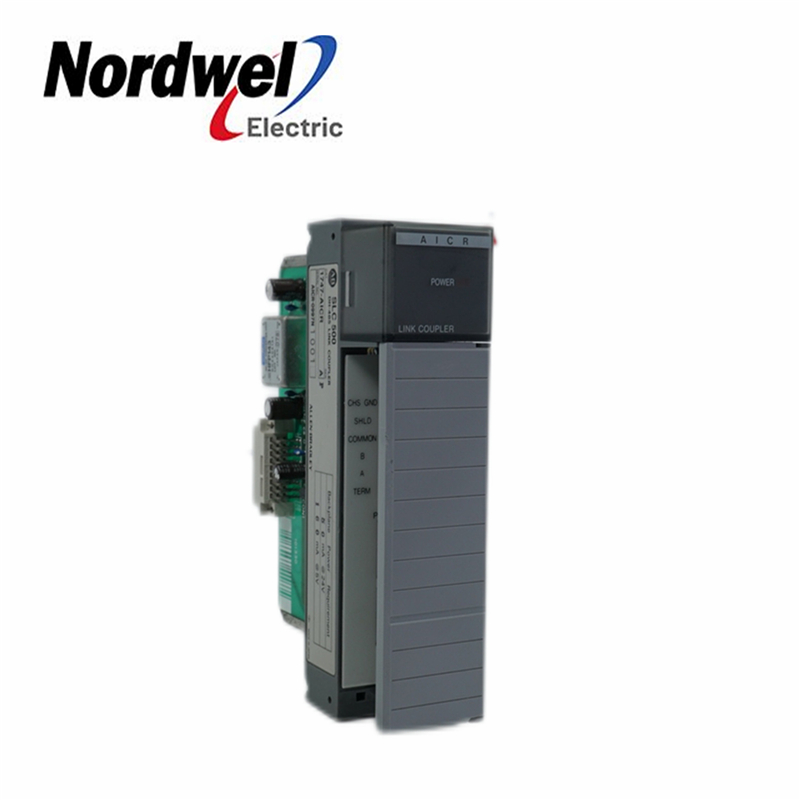

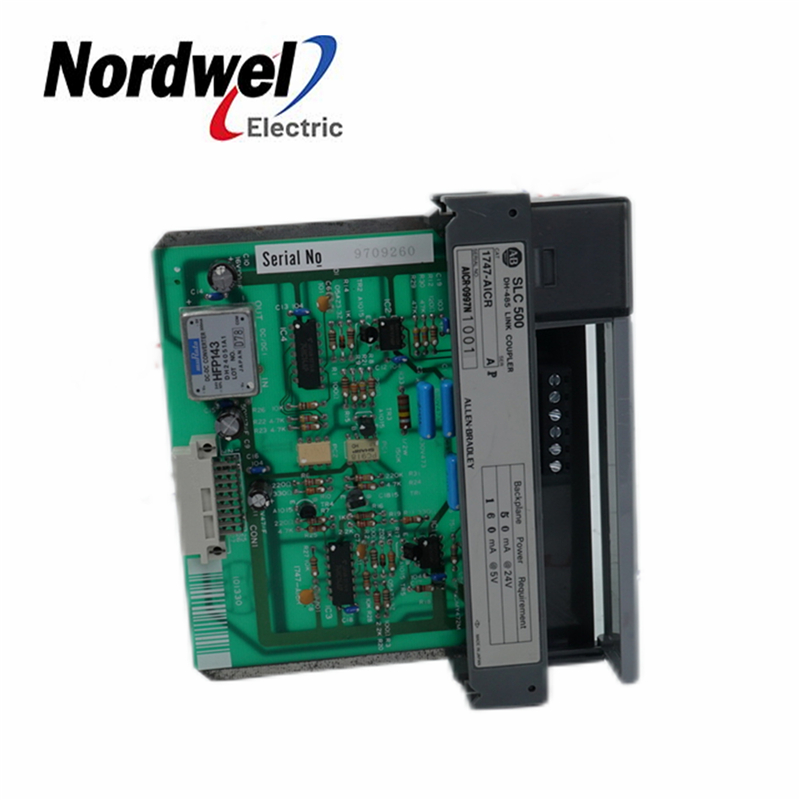

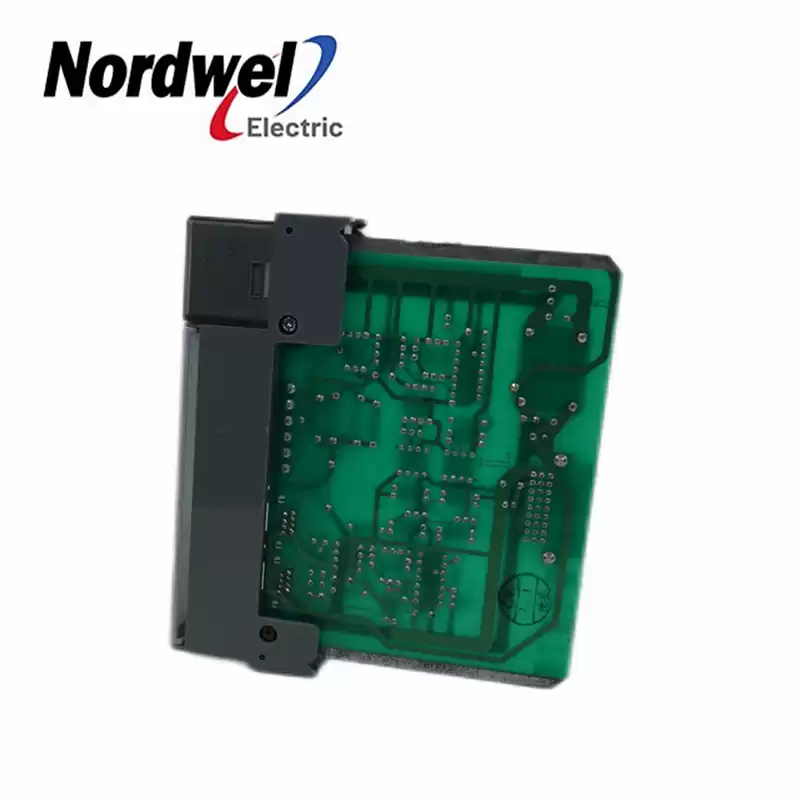

The 1747-AIC/isolated link coupler is inclusive of the PLC SLC 500 series. The purpose of this unit
is to connect SLC 500 devices to the DH-485 network. It is equipped with 6 position of removable blocks
for connecting to the DH-485 communication cable, with the connection cable types being shielded-twisted-pair
as well as open type. Installation of a link coupler is necessary for every node on the network.
The 1747-AIC also provides room for additional link couplers in case more nodes are added in the future.
The installation of an additional link must be done during the first installation to prevent recabling when
the network is in operation.
The length limit for a 1747-AIC communication cable is exactly 1219 meters (4000 feet) and is the full
distance between the first and the last nodes on the network. The current load for this unit is 0.085 A
at 24 Volts DC (Direct Current), and it can operate at an average temperature range of 32 to 140
degrees Fahrenheit.
