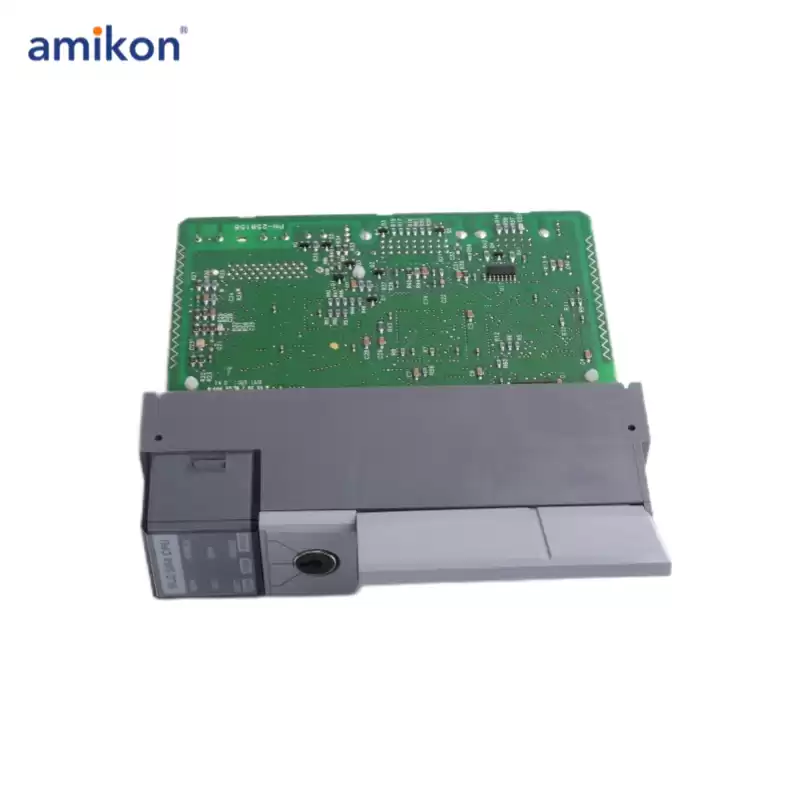

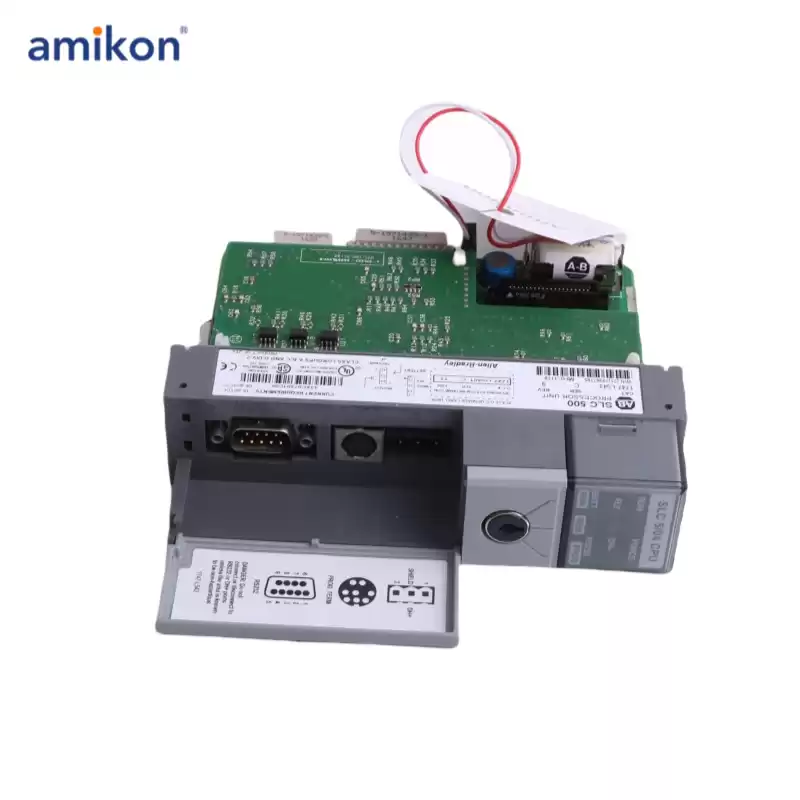

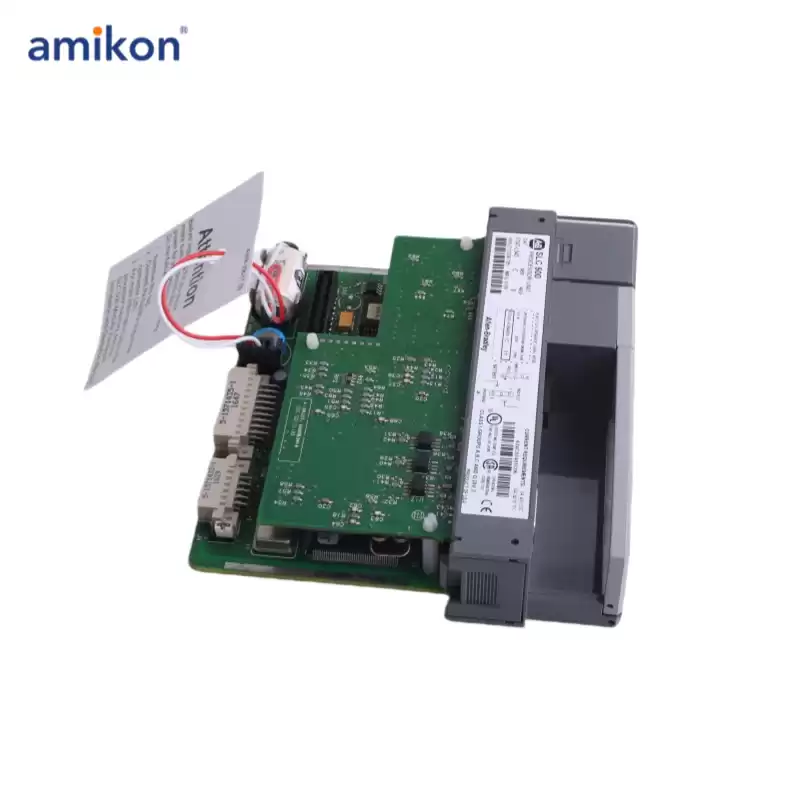

1747-L543 SLC 5/04 Processor

Company infomation:

AMIKON LIMITED gives you access to a global supply of automation parts at your fingertips, ensuring that manufacturers can avoid unnecessary downtime. No matter where in the world, we are committed to helping businesses save millions in lost revenue.

Get in touch with us:

About product:

The 1747-L542 is a processor within the SLC 500 series, designed to handle a maximum of 4096 discrete inputs and outputs. It is equipped with 64 KB of integrated memory, with 60 KB allocated for data and program storage and 4 KB for data storage only. The processor also includes a Flash EPROM backup memory and supports 107 programming instructions. Its 64 KB of RAM is battery-backed to ensure reliability during power loss.

This processor supports a maximum of 3 I/O chassis and up to 30 I/O module slots. Communication is enabled through both a DH+ port and an RS-232 port. Additionally, status LEDs are present for monitoring forced I/O, CPU status, and communication ports (RS-232 and DH+).

The program scan time for the 1747-L542 averages 0.9 milliseconds per K of program, with a typical I/O scan time of 0.225 milliseconds. Bit execution time is 0.37 µs. In the event of power loss, the processor has a program scan hold-up time ranging from 20 milliseconds to 3 seconds, depending on power supply load.

In terms of physical characteristics, the 1747-L542 operates with a backplane current of 1 A at 5 Volts DC and 125 mA at 24 Volts DC. It is designed to withstand operating shocks of up to 30 G, acceleration of 2.5 G at frequencies between 57 and 2000 Hertz, and a displacement of 0.015 inches peak-to-peak at 5 to 57 Hertz. The processor can operate in environments with non-condensing humidity levels between 5% and 95%. Its operating temperature range is between 0°C and 60°C, while its storage temperature ranges from -40°C to 85°C.

Specifications:
