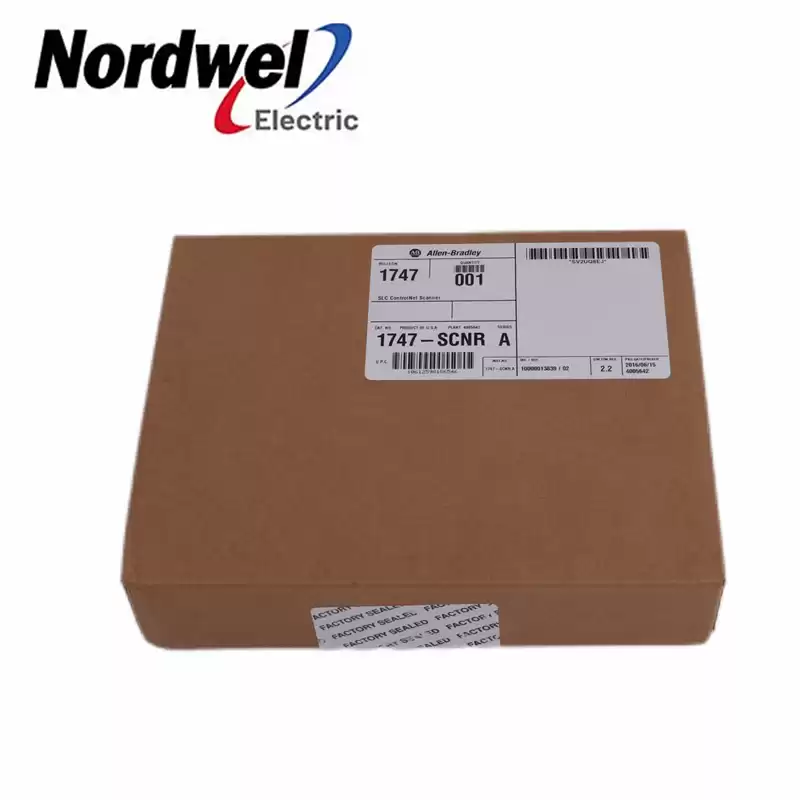

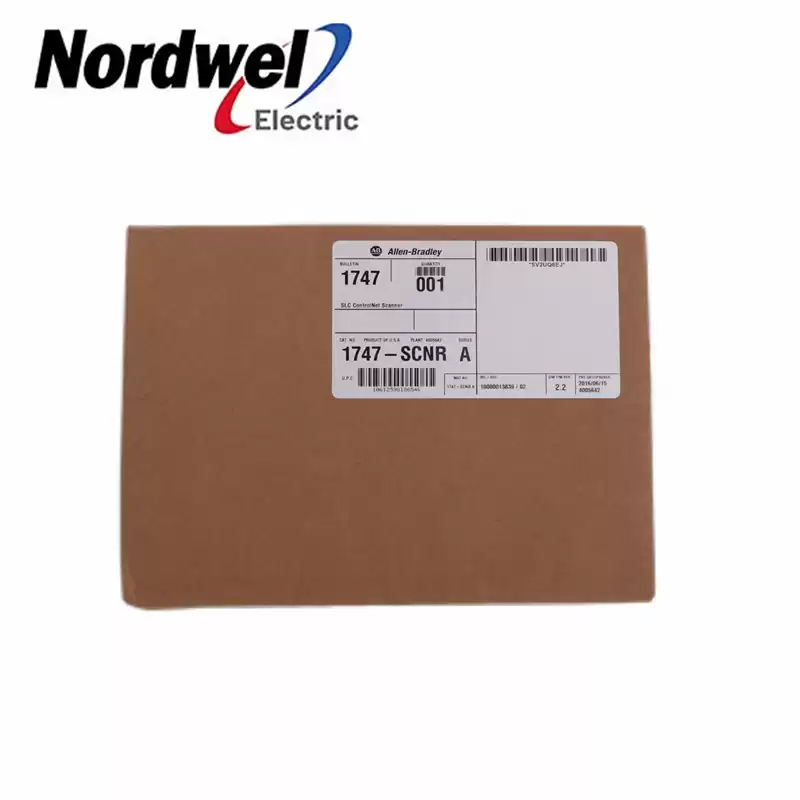

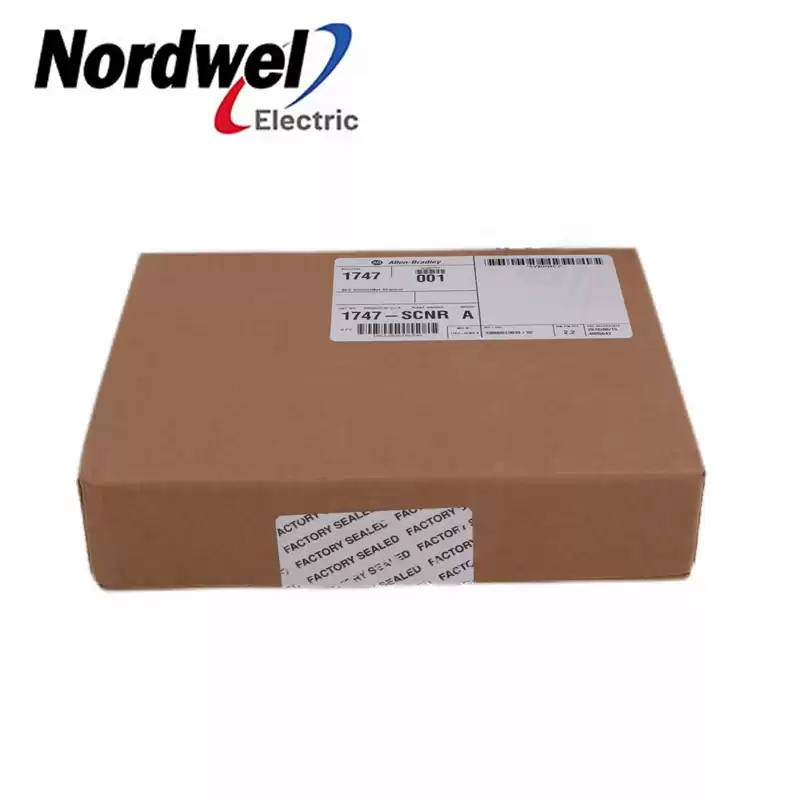

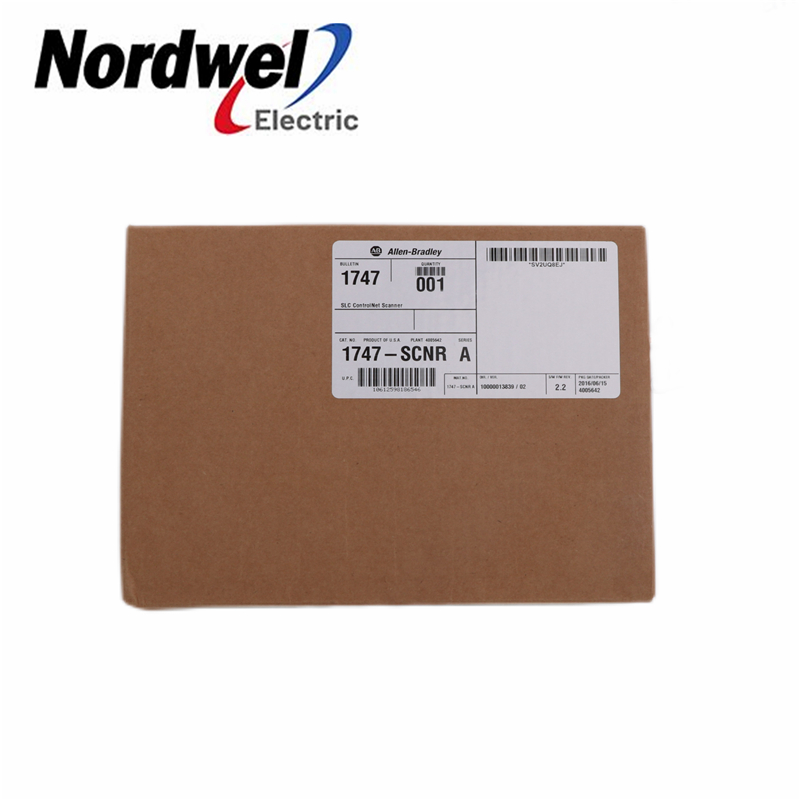

| 1747-SCNR | ControlNet Scanner



  • Part Number1747-SCNR
  • Weight0.86kg
  • Dimensions23.3cmX18.3cmX5.3cm
  • Manufacture Year2021
  • Place of OriginUSA
  • CertificationCO,CQ
  • Description 1747-SCNR SLC 500 ControlNet Scanner, ControlNet Redundant Media Ports (Channels A and B)

  Technical Specifications for 1747-SCNR

Manufacturer                                    Automation

Communication                                ControlNet

Operating Temperature                    0-60 Celsius

Backplane Current (24 Volts)           90 milliamps

Backplane Current (5 Volts)             800 milliamps

Compatible Processors                    SLC 5/02, 5/03, 5/04, 5/05

Scan I/O                                           Yes

Module Type                                     ControlNet Scanner Module

Series                                               SLC 500

Part Number/Catalog No.                 1747-SCNR

No. of ControlNet ports                    Two (2)

ControlNet topology                          Non-redundant and redundant media

Chassis Location                               Any slot expect left most slot

ControlNet Taps                                1786-TPR 1786-TPS 1786-TPYR 1786-TPYS

ControlNet media                              1786-RG6

Chassis Module Slots                        30

Backup Memory                                 Flash


The 1747-SCNR is a SLC500 ControlNet Scanner module. This module provides capability

 to connect to ControlNet network via the Two (2) ControlNet port. This module supports non-redundant

 and redundant media. It comes with LED status indicator such as CHA and CHB LED and an OK LED.
