1750ma 150w waterproof electronic led driver IP67

1750ma 150w waterproof electronic led driver IP67

Facebook Twitter Pinterest LinkedIn 分享
1750ma 150w waterproof electronic led driver IP67

Specifications:
1. Input voltage.:90~135V/170-265VAC,47~63Hz
2. output :70-86vDC @1750ma 150w
3. Efficiency>82%
4. Warranty: 2 years
5. CE,ROHS approval
6. product size: 245*70*48mm
7. Net weight: 1210g/PC (ip67)

8. Case material:aluminum

9. Waterproof rate:  ip67

Features:

1. Case material:aluminum
2. Cooling by nature.
3. 100% full load burn-in test
4. High reliability designing solution
5. High efficiency,save energy ,protected environment
6. High stability and low ripple, increase light efficiency and decrease light attenuation
7. Meet to safety standard and EMC
8.  Assure LED stability long lift and light efficiency by constant voltage
9. Passed high ,low temperature and waterproof testing.
10. integrity protection,over loading, over voltage ,over current
11. 8Hrs and 100% full load burn-in test.

Environment:

1. Working Temperature : -30 ~ +60°C
2. Working Humidity : 20 ~ 90% RH non-condensing
3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
4. TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
5. Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes.

Safety:

1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529

2. Withstand Voltage : I/P-O/P: 3000KVAC

3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC

Applications:
Our products are widely used in various industries, such as
  • indoor LED illuminating lights,
  • LED Neon,
  • LED urban Decoration
  • LED Lighting Advertising,
  • LED Display,
  • Safety Protection Apparatus,
  • Telecommunications,
  • Networks,
  • Vehicle Lights, Controller Panels, etc.

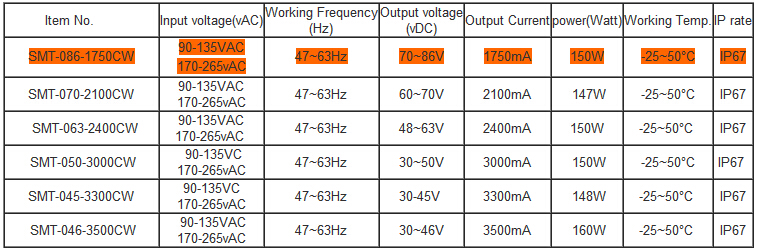

parameter:



packaging:


why choose us??

1.    We are CE audited LED drivers/power supplies enterprise in China.

2.    more than 10 years LED industrial experience. it will guarantee your order 100% safe.

3.    Price is negotiable if you have large quantity demand

4.    100% QC inspection Before Shipping

5.    Best Quality & Best Service with Competitive price.

6.    Shipping will be the most economical for you and freight cost is informed in advance for your                   consideration.decision for the shipping terms will be made according to your requirements

7.    Samples will be ready within 7 working days.

8.    We have our engineer team if you have any question about your LED applications let  us know               freely  we will  give you the best solution.

9.    Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.

10.  OEM design & OEM packing welcom.

11.   Samples will be ready within 7 working days.


FAQ

Q1.             What's type power supply do you have?
Answer:     We specialized in constant voltage & current LED drivers
                   0- 10v/triac/DALI dimmable led drivers enclosure power suppliers power adapters

Q2.             What's shipping mode can we choose?
Answer:     1.FedEx/DHL/UPS/TNT/Express for samples;
                   2. By Air or by Sea for batch goods for FCL; Airport/ Port receiving;
                   3. Customers specifying freight forwarders or negotiable shipping method

Q3.             What's the MOQ?
Answer:     Our MOQ is 500pcs but we accept your trail order/small order no problem.

Q4.             What can you do if the product is broken?
Answer:     We promise to replace new ones to you if there is any defective happen
                   during the warranty period but we need pictures or video to prove the defective
                   comes from our quality problem

Q5.             How about the protection of product?
Answer:     Most of our products have protection of short-circuit. overload
                   over voltage over current and reserve polarity. About the specific product
                   please consult our salesstuff.

Q6.              How about the transportation?
Answer:      For small order express will be best.And for bulk order sea ship way is best but take much time.
                    For urgent orders we suggest via air to airport plus our ship partner send to your door.
                    We will cooperate with your choice.

Q7.              What's the Payment do you have?
Answer:      To assure you the maximum comfort and satisfaction Currently you can pay via T/T L/C
                    WESTERN UNION PAYPAL. More payment options will be added in the near future
We will always be here and try our best to provide you our best service !
Waiting for your kind inquiry
