About product:
|

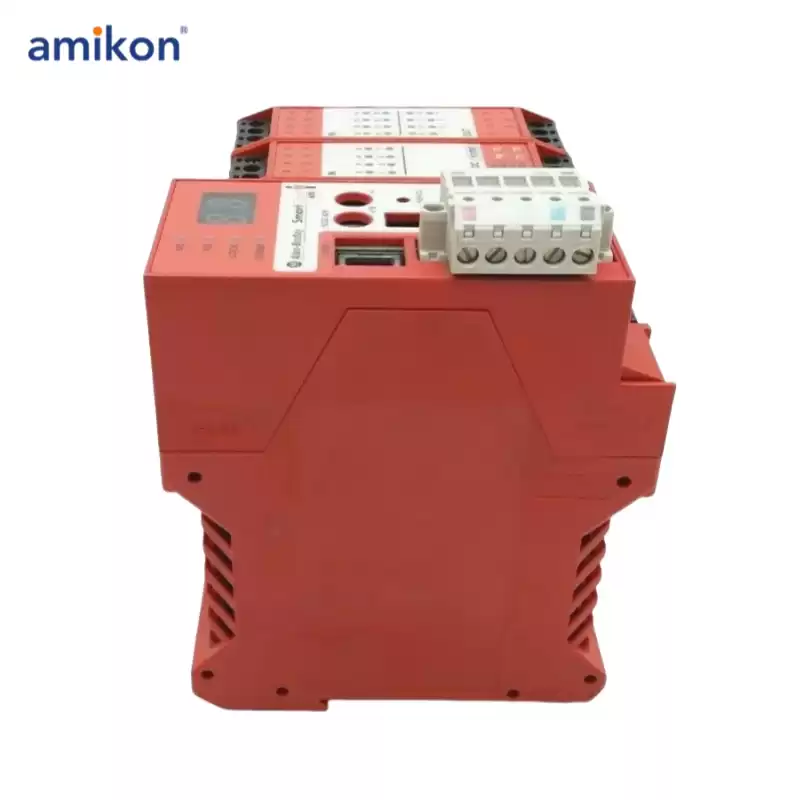

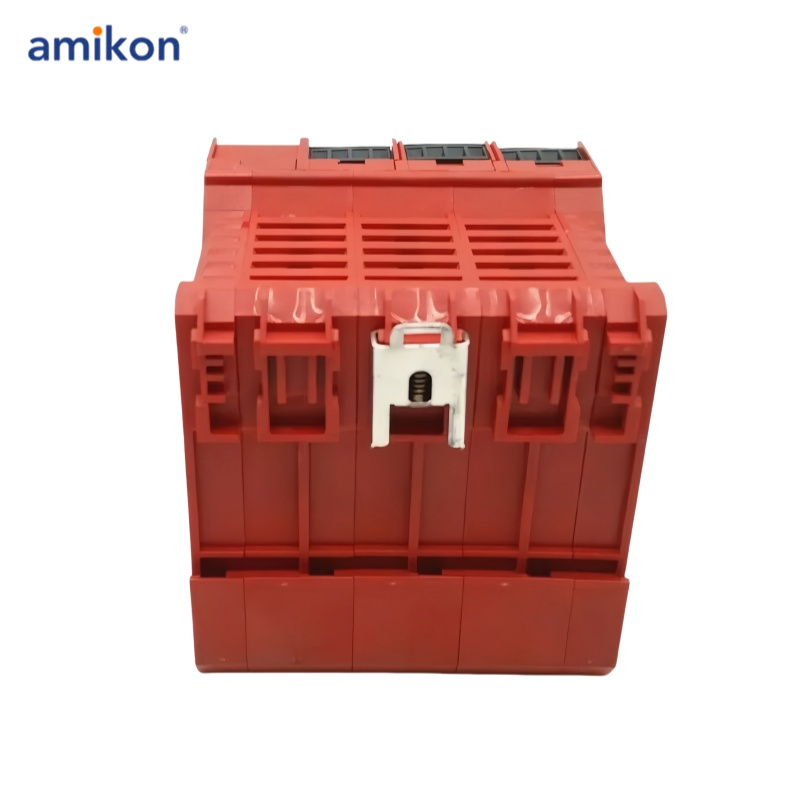

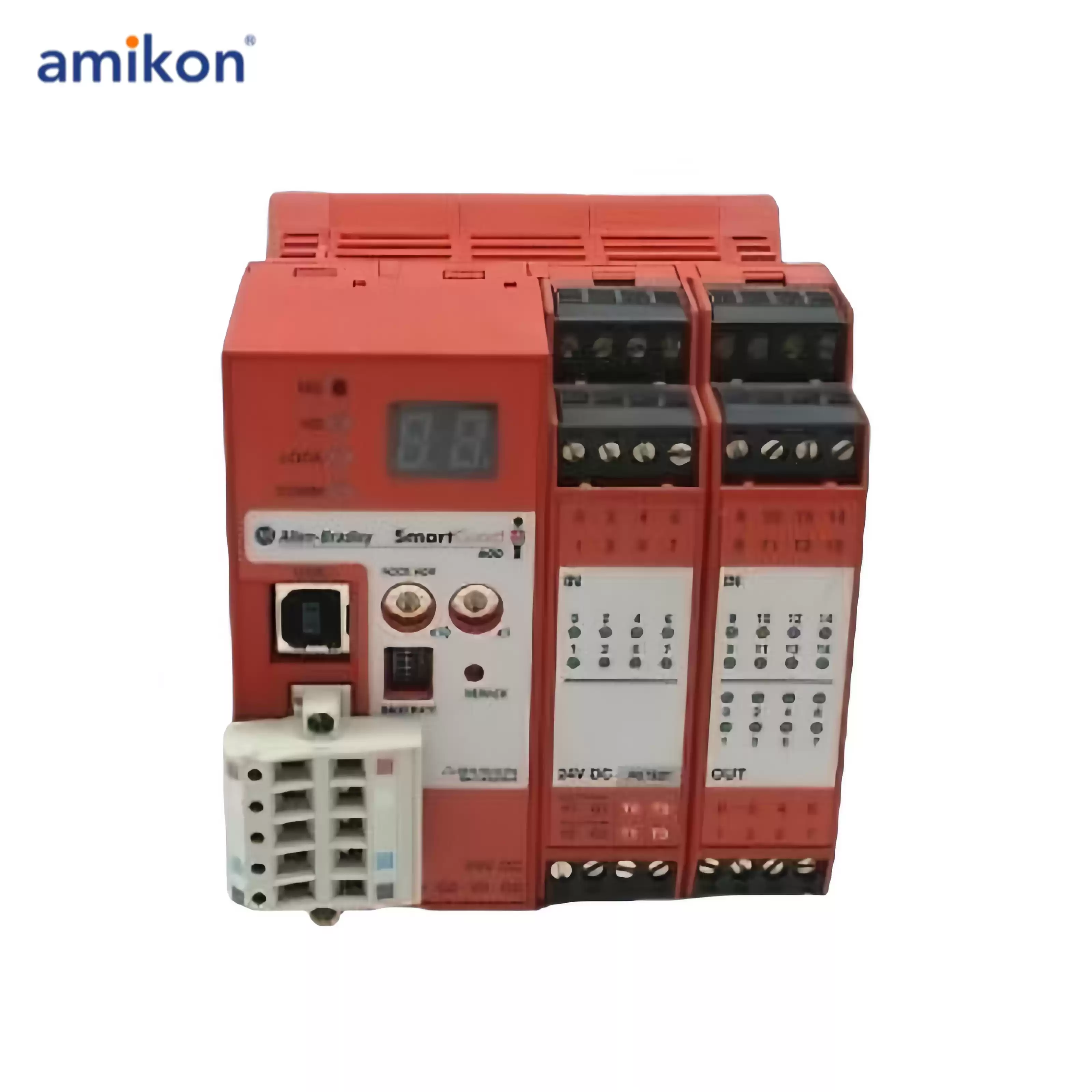

1752-L24BBB SmartGuard 600 Safety Module
|
|
1752-L24BBB Types
|
The 1752-L24BBB controller is a SmartGuard 600 series programmable electronic controller designed for industrial applications. It offers 16 digital inputs, 8 digital outputs, and 4 test pulse sources, with connections available for USB and DeviceNet communication to integrate with other systems.
|
|
Featuring EtherNet/IP connectivity, the controller supports both CIP safety and standard CIP communications, ensuring flexibility in its use across various systems.
|
|
The controller is designed with a focus on user safety, incorporating input safety features like input circuit diagnostics, input on-and-off delays, and dual-channel mode.
|
|
Parts delivered worldwide
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
|
Attribute
|
Value
|
|
Series
|
SmartGuard 600
|
|
Part Number
|
1752-L24BBB
|
|
DeviceNet Voltage Range
|
11 to 25 Volts DC
|
|
Current Consumption
|
230 milliamps at 24 Volts DC
|
|
I/O Terminal Screw Torque
|
0.56 to 0.79 N-m
|
|
Input Type
|
Current Sinking
|
|
Voltage, On-State Input max.
|
11 Volts DC
|
|
Voltage, Off-State Input max.
|
5 Volts DC
|
|
Current, Off-State Input max.
|
1 milliamps
|
|
Input Current
|
4.5 milliamps
|
|
Test Output Type
|
Current Sourcing
|
|
Pulse Test Output Current
|
0.7 Amps
|
|
Test Output Surge Current
|
0.7 Amps
|
|
Pulse-Test Off-State Voltage max.
|
1.2 Volts
|
