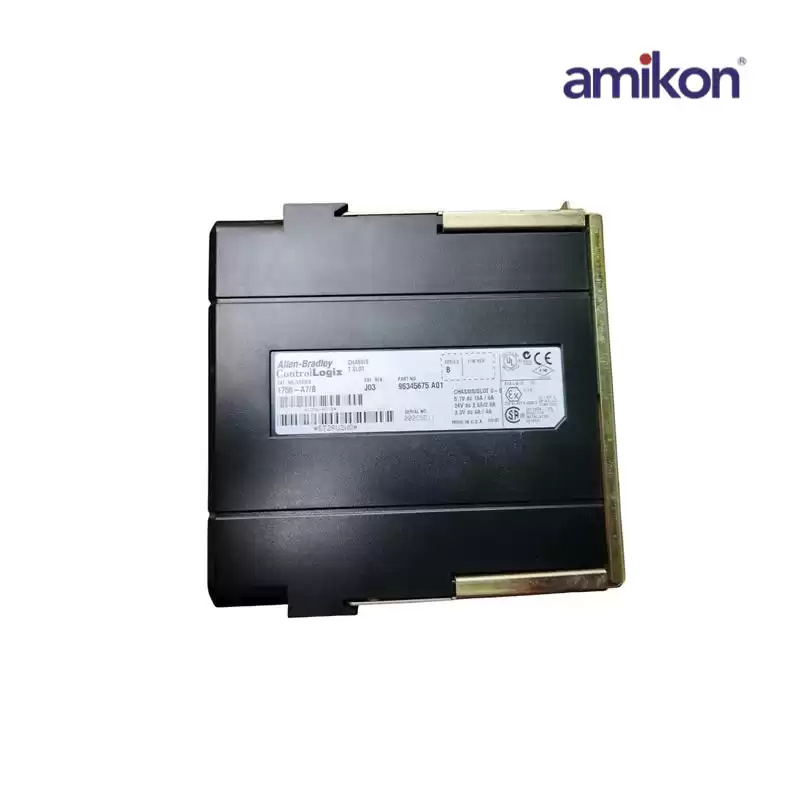

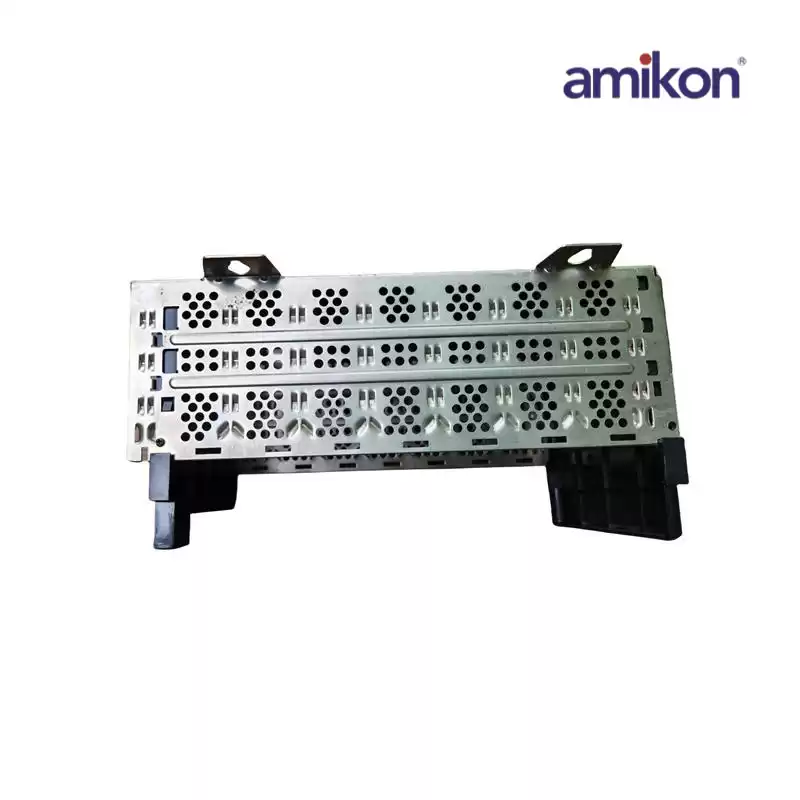

1756-A7 C ControlLogix Standard Chassis
|
|
Dimensions ：
|
17cmx13cmx3.2cm
|
Weight：
|
0.28kg
|
|
Full Description: AB 1756-A7/C Chassis The / Automation 1756-A7 chassis is a small and compact chassis that is made for the ControlLogix systems.
|
|
The 1756-A7 is mounted directly to the enclosure’s subpanel via the provided Four (4) mounting tabs. It has physical dimensions of 50.8 x 60.9 x 20.3 cm (20 x 24 x 8 in.) and weighs approximately 1.10 kg (2.4 lb). Depending on the type of power supply used, the overall dimension of the 17560A7 varies.

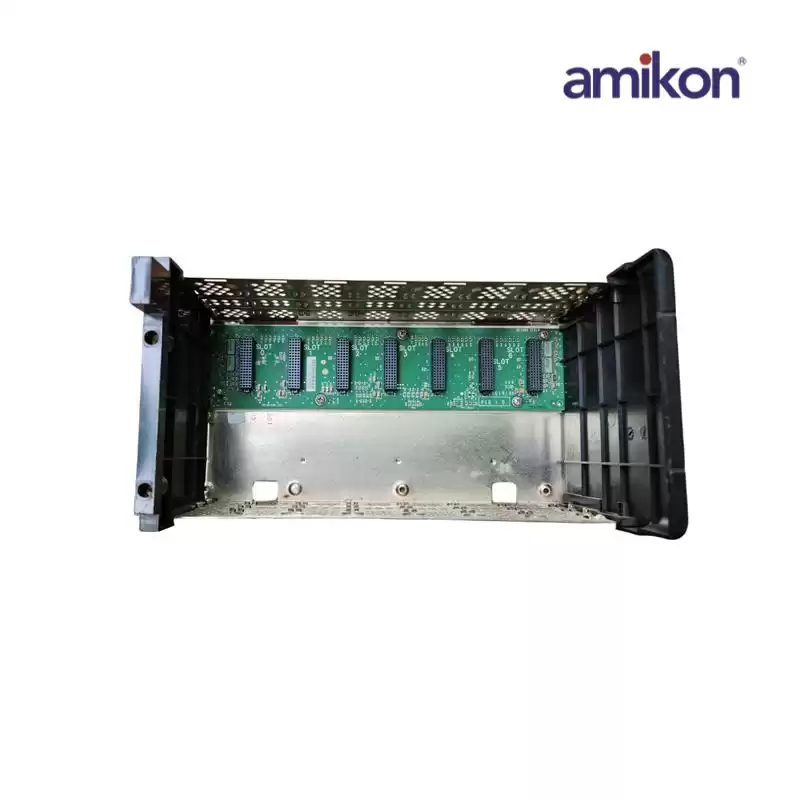

The 1756-A7 also hosts the mounting slot for the Power supply, located at the left most side of the chassis. This chassis supports slim, standard and power supplies.This hardware is an essential component in building a ControlLogix control system as chassis, such as the 1756-A7 provides backplane connection and allows module to be installed in the provided module insertion slots.
|
