can also support a maximum of 128 connections with 99 redistribution points (nodes). It has an electrical rating of 1100mA draw current at 5.1V DC and one of 3.0A at 24V DC and it has an operational power dissipation of 5.6W, with a thermal dissipation of 19.1 BTU/hr.
|
|

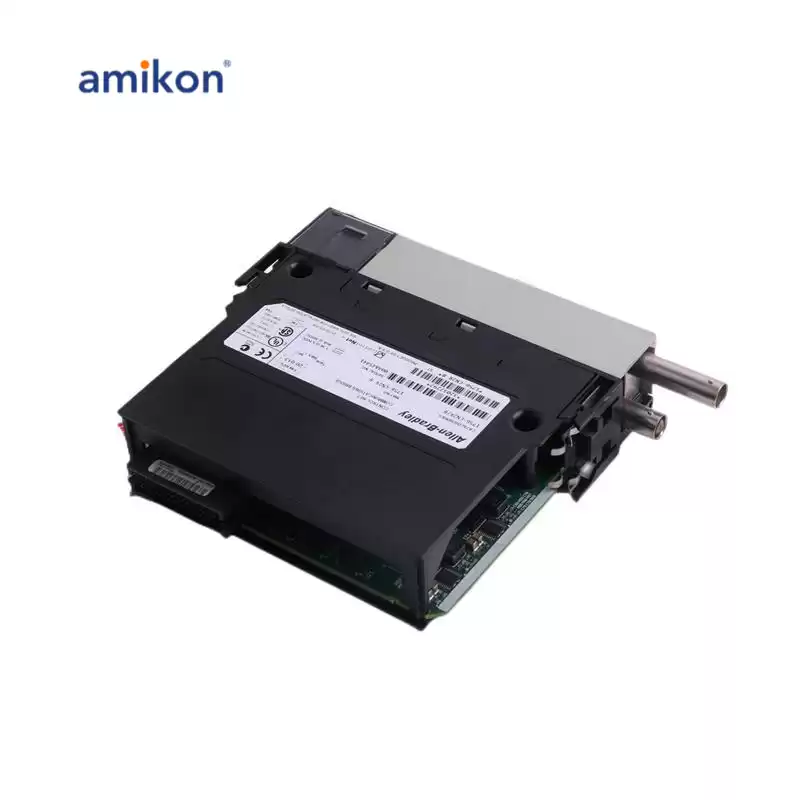

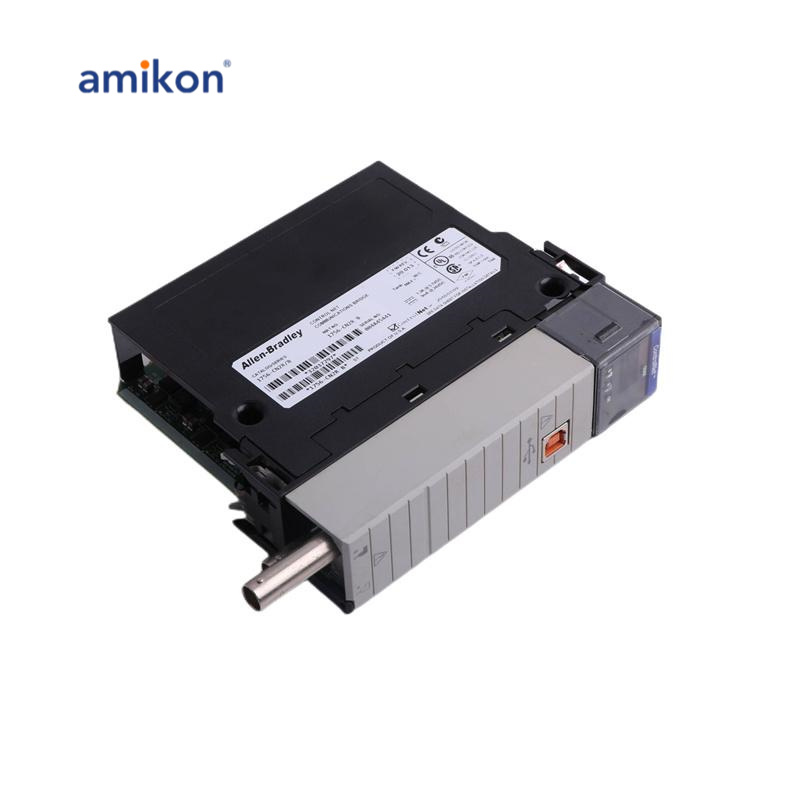

1756-CN2/C Description:
|
has an isolation voltage of 30V with a basic insulation type that is tested at 500V for 60s between ControlNet to System.
|
|
It has a ControlNet BNC, a ControlNet RJ45, and a USB 1.1 port and it uses the Quad shield RG6 coaxial ControlNet cable.
|
|
It has a single slot width and it can be installed in any slot on the chassis.
|
|
