Products Detail:
|
Brand
|
PLC MODULE
|
|
Part Number/Catalog No. 05701-A-0361
|
1756-CN2R
|
|
Product Type
|
ControlNet communication module
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

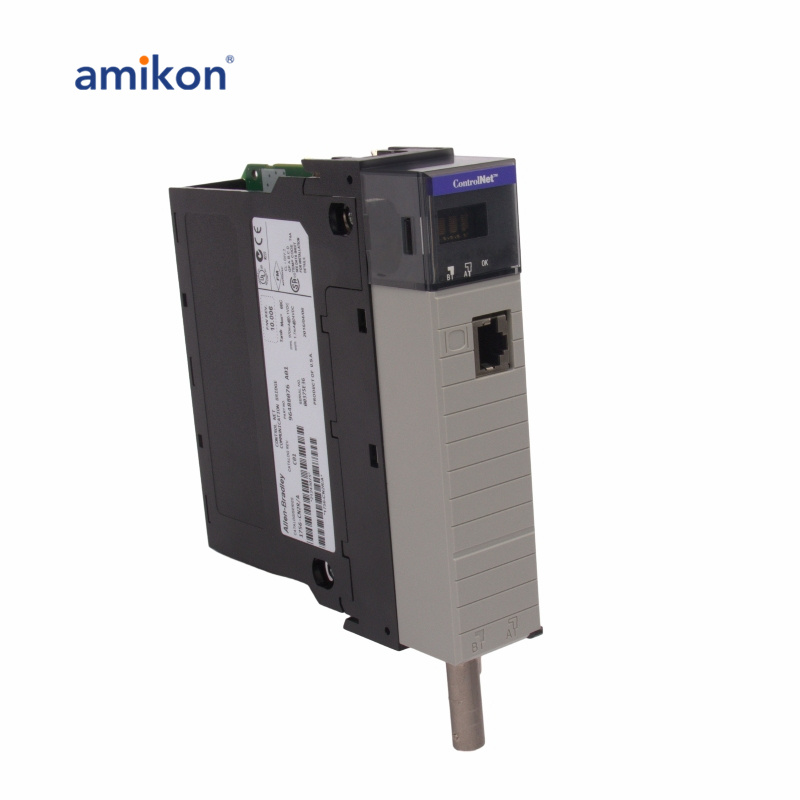

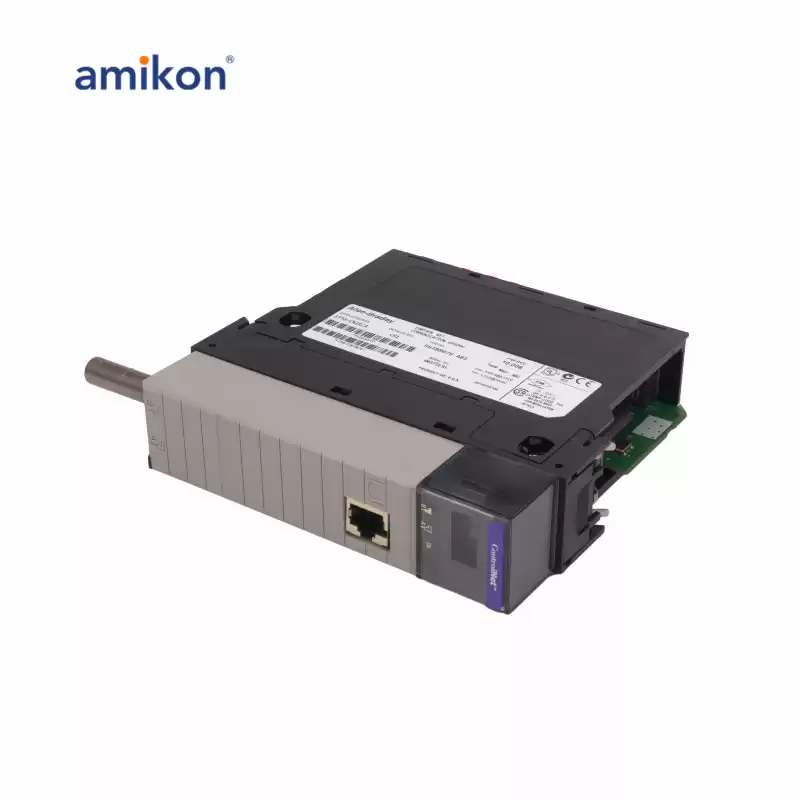

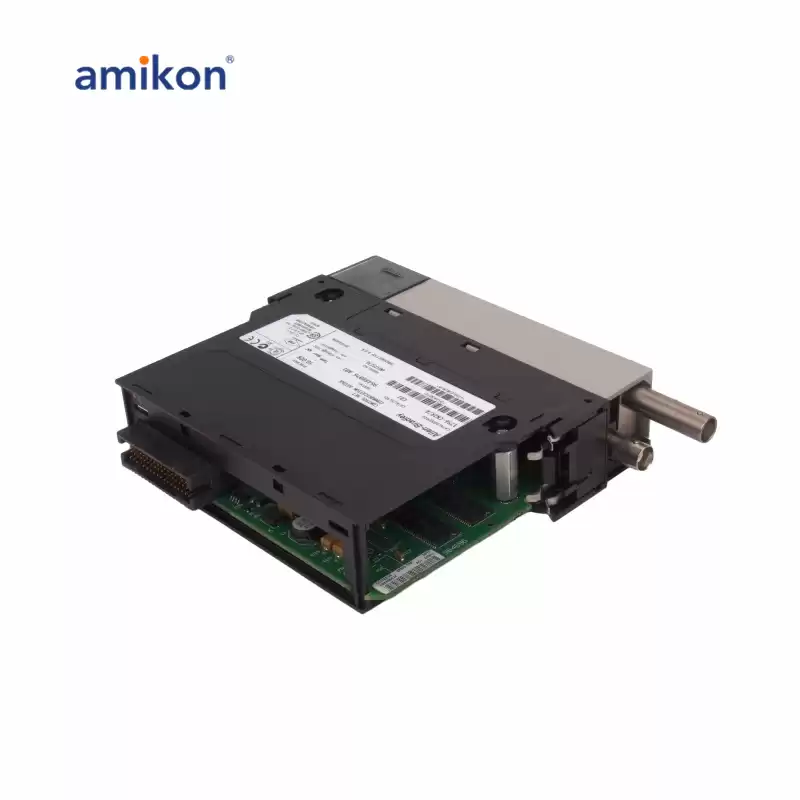

The 1756-CN2R is a communication module designed for the ControlLogix system, providing a connection to the ControlNet network. It facilitates communication using the Common Industrial Protocol (CIP) and supports peer-to-peer networking for advanced functionalities. The module supports a redundant configuration and operates at a data rate of 5 Mbps, supporting up to 99 nodes.
The 1756-CN2R can handle a maximum of 128 Logix communication connections. Its power requirements include a draw current of 1300 mA at 5.1V DC and 3 mA at 24V DC, while it dissipates 6.6W of heat (equivalent to 22.5 BTU/hr). The module offers 30V DC isolation voltage with basic insulation tested at 500V for one minute between the ControlNet and the system.
|
Attribute
|
Details
|
|
Module Type
|
Bridge Module
|
|
Series
|
1756-CN2R
|
|
Product Description
|
ControlNet communication module
|
|
Maximum Nodes
|
99
|
|
Maximum Connections
|
131
|
|
ControlNet Communication Rate
|
5 megabits/second
|
|
Chassis Backplane Current (5.1V DC)
|
1300 mA
|
|
Chassis Backplane Current (24V DC)
|
3 mA
|
|
Communication Ports
|
Two (2) ControlNet, One (1) USB
|
|
Configuration
|
Redundant
|
