Brand Name AB
Product reference 1756-CNB
EMC Directive
This product is tested to meet Council Directive 89/336/EEC
Electromagnetic Compatibility (EMC) and the following standards, in
whole or in part, documented in a technical construction file:
• EN 50081-2 EMC - Generic Emission Standard, Part 2 -
Industrial Environment
• EN 50082-2 EMC - Generic Immunity Standard, Part 2 -
Industrial Environment
This product is intended for use in an industrial environment.
Low Voltage Directive
This product is tested to meet Council Directive 73/23/EEC Low
Voltage, by applying the safety requirements of EN 61131-2
Programmable Controllers, Part 2 - Equipment Requirements and
Tests.
For specific information required by EN 61131-2, see the appropriate
sections in this publication, as well as the following Allen-Bradley
publications:
• Industrial Automation Wiring and Grounding Guidelines,
publication 1770-4.1
• Automation Systems Catalog, publication B113
Open style devices must be provided with environmental and safety
protection by proper mounting in enclosures designed for specific
application conditions. See NEMA Standards publication 250 and IEC
publication 529, as applicable, for explanations of the degrees of
protection provided by different types of enclosure.
5
Publication 1756-IN571B-EN-P - April 2001
Enclosure and Environmental Requirements Specific To This Product
This product must be mounted within a suitable system enclosure to
prevent personal injury resulting from accessibility to live parts. The
interior of this enclosure must be accessible only by the use of a tool.
This industrial control equipment is intended to operate in a Pollution
Degree 2 environment, in overvoltage category II applications, (as
defined in IEC publication 664A) at altitudes up to 2000 meters
without derating.
Preventing Electrostatic Discharge

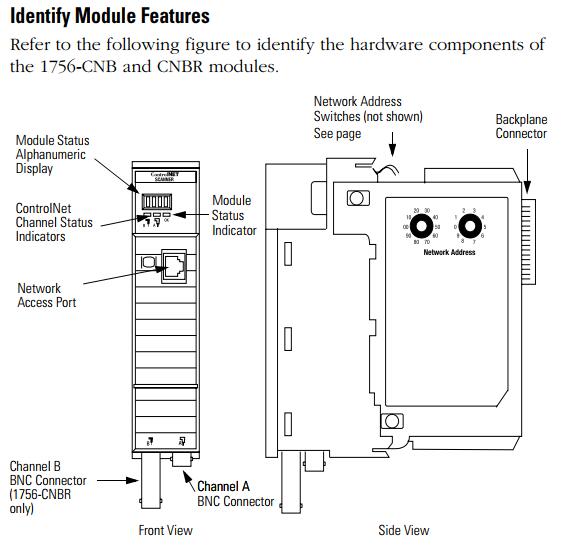

The 1756-CNB and 1756-CNBR modules are sensitive to electrostatic
discharge.

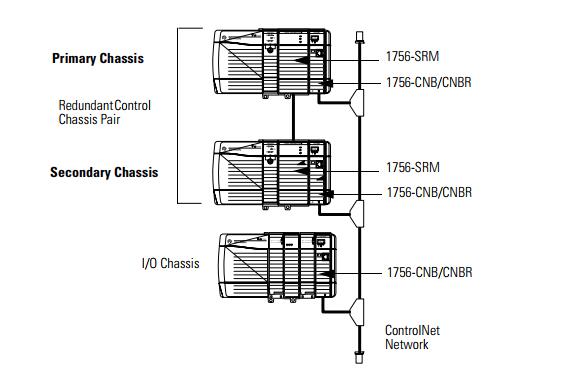

Understanding Standalone and Redundant Control
You can use both the 1756-CNB and 1756-CNBR modules either
standalone or in a redundant control chassis pair. For standalone
control, only one set of modules is required. For redundant control,
two ControlLogix chassis are populated with identical pairs of
modules called partners. The chassis that performs active control is
called the primary chassis and the modules in the chassis are called
primary modules. The other chassis is called the secondary chassis
and the modules in the chassis are called secondary modules. These
installation instructions discuss both standalone and redundant
control; read them carefully to distinguish the procedures and
requirements for each type of control.
IMPORTANT If you use redundant control, you must select the
same ControlNet Network address for each set of
partner modules. You must also place the partner
module(s) in the same corresponding slot(s) in
their respective redundant control chassis pair.
Prepare to Install the Module
Before you install the module make sure you:
1. Know how to handle the module (see page 5)

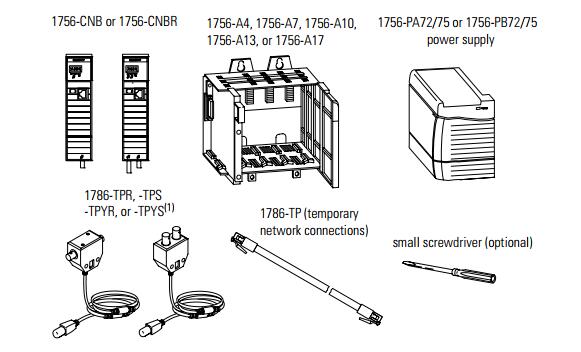

2. Have all of the necessary components shown below:
3. Know the type of ControlNet network:
There are two types of scheduled traffic networks for
ControlNet: single-keeper networks and multi-keeper
networks.
You must match the keeper to the type of network, or upgrade
the firmware of the module at MAC ID 01 to be multi-keeper
capable. Refer to the ControlLogix ControlNet Interface
Module User Manual, publication 1756-6.5.3, for more
information.
